How to Properly Install Cabinet Drawers

When it comes to installing cabinet drawers, it's important to follow the proper steps to ensure a successful installation. Here is a step-by-step guide on how to install cabinet drawers effectively:

1. Installing the Guide Rail: Start by measuring the length and height of the drawer. Use an ink line to mark the measured size on the wooden board. Then, secure the screws of the guide rail into the corresponding screw holes. It is crucial to fix both sides of the guide rail to avoid any installation issues. Once the guide rail is securely fixed, place the drawer into the rail and test to see if the installation is successful. Remember, selecting a high-quality guide rail is essential as it directly affects the load-bearing capacity and longevity of the drawer. Take your time to choose the right guide rail for your cabinet drawers.

How to Properly Install Kitchen Drawers

Installing drawer slide rails requires attention to detail. Follow these steps for a successful installation:

1. Assembling the Drawer: Begin by assembling the five boards of the drawer. Secure them with screws. The drawer panel should have a card slot and two small holes in the middle for installing the handle.

2. Installing the Drawer Slide Rails: Start by disassembling the rails. Narrow ones should be installed on the drawer side panels, while wider ones are for the cabinet body. Make sure to distinguish between the front and back of the rails.

3. Installing the Cabinet Body: Begin by screwing the white plastic hole to the side panel of the cabinet body. Next, install the wider track that was removed earlier. Secure the slide rail with two small screws, making sure to install and fix both sides of the body.

Precautions for Installing Drawer Slide Rails

Proper precautions can ensure a smooth installation process:

1. Choosing the Right Size: The length of the slide rail should match the length of the drawer. If the rail is too short, the drawer won't open and close properly. If it's too long, it may cause installation complications.

2. Disassembly and Installation: Understanding how to disassemble the drawer slides can make the installation process easier. By following the reverse steps of disassembly, you can install the slides correctly.

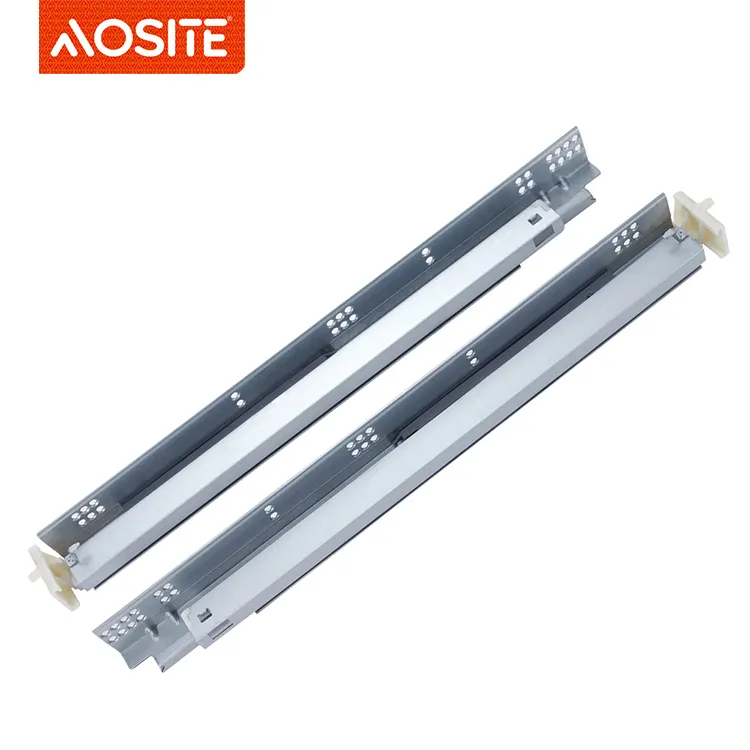

Understanding the Components of Drawer Slides

Before installation, familiarize yourself with the different parts of the drawer slides:

1. Movable Rail and Inner Rail: These are the smallest parts of the drawer slide rail.

2. Middle Rail: This is the middle part of the slide rail.

3. Fixed Rail: This outer rail is the end part of the drawer slide.

Steps for Installing Drawer Slides

Follow these steps for a successful installation:

1. Remove the Inner Rails: Before installation, disassemble the inner rails of the drawer slides. The outer rail and middle rail do not need to be disassembled. Unbuckle the circlip of the inner rail and carefully remove it.

2. Install the Main Body of the Drawer Slide: Attach the main body of the slide rail to the side of the cabinet body. Look for pre-made installation holes on the side panel of the furniture. It's best to install the main body before assembling the furniture.

3. Install the Inner Rail of the Drawer Slide: Use an electric screw drill to install the inner rail of the slide rail on the outside of the drawer. There are spare holes on the inner rail for adjusting the front and rear positions of the drawer.

4. Connect the Drawer Rails: The final step is to embed the drawer into the cabinet body. Press the snap springs on both sides of the inner rail and align the main body of the slide rail to slide it parallel into the cabinet body.
