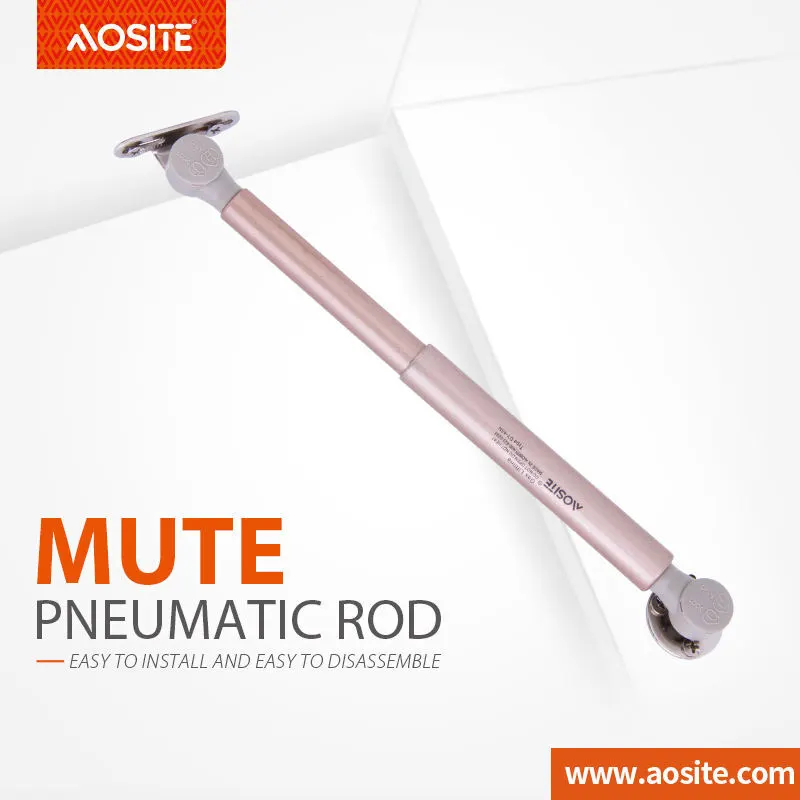

Free Stop Gas Spring For Kitchen Cabinet 1
Free Stop Gas Spring For Kitchen Cabinet 2
Free Stop Gas Spring For Kitchen Cabinet 3
Free Stop Gas Spring For Kitchen Cabinet 4
Free Stop Gas Spring For Kitchen Cabinet 5
Free Stop Gas Spring For Kitchen Cabinet 6
Free Stop Gas Spring For Kitchen Cabinet 7
Free Stop Gas Spring For Kitchen Cabinet 1
Free Stop Gas Spring For Kitchen Cabinet 2
Free Stop Gas Spring For Kitchen Cabinet 3
Free Stop Gas Spring For Kitchen Cabinet 4
Free Stop Gas Spring For Kitchen Cabinet 5
Free Stop Gas Spring For Kitchen Cabinet 6
Free Stop Gas Spring For Kitchen Cabinet 7

Free Stop Gas Spring For Kitchen Cabinet

Advantages of Aosite Gas Springs Broad selection of sizes, force variants, and end fittings Compact design, small space requirement Fast and easy assembly Flat spring characteristic curve:low force increase, even for high forces or large strokes Linear, progressive, or degressive spring...
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.

    oops...!

    no product data.

    Go to homepage

    Free Stop Gas Spring For Kitchen Cabinet 8Free Stop Gas Spring For Kitchen Cabinet 9Free Stop Gas Spring For Kitchen Cabinet 10

    Advantages of Aosite Gas Springs

    Broad selection of sizes, force variants, and end fittings

    Compact design, small space requirement

    Fast and easy assembly

    Flat spring characteristic curve:low force increase, even for high forces or large strokes

    Linear, progressive, or degressive spring characteristic curve

    Variable locking mechanism (product-specific)

    End position lock (extended and compressed)


    Gas spring structure

    The gas spring consists of a pressure tube and a piston rod with a piston assembly. The connection between the pressure pipe and the piston rod ensures correct connection according to your specific application. The core component of the air spring is a special sealing and guiding system. Even under extreme environmental conditions, it can ensure the airtight sealing of the inner cavity with less friction.


    Gas Springs offer Solutions for any Requirements

    Are you also looking for a convenient solution with gas springs for your application? We can provide you with the right product. You can select one from our broad product lines, or let us develop a suitable solution for your individual application. We will gladly support you as a competent, experienced partner.

    Free Stop Gas Spring For Kitchen Cabinet 11Free Stop Gas Spring For Kitchen Cabinet 12

    Free Stop Gas Spring For Kitchen Cabinet 13Free Stop Gas Spring For Kitchen Cabinet 14

    Free Stop Gas Spring For Kitchen Cabinet 15Free Stop Gas Spring For Kitchen Cabinet 16

    Free Stop Gas Spring For Kitchen Cabinet 17Free Stop Gas Spring For Kitchen Cabinet 18

    Free Stop Gas Spring For Kitchen Cabinet 19Free Stop Gas Spring For Kitchen Cabinet 20

    Free Stop Gas Spring For Kitchen Cabinet 21Free Stop Gas Spring For Kitchen Cabinet 22Free Stop Gas Spring For Kitchen Cabinet 23Free Stop Gas Spring For Kitchen Cabinet 24Free Stop Gas Spring For Kitchen Cabinet 25Free Stop Gas Spring For Kitchen Cabinet 26Free Stop Gas Spring For Kitchen Cabinet 27

    Free Stop Gas Spring For Kitchen Cabinet 28

    Free Stop Gas Spring For Kitchen Cabinet 29

    Free Stop Gas Spring For Kitchen Cabinet 30Free Stop Gas Spring For Kitchen Cabinet 31

    Free Stop Gas Spring For Kitchen Cabinet 32

    Free Stop Gas Spring For Kitchen Cabinet 33


    Free Stop Gas Spring For Kitchen Cabinet 34

    Free Stop Gas Spring For Kitchen Cabinet 35

    Free Stop Gas Spring For Kitchen Cabinet 36

    Force

    50N-150N

    Center to center

    245mm

    Stroke

    90mm

    Main material 20#

    20# Finishing tube, copper, plastic

    Pipe Finish

    Electroplating & healthy spray paint

    Rod Finish

    Ridgid Chromium-plated

    Optional Functions

    Standard up/ soft down/ free stop/ Hydraulic double step

    When the door of the cupboard is opened or closed, the most important parts are hinges and air supports. Most users don't know about the air supports. Today, I'd like to introduce the working principle of cupboard air support.


    1、 What is cabinet air support


    Cabinet air support is used for cabinet component movement, lifting, support, gravity balance and mechanical spring instead of sophisticated equipment. It has been widely used in woodworking machinery. Pneumatic series gas spring is driven by high pressure inert gas, the supporting force is constant in the whole working stroke, and has a buffer mechanism to avoid the impact in place, which is the biggest feature superior to ordinary spring, and has the advantages of convenient installation, safe use and no maintenance.


    2、 How it works


    The iron pipe is filled with high pressure gas, and there is a through hole on the moving piston to ensure that the pressure in the whole iron pipe will not change with the movement of the piston. The force of the pneumatic support rod is mainly the pressure difference between the iron pipe and the external atmospheric pressure acting on the cross section of the piston rod. The pneumatic support rod is driven by high pressure inert gas, and the support force is stable in the whole working stroke. It also has a buffer mechanism to avoid the impact in place, which is the biggest feature superior to the ordinary support rod. And it has the advantages of convenient installation, safe use and no maintenance. Since the air pressure in the iron pipe is constant and the cross section of the piston rod is fixed, the force of the pneumatic support rod remains stable throughout the stroke.


    3、 Shopping skills


    Product appearance: the paint color and greasy level of the air support cylinder end of the cabinet, such as some poor quality air support manufacturers ignore these small problems. Professional air support manufacturers pay attention to every detail of the product, so they can pay attention to it when they choose. Whether there are pits or scratches on the appearance of the air support rod will damage the sealing device inside the cylinder when it is used, so that the air support will leak after a period of time, resulting in that the air support can not be used without pressure.

    PRODUCT DETAILS

    Free Stop Gas Spring For Kitchen Cabinet 37Free Stop Gas Spring For Kitchen Cabinet 38
    Free Stop Gas Spring For Kitchen Cabinet 39Free Stop Gas Spring For Kitchen Cabinet 40
    Free Stop Gas Spring For Kitchen Cabinet 41Free Stop Gas Spring For Kitchen Cabinet 42
    Free Stop Gas Spring For Kitchen Cabinet 43Free Stop Gas Spring For Kitchen Cabinet 44

    PRODUCT ITEM NO.

    AND USAGE

    Free Stop Gas Spring For Kitchen Cabinet 45

    C15-301

    Usage: turn on the steam-driven support

    Force Specifications: 50N-150N

    Application:make the right turn on the weight

    of wooden/aluminum frame doors reveal a

    steady rate slowly upward.

     C15-302

     Uses: Hydraulic next turn support

     Application: can the next turn wooden/aluminum

     door frame slow steady downward turn.


    Free Stop Gas Spring For Kitchen Cabinet 46

    C15-303

    Usage: turn on the steam-driven support of

    any stop

    Force Specifications: 50N-120N

    Application:make the right turn on the weight

    of wooden/ aluminum frame door 30°-90°

    between the opening angle of any intention to

    stay.

    C15-304

    Uses: Hydraulic Flip Support

    Force Specifications: 50N-150N

    Application: make the right turn on the weight of

    wooden/aluminum frame door slowly tilting

    upward, and 60°-90° in the angle created between

    the opening buffer.

    Free Stop Gas Spring For Kitchen Cabinet 47

    Free Stop Gas Spring For Kitchen Cabinet 48

    Free Stop Gas Spring For Kitchen Cabinet 49

    OUR SERVICE

    The service life is calculated by the number of times it can be fully expanded and contracted. Finally, the force value changes during the stroke. The ideal gas spring should keep the force value unchanged throughout the stroke. However, due to design and processing factors, the force value of the gas spring in the stroke inevitably changes.

    The magnitude of change is an important criterion for measuring a ring with good quality of gas spring. The smaller the magnitude of change, the better the quality of gas spring, and the worse the reverse.

    Free Stop Gas Spring For Kitchen Cabinet 50

    Free Stop Gas Spring For Kitchen Cabinet 51

    Free Stop Gas Spring For Kitchen Cabinet 52

    Free Stop Gas Spring For Kitchen Cabinet 53

    Free Stop Gas Spring For Kitchen Cabinet 54

    Free Stop Gas Spring For Kitchen Cabinet 55

    Free Stop Gas Spring For Kitchen Cabinet 56

    Free Stop Gas Spring For Kitchen Cabinet 57

    Free Stop Gas Spring For Kitchen Cabinet 58




    Free Stop Gas Spring For Kitchen Cabinet 59

    Free Stop Gas Spring For Kitchen Cabinet 60

    Product name: Free stop gas spring

    Thickness of panel: 16/19/22/26/28mm

    Panel 3D adjustment: +2mm

    Height of cabinet: 330-500mm

    Width of cabinet: 600-1200mm

    Material: Steel/plastic

    Finish: Nickel plating

    Applicable scope: Kitchen hardware

    Style: Modern


    Free Stop Gas Spring For Kitchen Cabinet 61

    Free Stop Gas Spring For Kitchen Cabinet 62

    Product features

    1. Perfect design for decorative cover

    Achieve beautiful installation design effect, save space with fusion cabinet inner wall


    2. Clip-on design

    Panels can be quick assemble & disassemble


    3. Free stop

    The cabinet door can stay at the unfolding angle freely from 30 to 90 degrees.


    4. Silent mechanical design

    The damping buffer makes the gas spring gently and silently flip up


    Advantages

    Advanced equipment, Superb Craftsmanship, High-Quality, considerate after-sales Service, Worldwide Recognition & Trust.


    Quality-Reliable Promise for you

    Multiple load-Bearing tests, 50,000 times trial tests, and high-strength anti-corrosion tests.


    Standard-make good to be better

    ISO9001 Quality Management System Authorization, Swiss SGS Quality Testing and CE Certification.


    Service-Promising Value You Can Get

    24-hour response mechanism

    1-to-1 all-round professional service


    INNOVATION-EMBRACE CHANGES

    Persist in the innovation leading, the development


    Free Stop Gas Spring For Kitchen Cabinet 63


    FAQS:

    1. What is your factory product range?

    Hinges, gas spring, ball bearing slide, under-mount drawer slide, metal drawer box, handle.


    2. Do you provide samples? Is it free or extra?

    Yes, we provide free samples.


    3. How long does the normal delivery time take?

    About 45 days.

    Free Stop Gas Spring For Kitchen Cabinet 64

    Free Stop Gas Spring For Kitchen Cabinet 65

    Free Stop Gas Spring For Kitchen Cabinet 66

    Free Stop Gas Spring For Kitchen Cabinet 67

    Free Stop Gas Spring For Kitchen Cabinet 68

    Free Stop Gas Spring For Kitchen Cabinet 69

    Free Stop Gas Spring For Kitchen Cabinet 70

    Free Stop Gas Spring For Kitchen Cabinet 71


    PRODUCT OVERVIEW
    Free Stop Gas Spring For Kitchen Cabinet 72
    The cabinet gas spring is a reliable and convenient mechanism that allows for easy access and storage of your kitchen essentials. This versatile component effortlessly holds your cabinets open, allowing you to freely access and place items without the worry of them suddenly closing shut. Its intuitive design allows for ultimate convenience and flexibility, enabling you to position your cabinets in any desired location without the need for additional hardware or tools. Whether you are cooking up a storm or simply organizing your space, the cabinet gas spring provides a hassle-free solution that embodies the carefree essence of casual living.
    SPECIFICATIONS

    Product name

    Free Stop Gas Spring For Kitchen Cabinet

    Force

    20N-150N

    Center to center

    245mm

    Stroke

    90mm

    Main material

    20# Finishing tube, copper, plastic

    Pipe Finish

    Electroplating & healthy spray paint

    Rod Finish

    Chromium-plated

    Optional Functions

    Standard up/ soft down/ free stop/ Hydraulic double step

    PRODUCT FEATURES
    图片2 (24)
    Refined copper guide
    Superb process copper guide,ensure life more than 50,000 times
    图片3 (25)
    Healthy spray paint surface
    Ingenuity design,the use of advanced environmental spray paint surface treatment,to ensure that no harmful substances to human body
    图片4 (24)
    Durable double loop power
    Double ring dynamic structure is adopted inside the gas support.The operation is perfect,mute and service life.Also greatly improved
    图片5 (25)
    Easy dismantling head
    Combination of installation and disassembly method,simple installation,easy disassembly,even if it is the first time to buy people will be easy to start

    CERTIFICATE
    1 (53)
    1 (53)
    2 (51)
    2 (51)
    3 (47)
    3 (47)
    4 (33)
    4 (33)
    2 (17)
    2 (17)
    3 (13)
    3 (13)
    INSTALLATION
    图片6 (22)
    图片6 (22)
    图片7 (18)
    图片7 (18)
    PRODUCT PACKAGING
    图片8 (8)
    图片8 (8)
    图片9 (4)
    图片9 (4)
    图片10 (4)
    图片10 (4)

    FAQ
    1
    What is your factory product range?
    Hinges, Gas spring, Tatami system, Ball bearing slide, Handles
    2
    Do you provide samples? Is it free or extra?
    Yes, we provide free samples
    3
    How long does the normal delivery time take?
    About 45 days
    4
    What kind of payments does support?
    T/T
    5
    Do you offer ODM services?
    Yes, ODM is welcome
    6
    How long is the shelf life of your products?
    More than 3 years
    7
    Where is your factory, can we visit it?
    Jinsheng Industry Park, Jini Town, Gaoyao District, Zhaoqing, Guangdong, China
