Model Number:C1-301
Force: 50N-200N
Center to center: 245mm
Stroke: 90mm
Main material 20#: 20# Finishing tube, copper, plastic
Pipe Finish: Electroplating & healthy spray paint
Rod Finish: Ridgid Chromium-plated
Optional Functions: Standard up/ soft down/ free stop/ Hydraulic double step
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Standard up/ soft down/ free stop/ Hydraulic double step
C1 Hydraulic air pump
*Strong bearing capacity
*sturdy and durable
*Lightweight and labor-saving
*Average speed mute
Gas Spring are popular with clients for it’s superior quality ,with strength of protect the cabinet door, specialized for Kitchen cabinet, Toy box, various of up and down cabinet doors. Our gas spring include free stop, hydraulic double step, up and down open series. Such as item C1-305,gas spring with cover, it can enhance the ability of stainless. Different size and color are alternative.
Regarding the maintenance of gas springs, we also need to pay attention to the following points: 1. Choose a reasonable size and a suitable force. 2. Sharp or hard objects are not allowed to scratch the product surface, which will cause oil leakage and air leakage. 3. When opening and closing the cabinet door, avoid overexerting to prevent the gas spring from being damaged due to excessive pulling. 4. Keep dry and try to avoid being in humid air.
A: Jinsheng Industry Park, Jinli Town, Gaoyao District, Zhaoqing, Guangdong, China. Welcome to visit the factory at anytime.
Force
50N-150N
Center to center
245mm
Stroke
90mm
Main material 20#
20# Finishing tube, copper, plastic
Pipe Finish
Electroplating & healthy spray paint
Rod Finish
Ridgid Chromium-plated
Optional Functions
Standard up/ soft down/ free stop/ Hydraulic double step
When the door of the cupboard is opened or closed, the most important parts are hinges and air supports. Most users don't know about the air supports. Today, I'd like to introduce the working principle of cupboard air support.
1、 What is cabinet air support
Cabinet air support is used for cabinet component movement, lifting, support, gravity balance and mechanical spring instead of sophisticated equipment. It has been widely used in woodworking machinery. Pneumatic series gas spring is driven by high pressure inert gas, the supporting force is constant in the whole working stroke, and has a buffer mechanism to avoid the impact in place, which is the biggest feature superior to ordinary spring, and has the advantages of convenient installation, safe use and no maintenance.
2、 How it works
The iron pipe is filled with high pressure gas, and there is a through hole on the moving piston to ensure that the pressure in the whole iron pipe will not change with the movement of the piston. The force of the pneumatic support rod is mainly the pressure difference between the iron pipe and the external atmospheric pressure acting on the cross section of the piston rod. The pneumatic support rod is driven by high pressure inert gas, and the support force is stable in the whole working stroke. It also has a buffer mechanism to avoid the impact in place, which is the biggest feature superior to the ordinary support rod. And it has the advantages of convenient installation, safe use and no maintenance. Since the air pressure in the iron pipe is constant and the cross section of the piston rod is fixed, the force of the pneumatic support rod remains stable throughout the stroke.
3、 Shopping skills
Product appearance: the paint color and greasy level of the air support cylinder end of the cabinet, such as some poor quality air support manufacturers ignore these small problems. Professional air support manufacturers pay attention to every detail of the product, so they can pay attention to it when they choose. Whether there are pits or scratches on the appearance of the air support rod will damage the sealing device inside the cylinder when it is used, so that the air support will leak after a period of time, resulting in that the air support can not be used without pressure.
PRODUCT DETAILS
PRODUCT ITEM NO.
AND USAGE
C15-301
Usage: turn on the steam-driven support
Force Specifications: 50N-150N
Application:make the right turn on the weight
of wooden/aluminum frame doors reveal a
steady rate slowly upward.
C15-302
Uses: Hydraulic next turn support
Application: can the next turn wooden/aluminum
door frame slow steady downward turn.
C15-303
Usage: turn on the steam-driven support of
any stop
Force Specifications: 50N-120N
Application:make the right turn on the weight
of wooden/ aluminum frame door 30°-90°
between the opening angle of any intention to
stay.
C15-304
Uses: Hydraulic Flip Support
Force Specifications: 50N-150N
Application: make the right turn on the weight of
wooden/aluminum frame door slowly tilting
upward, and 60°-90° in the angle created between
the opening buffer.
OUR SERVICE
The service life is calculated by the number of times it can be fully expanded and contracted. Finally, the force value changes during the stroke. The ideal gas spring should keep the force value unchanged throughout the stroke. However, due to design and processing factors, the force value of the gas spring in the stroke inevitably changes.
The magnitude of change is an important criterion for measuring a ring with good quality of gas spring. The smaller the magnitude of change, the better the quality of gas spring, and the worse the reverse.
Product name: Free stop gas spring
Thickness of panel: 16/19/22/26/28mm
Panel 3D adjustment: +2mm
Height of cabinet: 330-500mm
Width of cabinet: 600-1200mm
Material: Steel/plastic
Finish: Nickel plating
Applicable scope: Kitchen hardware
Style: Modern
Product features
1. Perfect design for decorative cover
Achieve beautiful installation design effect, save space with fusion cabinet inner wall
2. Clip-on design
Panels can be quick assemble & disassemble
3. Free stop
The cabinet door can stay at the unfolding angle freely from 30 to 90 degrees.
4. Silent mechanical design
The damping buffer makes the gas spring gently and silently flip up
Multiple load-Bearing tests, 50,000 times trial tests, and high-strength anti-corrosion tests.
Standard-make good to be better
ISO9001 Quality Management System Authorization, Swiss SGS Quality Testing and CE Certification.
Service-Promising Value You Can Get
24-hour response mechanism
1-to-1 all-round professional service
INNOVATION-EMBRACE CHANGES
Persist in the innovation leading, the development
FAQS:
1. What is your factory product range?
Hinges, gas spring, ball bearing slide, under-mount drawer slide, metal drawer box, handle.
2. Do you provide samples? Is it free or extra?
Yes, we provide free samples.
3. How long does the normal delivery time take?
About 45 days.
PRODUCT OVERVIEW
The Soft Up Gas Spring is a revolutionary mechanism specifically designed for cabinet doors. Its unique feature of stopping at any position adds to its practicality, making it an ideal choice for doors of any size or weight. The gas spring mechanism ensures a smooth and silent opening and closing action, while the soft-closing feature prevents door slamming, making it an ideal option for homes with children and pets. The Soft Up Ga sSpring is easy to install, and its durable construction ensures long-lasting performance, providing the user with a seamless and effortless experience when operating their cabinet doors.
SPECIFICATIONS
Product name
Free Stop Gas Spring For Furniture Cabinet
Force
20N-150N
Center to center
245mm
Stroke
90mm
Main material
20# Finishing tube, copper, plastic
Pipe Finish
Electroplating & healthy spray paint
Rod Finish
Chromium-plated
Optional Functions
Standard up/ soft down/ free stop/ Hydraulic double step
PRODUCT FEATURES
Refined copper guide
Superb process copper guide,ensure life more than 50,000 times

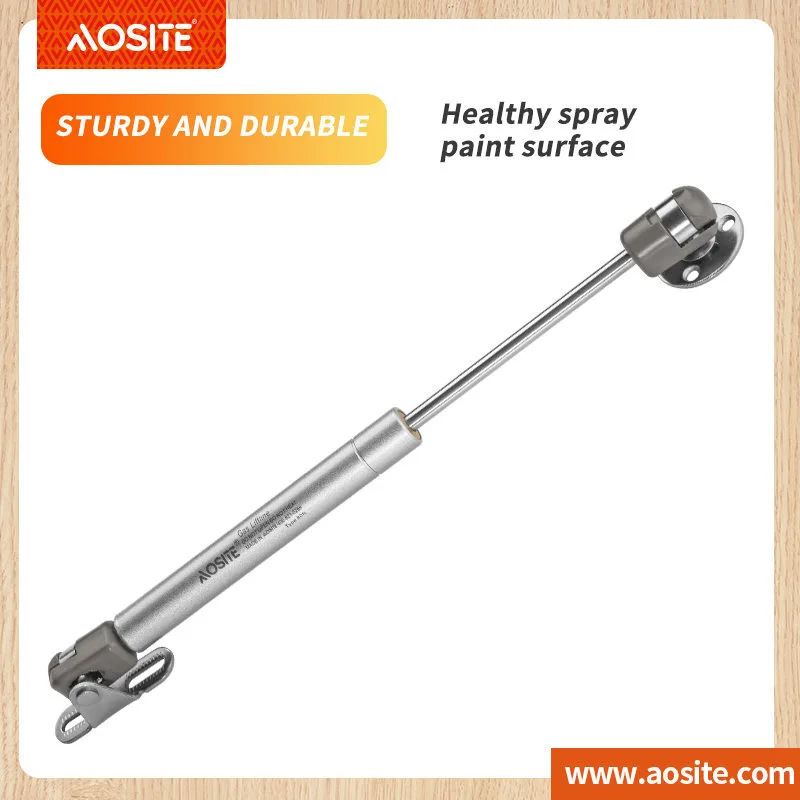

Healthy spray paint surface
Ingenuity design,the use of advanced environmental spray paint surface treatment,to ensure that no harmful substances to human body
Durable double loop power
Double ring dynamic structure is adopted inside the gas support.The operation is perfect,mute and service life.Also greatly improved
Easy dismantling head
Combination of installation and disassembly method,simple installation,easy disassembly,even if it is the first time to buy people will be easy to start
