Seft Close Hinges For Cabinets

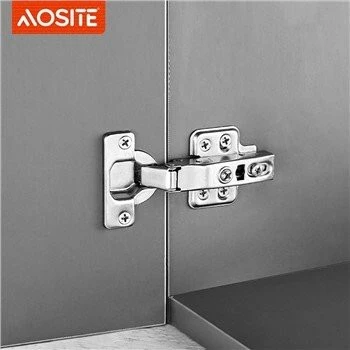

Products real shot

1. Nickel plating surface treatment

2. Fixed appearance design

3. The built-in damping

Product parameter

Product name: Seft close hinges for cabinets

Opening angle: 100°

Diameter of hinge cup: 35mm

Cover adjustment: 0-6mm

Depth adjustment: -3mm~+3mm

Base up and down adjustment: -2mm~+2mm

Door panel drilling size: 3-7mm

Applicable door thickness: 16-20mm

Hole distance: 48mm

Cup depth: 11.3mm

Inseparable hinge

Shown as diagram, put the hinge with base on the door fix the hinge on the door with screw. Then the assembling us done. Disassemble it by loosening locking screws. Shown as diagram.

Fixing hinge cup

Fixing by screws, use 2 chipboard screw to fix the hinge cup

Fixing by expending dowel, use fixing machine to fix the dowel

Fixing hinge base

By Euro-screw, use Euro-screws to fix the base

By expanding dowel, use fixing machine to fix the dowel into the hole
