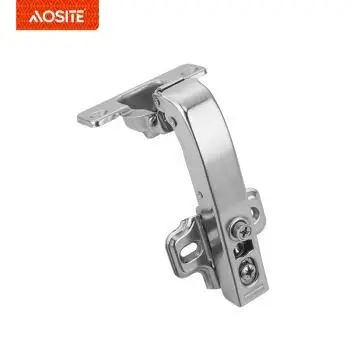

Wholesale 26mm Hydraulic Damper Hinge with Fixed Plate - Furniture Hardware Manufacturers
Type: Hydraulic Gas Spring for Kitchen & Bathroom Cabinet
Opening angle: 90°
Diameter of hinge cup: 35mm
Pipe Finish: Nickel plated
Main material: Cold-rolled steel
Our products are well received and praised by users, and are widely used in Kitchen Cabinet Drawer Slide, Tatami Cabinet Gas Spring, Reinforce Type Hinge. We will use international advanced technology and the best service to provide users with high-quality products. We will increase the development of new products, continue to explore new areas, as always adhere to the 'pursuit of excellence, sincere to forever' principle, dedicated to the majority of customers. We advocate a healthy and environmentally friendly lifestyle, and adhere to a timeless and persistent brand attitude.
|
Type |
Hydraulic Gas Spring for Kitchen & Bathroom Cabinet |
|
Opening angle |
90° |
|
Diameter of hinge cup |
35mm |
|
Pipe Finish |
Nickel plated |
|
Main material |
Cold-rolled steel |
|
Cover space adjustment |
0-5mm |
|
The depth adjustment |
-2mm/ +3.5mm |
|
Base adjustment (up/down) |
-2mm/ +2mm |
|
Articulation cup altitude |
11.3mm |
|
Door drilling size |
3-7mm |
|
Door thickness |
14-20mm |
PRODUCT DETAILS
|
|
TWO-DIMENSIONAL SCREW The adjustable screw is used for distance adjustment,so that both sides of the cabinet door can be more suitable. |
|
EXTRA THICK STEEL SHEET The thickness of hinge from us is double than current market,which can strengthen the service life of hinge. |
|
|
|
SUPERIOR CONNECTOR Adopting with high quality metal connector,not easy to damage. |
|
HYDRAULIC CYLINDER Hydraulic buffer makes a better effect of a quiet environment. |
|
|
What Is The Service Life Of Hinges? With proper use in daily life and proper maintenance measures, a hinge can open and close more than 80,000 times (about 10 years of use), still open and close smoothly, buffer and mute, and meet the long-term use of the family. |
INSTALLATION DIAGRAM
|
|
||
|
According to the installation data,drilling at the proper position of the door panel |
Installing the hinge cup. |
|
|
|
||
|
According to the ins tallation data,mounting base to connect the cabinet door. |
Adjust back screw to adapt door gap. |
Check opening and closing. |
Wining the majority from the crucial certifications of its market for 26mm Cup Damper Hinge with Fixed Plate China Damper Hinge Wholesale. Our people-oriented management principles are conducive to our stable, sustainable development. We also warmly welcome customers to visit our factory and purchase our products.
