High Quality 3D Hidden Door Hinge with Zinc Alloy Material and Silent Adjustable Design

We are one of the best suppliers for stainless steel drawer slides, china hinge, miniature hinge in China, and provide customers with satisfied service. We are proud of the fact that we have created true lasting partnerships with our customers. It is a core value of our company and a key element of what makes us successful in what we do. Our company directly faces the end customers and truly realizes the win-win situation between the company and the customers. The company's goal of 'surpassing ourselves and creating the future' is the common purpose of the subscriber.

Our common hinges are divided into buffer hinges and universal hinges. The cabinet door with ordinary hinges will be closed immediately when it is closed, because the cabinet body will make a lot of noise when colliding with the cabinet door. Long-term use will cause the hinges to deform or loosen and damage the cabinet door to varying degrees such as paint peeling and cracking.

The buffer hinge has a buffer function when the cabinet door is closed. The cabinet door will be closed slowly to reduce noise and damage to the cabinet door. If there are old people and children in the home, the accident of hand clipping of the cabinet door can be avoided.

After installation, the hinge can be adjusted for simple front-to-back distance between the door panel and the cabinet door. However, the height of the cover plate cannot be adjusted. If the hinge installation deviates from the normal size and is high or low during installation, fine adjustment cannot be performed. Therefore, the hinge belongs to 3D adjustable hinge.

How to adjust in three dimensions:

Front and rear adjustment: adjusting screws can change the clearance between the door panel and the side panel of the cabinet body

Left and right adjustment: adjusting screws can change the coverage of the door panel relative to the side panel of the cabinet body

Up and down adjustment: adjusting screw can correct the vertical and up and down clearance of door panel.

e the cabinet body will make a lot of noise when colliding with the cabinet door. Long-term use will cause the hinges to deform or loosen and damage the cabinet door to varying degrees such as paint peeling and cracking.

 The buffer hinge has a buffer function when the cabinet door is closed. The cabinet door will be closed slowly to reduce noise and damage to the cabinet door. If there are old people and children in the home, the accident of hand clipping of the cabinet door can be avoided.

After installation, the hinge can be adjusted for simple front-to-back distance between the door panel and the cabinet door. However, the height of the cover plate cannot be adjusted. If the hinge installation deviates from the normal size and is high or low during installation, fine adjustment cannot be performed. Therefore, the hinge belongs to 3D adjustable hinge.

How to adjust in three dimensions:

Front and rear adjustment: adjusting screws can change the clearance between the door panel and the side panel of the cabinet body

Left and right adjustment: adjusting screws can change the coverage of the door panel relative to the side panel of the cabinet body

Up and down adjustment: adjusting screw can correct the vertical and up and down clearance of door panel.

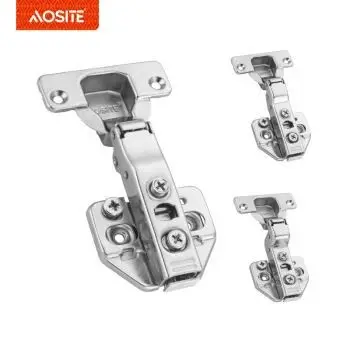

PRODUCT DETAILS

OPTIONAL HINGE HOLE DISTANCE PATTERN

	45mm Hole Distance 45mm Hole distance is the most common hinge cup pattern for European style hinges Almost all of the major Hinge manufacturers selling European style hings in including Blum, Salice, and Grass are with this hinge cup pattern Diameter of the hinge cup or "boss" that inserts into the cabinet door is 35mm Distance between screw ho for dowels) is 45mm Center of screws dowels) is 9. 5mm offset from the hinge cup center.
48mm Hole Distance 48mm Hole distance is the most common hinge cup pattern used by Chinese (imported) cabinet makers. This is also a common universal standard for other major Hinge manufacturers in areas outside North America, including Blum, salice, and Grass.These be very difficult to source as replacements in North America. it is recommended to switch to a more commonly cup type that case. Diameter of the hinge cup or "boss" that inserts into the cabinet door is 35mm. Distance between screw holes or dowels)s 48mm Center of screws (dowels) is 6mm offset from the hinge cup center.
	52mm Hole Distance 52mm Hole distance is a less common hinge cup pattern used by some cabinet makers, but it' s most popular in Korea market. This pattern is mainly for compatibility with some European hinge brands like Hettich and Mepla Diameter of the hinge cup or "boss" that inserts into the cabinet door is 35mm. Distance between screw holes/ dowels is 52mm. Center of screws (dowels) is 5.5mm offset from the hinge cup center.

3-Way Continuous Adjustment Zinc Alloy Super Heavy Duty Door Invisible Hinge /Silent Concealed Mechanical Intermediate 3D Hidden Door Hinge sells well in China and all over the world. Our company is customer-oriented and strive to meet customer requirements with satisfactory quality, innovative technology, complete varieties, reasonable suggestions and services. Based on the tenet of truth-seeking, innovation and steady progress, all employees of our company wholeheartedly provide first-class products and services to customers to achieve a win-win situation together.
