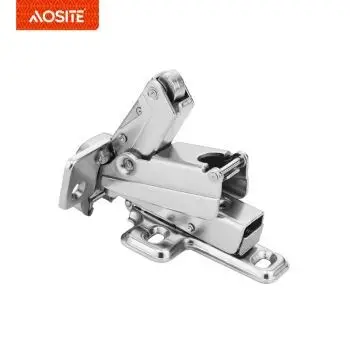

Premium Aluminum European Hinge for Casement Windows and Doors - Three-N0658 Model
Type: Clip-on Special-angel Hydraulic Damping Hinge
Opening angle: 165°
Diameter of hinge cup: 35mm
Scope: Cabinets, wood
Finish: Nickel plated
Main material: Cold-rolled steel
After years of sustainable development, our company has stood out from the Furniture Slide, Modern Handle, Furniture Gas Spring industry, and the products and services have won unanimous praise from customers. In the 21st century with fierce competition, we cherish the accomplishments we achieved even more. We Sincerely welcome clients from all around the entire world to visit us, with our multifaceted cooperation and get the job done with each other to develop new markets, build win-win outstanding future. We hope to create conditions conducive to the stable development of the enterprise by building up a warm and harmonious working environment. Your needs are the driving force of our growth, your affirmation is the cornerstone of our development, we are willing to grow together with you.
|
Type |
Clip-on Special-angel Hydraulic Damping Hinge |
|
Opening angle |
165° |
|
Diameter of hinge cup |
35mm |
|
Scope |
Cabinets, wood |
|
Finish |
Nickel plated |
|
Main material |
Cold-rolled steel |
|
Cover space adjustment |
0-5mm |
|
The depth adjustment |
-2mm/ +3.5mm |
|
Base adjustment (up/down) |
-2mm/ +2mm |
|
Articulation cup altitude |
11.3mm |
|
Door drilling size |
3-7mm |
|
Door thickness |
14-20mm |
PRODUCT DETAILS
|
|
TWO-DIMENSIONAL SCREW The adjustable screw is used for distance adjustment,so that both sides of the cabinet door can be more suitable. |
|
CLIP-ON HINGE Gently pressing the button then will remove the base,avoiding damage the cabinet doors by multiple installation and remove.Clip can be more easier to install and clean. |
|
|
|
SUPERIOR CONNECTOR Adopting with high quality metal connector,not easy to damage. |
|
HYDRAULIC CYLINDER Hydraulic buffer makes a better effect of a quiet environment. |
|
INSTALLATION
|
|
||
|
According to the installation data, drilling at the proper position of the door panel. |
Installing the hinge cup. |
|
|
|
||
|
According to the installation data, mounting base to connect the cabinet door. |
Adjust back screw to adapt door gap, check opening and closing. |
Opening hole in cabinet panel, drilling hole according to the drawing.
|
|
WHO ARE WE? AOSITE always adheres to the philosophy of "Artistic Creations, Intelligence in Home Making". It is dedicated to manufacturing excellent quality hardware with originality and creating comfortable homes with wisdom, letting countless of families enjoy the convenience, comfort, and joy brought by household hardware. |
Adhering to your principle of 'quality, assistance, performance and growth', we have now gained trusts and praises from domestic and international customer for Aluminum European Groove Casement Window and Door Hinge with Three-N0658. Our unique advantages provide a solid guarantee for providing customers with efficient, professional and comprehensive services, and increase our influence and brand awareness in the industry. How about to start your good organization with our corporation? We are all set, properly trained and fulfilled with pride.
