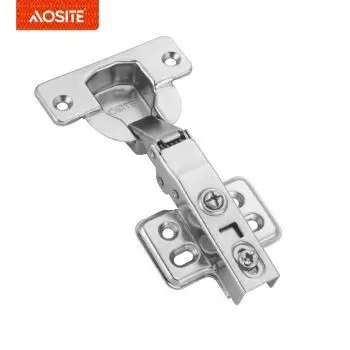

Inseparable Hydraulic Damping Cabinet Hinge - Soft Closing Furniture Hardware - Furniture Hardware Manufacturers
Type: Inseparable hydraulic damping hinge 40mm cup
Opening angle: 100°
Diameter of hinge cup: 35mm
Scope: Aluminum, Frame door
Pipe Finish: Nickel plated
Main material: Cold-rolled steel
Research and development and manufacture of high-quality aluminium kitchen cabinet handle, cabinet door handle, drawer slide china is our work, the creation and operation of the first brand is our goal, sincerely win customers with high-quality products and excellent service to expand product sales is our goal. We should strive to create our own unique product advantages and become the advanced brand preferred by customers. Reliable good quality and very good credit standing are our principles, which will help us at a top-ranking position. Our company's first-class product quality and exquisite technical service are well received by the majority of users.
|
Type |
Inseparable hydraulic damping hinge 40mm cup |
|
Opening angle |
100° |
|
Diameter of hinge cup |
35mm |
|
Scope |
Aluminum, Frame door |
|
Pipe Finish |
Nickel plated |
|
Main material |
Cold-rolled steel |
|
Cover space adjustment |
0-5mm |
|
The depth adjustment |
-2mm/+3mm |
|
Base adjustment (up/down) |
-2mm/+2mm |
|
Articulation cup altitude |
12.5mm |
|
Door drilling size |
1-9mm |
|
Door thickness |
16-27mm |
PRODUCT DETAILS
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
H=Height of mounting plate D=Required overlay on the side pane K=Distance between door edge and drilling holes on hinge cup A=Gap between door and side panel X=Gap between mounting plate and side panel |
Refer to the following formula to choose the arm of hinge, if you want to solve the problem, we must know "K" value, that's the distance drilling holes on the door and "H" value which is the height of mounting plate. |
