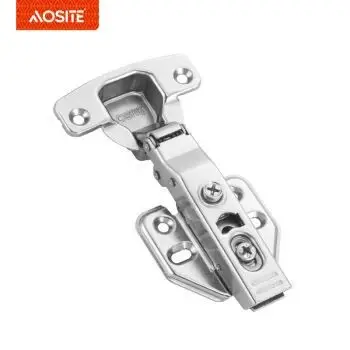

Soft-Closing Overlay Hinge with Hydraulic Damping: Two-Way, Furniture Hardware Manufacturers
Model number:AQ-862
Type: Clip on hydraulic damping hinge (two-way)
Opening angle: 110°
Diameter of hinge cup: 35mm
Scope: Cabinets, wood layman
Finish: Nickel plated and Copper plated
Main material: Cold-rolled steel
We strive for excellence, service the customers', hopes to become the best cooperation team and dominator enterprise for personnel, suppliers and customers, realizes value share and continuous promotion for Clip On Aluminum Damping Hinge, Furniture Hydraulic Hinge, Ordinary Hinge. Our company has always implemented a strict quality assurance system to satisfy customers with superb production levels and advanced management concepts. We are willing to provide you with 100% satisfactory service with excellent quality, advanced technology, cost-effective products, and a professional team. While creating more value for users, our company is committed to providing higher application requirements for different groups of users.
Type | Clip on hydraulic damping hinge(two-way) |
Opening angle | 110° |
Diameter of hinge cup | 35mm |
Scope | Cabinets, wood layman |
Finish | Nickel plated and Copper plated |
Main material | Cold-rolled steel |
Cover space adjustment | 0-5mm |
The depth adjustment | -3mm/+4mm |
Base adjustment(up/down) | -2mm/+2mm |
Articulation cup altitude | 12mm |
Door drilling size | 3-7mm |
Door thickness | 14-20mm |
PRODUCT ADVANTAGE: With removable plated. Good Anti-rust Ability. 48 Hours Salt-spray Test. FUNCTIONAL DESCRIPTION: The hinge has pass 48 hours salt spray test. It is strong rust resistance. Connecting parts through heat treatment, not easy to deformation. The plating process is 1.5μm copper plating and 1.5μm nickel plating. |
PRODUCT DETAILS
Two-dimensional screws | |
Booster arm | |
Clip-on plated | |
| 15° SOFT CLOSE | |
Diameter of hinge cup is 35mm |
WHO ARE WE? AOSITE supports basic hardware system to suit for different cabinet installations; It uses hydraulic damping technology to create a quiet household. AOSITE will be more innovative, making its greatest effort to establish itself as a leading brand in the field of household hardware in China! |
We always adhere to the business tenet of 'Quality First, Service Excellence', and use a complete business system to continue to provide users with high-quality AQ862 Clip on Hydraulic Damping Cabinet soft-closing overlay Hinge (two-way) and professional services. To acquire a consistent, profitable, and constant growth by getting a competitive advantage, and by continuously increasing the value added to our shareholders and our employee. Our company attaches great importance to the long-term brand image, highlighting the technical foresight of the products.
