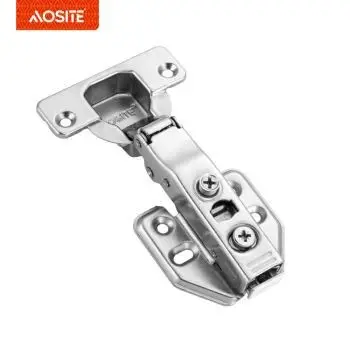

Clip-On Shifting Hinge: Auto Full Overlay Hydraulic Damping Cabinet Door Hinge (35mm) - Two Way, Furniture Hardware Manufacturers
Model number:A08E
Type: Clip on hydraulic damping hinge
Door thickness: 100°
Diameter of hinge cup: 35mm
Scope: Cabinets, wood layman
Pipe Finish: Nickel plated
Main material: Cold-rolled steel
We have many years of R&D and manufacturing experience in the field of Clip On Cabinet Hinge, Adjustable Cabinet Hinge, Fashion Handle, and can improve the most cost-effective products for you. We are based on long-term development and continuous innovation to develop more products to meet the development needs of technological innovation. With our faith, we are to create fortune for you. Trustworthy good quality and excellent credit score standing are our principles, which will help us at a top-ranking position.
Type | Clip on hydraulic damping hinge |
Door thickness | 100° |
Diameter of hinge cup | 35mm |
Scope | Cabinets, wood layman |
Pipe Finish | Nickel plated |
Main material | Cold-rolled steel |
Cover space adjustment | 0-5mm |
The depth adjustment | -2mm/+2mm |
Base adjustment (up/down) | -2mm/+2mm |
Articulation cup altitude | 12mm |
Door drilling size | 3-7mm |
Door thickness | 14-20mm |
Scope | Cabinets, Wood Layman |
Origin | Guangdong, China |
PRODUCT DETAILS
PRODUCTS STRUCTURE
Adjustng the door front/ back The size of the gap is regulated by screws. | Adjusting cover of door Left / right deviation screws adjust 0-5 mm. | ||
AOSITE logo A clear AOSITE anti-counterfeit LOGO is found in the plastic cup. | Blank pressing hinge cup The design can enable the operation between cabinet door and hinge more steady. | ||
Hydraulic damping system Unique closed function, ultra quiet. | Booster arm Extra thick steel increase the work ability and service life. | ||
QUICK INSTALLATION
According to the installation data, drilling at the proper position of door panel. | Install the hinge cup. | |
According to the installation data, mounting base to connect the cabinet door. | Adjust back screw to adapt door gap. | Check opening and closing. |
To create far more benefit for customers is our company philosophy; customer growing is our working chase for AQ866 iron Clip-on Shifting auto full overlay concealed Hydraulic damping 35mm Kitchen Cabinet door hinge (two way). And we had weed out suppliers with poor quality. Facing the future, we are full of confidence, and your support is your trust in us. We will meet the needs of global customers with cost-effective products, fast delivery and superior after-sales service.
