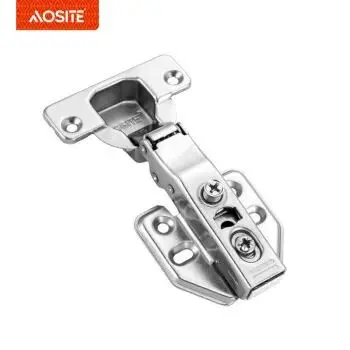

Adjustable Black Zinc Alloy 3D Concealed Door Hinge - Clip-On Furniture Hinge, Furniture Hardware Manufacturers

Type: Clip on hydraulic damping hinge
Opening angle: 100°
Diameter of hinge cup: 35mm
Pipe Finish: Nickel plated
Main material: Cold-rolled steel

Inquiry

We will initially maintain the business philosophy of quality and continue to provide our customers with superior door handle stainless steel, Luxury Slides, Full Extension Hidden Buffering Slide Rail. We are in a leading position in the industry and enjoy a high reputation among business partners. Our company always adheres to the principle of 'survive by quality, develop with service, win customers by profession' and keeps improving and keep pace with the times. Only by carrying forward the spirit of teamwork and jointly safeguarding the company's overall image can our business flourish.

Adjustable Black Zinc Alloy 3D Concealed Door Hinge - Clip-On Furniture Hinge, Furniture Hardware Manufacturers 2

Adjustable Black Zinc Alloy 3D Concealed Door Hinge - Clip-On Furniture Hinge, Furniture Hardware Manufacturers 3

Adjustable Black Zinc Alloy 3D Concealed Door Hinge - Clip-On Furniture Hinge, Furniture Hardware Manufacturers 4

Type	Clip on hydraulic damping hinge
Opening angle	100°
Diameter of hinge cup	35mm
Pipe Finish	Nickel plated
Main material	Cold-rolled steel
Cover space adjustment	0-5mm
The depth adjustment	-2mm/+3.5mm
Base adjustment (up/down)	-2mm/+2mm
Articulation cup altitude	12mm
Door drilling size	3-7mm
Door thickness	14-20mm

PRODUCT DETAILS

HOW TO CHOOSE
YOUR DOOR OVERLAYS

Adjustable Black Zinc Alloy 3D Concealed Door Hinge - Clip-On Furniture Hinge, Furniture Hardware Manufacturers 13

Full Overlay

This is the most common construction technique for cabinet doors.
You will be able to identify if your hinge is Full Overlay :
The Hinge Arm is relatively straight with no "hump" or "crank"
The Cabinet Door overlaps close to 100% on the cabinet side panel
The Cabinet Door does not share a side panel with any other cabinet door

Half Overlay

Much less common but used where space saving or material cost concerns are most important.
This technique uses the same side panel for two cabinets. To achieve this you would need a hinge that provides these features:
The Hinge Arm starts to bend inwards with a "crank" that offsets the door
The Cabinet Door only overlaps a bit less than 50% of the cabinet side panel
The Cabinet Door does not share a side panel with any other cabinet door

Adjustable Black Zinc Alloy 3D Concealed Door Hinge - Clip-On Furniture Hinge, Furniture Hardware Manufacturers 14

Adjustable Black Zinc Alloy 3D Concealed Door Hinge - Clip-On Furniture Hinge, Furniture Hardware Manufacturers 15

Inset/Embed

This is a technique of cabinet door production that allows the door to sit inside the cabinet box.
You will be able to identify that your hinges are Inset if:
The Hinge Arm is quite noticeably bent inwards or highly "cranked"
The Cabinet Door does not overlap with the side panel but sits inside

Adjustable Black Zinc Alloy 3D Concealed Door Hinge - Clip-On Furniture Hinge, Furniture Hardware Manufacturers 16

Adjustable Black Zinc Alloy 3D Concealed Door Hinge - Clip-On Furniture Hinge, Furniture Hardware Manufacturers 17

Adjustable Black Zinc Alloy 3D Concealed Door Hinge - Clip-On Furniture Hinge, Furniture Hardware Manufacturers 18

Adjustable Black Zinc Alloy 3D Concealed Door Hinge - Clip-On Furniture Hinge, Furniture Hardware Manufacturers 19

Adjustable Black Zinc Alloy 3D Concealed Door Hinge - Clip-On Furniture Hinge, Furniture Hardware Manufacturers 20

Adjustable Black Zinc Alloy 3D Concealed Door Hinge - Clip-On Furniture Hinge, Furniture Hardware Manufacturers 21

Adjustable Black Zinc Alloy 3D Concealed Door Hinge - Clip-On Furniture Hinge, Furniture Hardware Manufacturers 22

PRODUCT INSTALLATION

1. According to the installation data, drilling at the proper position of the door panel.

2. Installing the hinge cup.

3. According to the installation data, mounting base to connect the cabinet door.

4. Adjust back screw to adapt door gap, check opening and closing.

5. Check opening and closing.
