Hydraulic Concealed Soft Closing Cabinet Door Hinge by China Manufacturer

Our company will persevere, relying on superb technology, to provide customers with more and better keyboard drawer slides, Hinges For Furniture Doors, kitchen cabinet hinges suppliers. Continuously promote and publicize the market to improve the brand awareness and efficiency of the enterprise. We advocate dedication and devotion, and fulfill the responsibility of enterprise development.

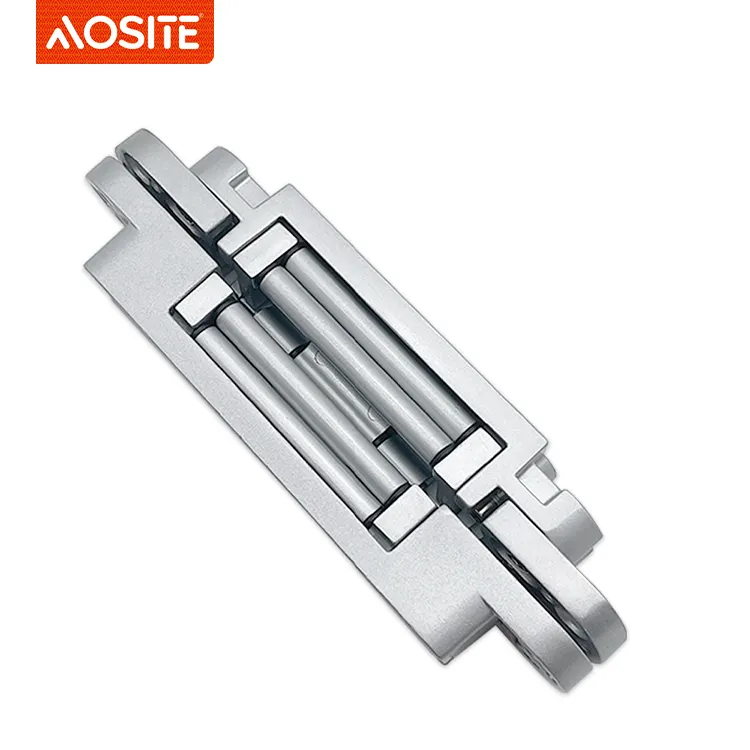

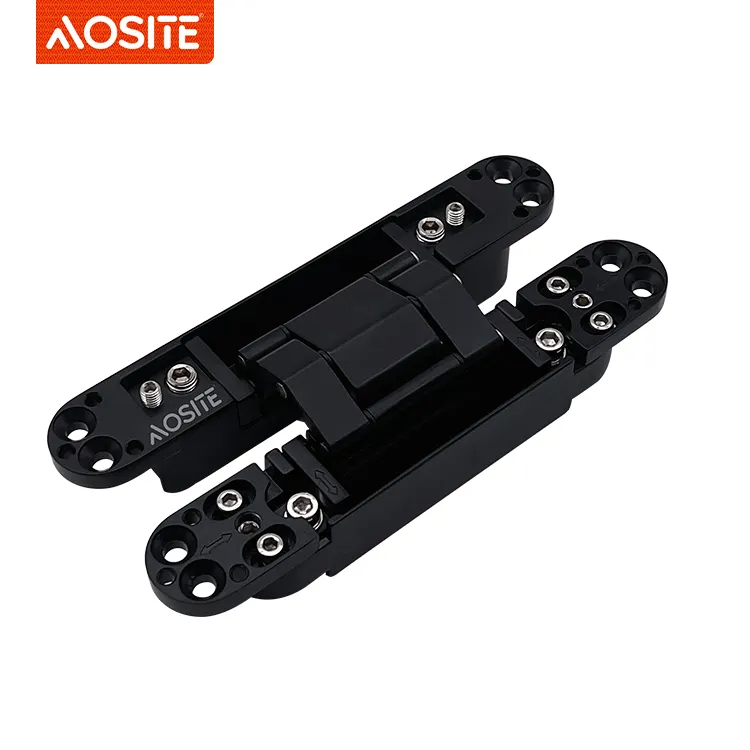

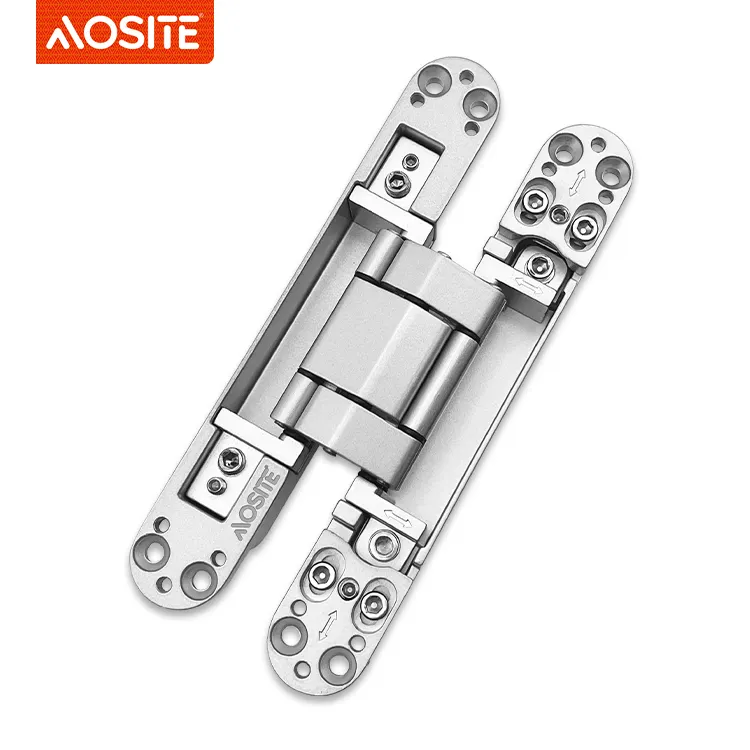

Product name: 3D concealed door hinge

Material: Zinc alloy

Installation method: Screw fixed

Front and back adjustment: ±1mm

Left and right adjustment: ±2mm

Up and down adjustment: ±3mm

Opening angle: 180°

Hinge length: 150mm/177mm

Loading capacity: 40kg/80kg

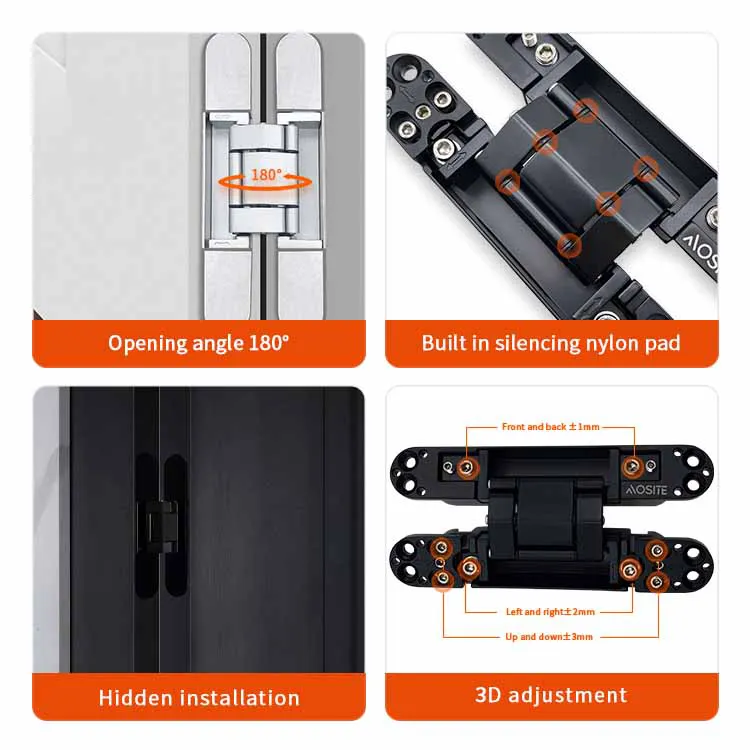

Features: Concealed installation, anti corrosion and wear resistance, small safety distance, anti pinch hand, common for left and right

Product features

a. Surface treatment

Nine-layer process, anti-corrosion and wear-resistant, longer service life

b. Built-in high-quality noise-absorbing nylon pad

Soft and silent opening and closing

c. Super loading capacity

Up to 40kg/80kg

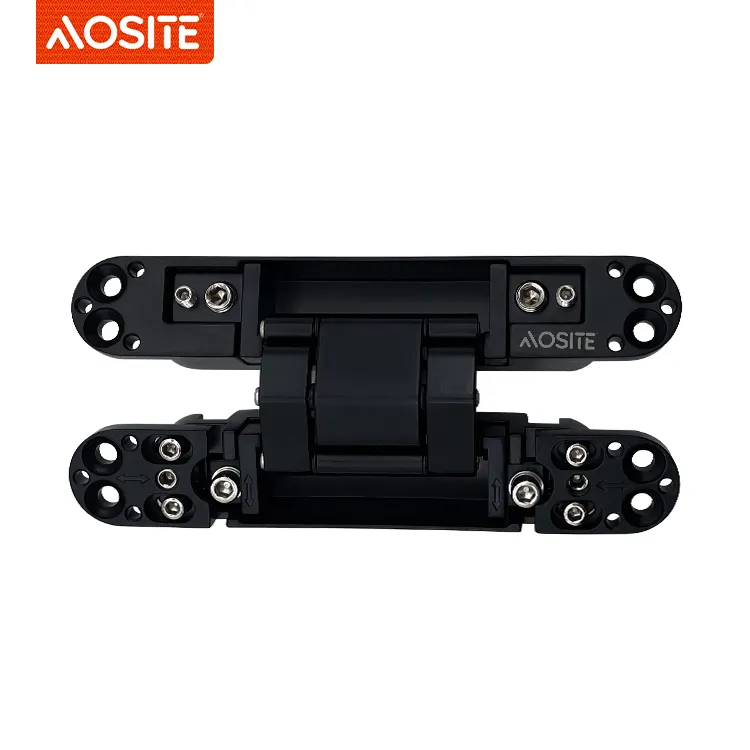

d. Three-dimensional adjustment

Precise and convenient, no need to dismantle the door panel

e. Four-axis thickened support arm

The force is uniform, and the maximum opening angle can reach 180 degrees

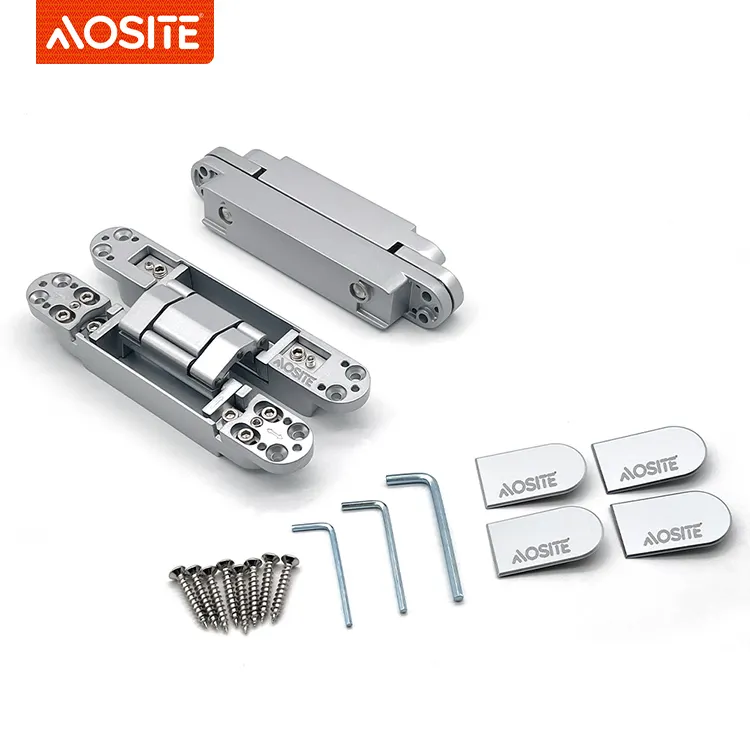

f. Screw hole cover design

Hidden screw holes, dust-proof and rust-proof

g. Two colors available: black/light grey

h. Neutral salt spray test

Passed the 48-hour neutral salt spray test and achieved grade 9 rust resistance

Aosite Hardware has always been considered that when the process and design is perfect, the charm of the hardware products is that everyone cannot refuse. In the future, Aosite Hardware will be more focused on product design, so that more excellent product philosophy have been manufactured through creative design and exquisite crafts, looking forward to each place in this world, some people can enjoy the value brought by our products.

We pursue the management tenet of 'Quality is remarkable, Company is supreme, Name is first', and will sincerely create and share success with all clientele for China Manufacturer Hydraulic Concealed Soft Closing Cabinet Door Hinge. We always keep the attitude of being prepared for danger, optimize the industrial structure, stabilize the quality of products, and accelerate the pace of transformation to a higher level of high-tech enterprises. Our company starts in many aspects such as welfare system development, staff appointment, training and personal development of employees, and strives to build a perfect development platform for employees to ensure that they can share the fruits of their own development.

PRODUCT DETAILS

	Two-dimensional screws adjusting the covers of the door
48mm cup hole distance
	Double nickel plated surface finished
Superior connectors

PRODUCT DETAILS

HOW TO CHOOSE
YOUR DOOR OVERLAYS

	Full Overlay   This is the most common construction technique for cabinet doors.  You will be able to identify if your hinge is Full Overlay : The Hinge Arm is relatively straight with no "hump" or "crank" The Cabinet Door overlaps close to 100% on the cabinet side panel The Cabinet Door does not share a side panel with any other cabinet door
Half Overlay   Much less common but used where space saving or material cost concerns are most important.  This technique uses the same side panel for two cabinets. To achieve this you would need a hinge that provides these features: The Hinge Arm starts to bend inwards with a "crank" that offsets the door The Cabinet Door only overlaps a bit less than 50% of the cabinet side panel The Cabinet Door does not share a side panel with any other cabinet door
	Inset/Embed   This is a technique of cabinet door production that allows the door to sit inside the cabinet box.  You will be able to identify that your hinges are Inset if: The Hinge Arm is quite noticeably bent inwards or highly "cranked" The Cabinet Door does not overlap with the side panel but sits inside

   PRODUCT INSTALLATION

1. According to the installation data, drilling at the proper position of the door panel.

2. Installing the hinge cup.

3. According to the installation data, mounting base to connect the cabinet door.

4. Adjust back screw to adapt door gap, check opening and closing.

5. Check opening and closing.

PRODUCT DETAILS

Solid Bearing 2 balls in a group opening smooth steadily, which can reduce the resistance.	Anti-Collision Rubber Super strong anti-collision rubber, keeping safety in opening and closing.
Proper Splitted Fastener Install and remove drawers through fastener, which is a bridge between slide and drawer.	Three Sections Extension Full extension improve the utilization of drawer space.
Extra Thickness Material Extra thickness steel is more durable and strong loading.	AOSITE Logo Clear logo printed, certified products giarantee from AOSITE.

When the door of the cupboard is opened or closed, the most important parts are hinges and air supports. Most users don't know about the air supports. Today, I'd like to introduce the working principle of cupboard air support.

1、 What is cabinet air support

Cabinet air support is used for cabinet component movement, lifting, support, gravity balance and mechanical spring instead of sophisticated equipment. It has been widely used in woodworking machinery. Pneumatic series gas spring is driven by high pressure inert gas, the supporting force is constant in the whole working stroke, and has a buffer mechanism to avoid the impact in place, which is the biggest feature superior to ordinary spring, and has the advantages of convenient installation, safe use and no maintenance.

2、 How it works

The iron pipe is filled with high pressure gas, and there is a through hole on the moving piston to ensure that the pressure in the whole iron pipe will not change with the movement of the piston. The force of the pneumatic support rod is mainly the pressure difference between the iron pipe and the external atmospheric pressure acting on the cross section of the piston rod. The pneumatic support rod is driven by high pressure inert gas, and the support force is stable in the whole working stroke. It also has a buffer mechanism to avoid the impact in place, which is the biggest feature superior to the ordinary support rod. And it has the advantages of convenient installation, safe use and no maintenance. Since the air pressure in the iron pipe is constant and the cross section of the piston rod is fixed, the force of the pneumatic support rod remains stable throughout the stroke.

3、 Shopping skills

Product appearance: the paint color and greasy level of the air support cylinder end of the cabinet, such as some poor quality air support manufacturers ignore these small problems. Professional air support manufacturers pay attention to every detail of the product, so they can pay attention to it when they choose. Whether there are pits or scratches on the appearance of the air support rod will damage the sealing device inside the cylinder when it is used, so that the air support will leak after a period of time, resulting in that the air support can not be used without pressure.

PRODUCT DETAILS

PRODUCT ITEM NO.

AND USAGE

C15-301 Usage: turn on the steam-driven support Force Specifications: 50N-150N Application:make the right turn on the weight of wooden/aluminum frame doors reveal a steady rate slowly upward.	C15-302  Uses: Hydraulic next turn support  Application: can the next turn wooden/aluminum   door frame slow steady downward turn.
C15-303 Usage: turn on the steam-driven support of any stop Force Specifications: 50N-120N Application:make the right turn on the weight of wooden/ aluminum frame door 30°-90° between the opening angle of any intention to stay.	C15-304 Uses: Hydraulic Flip Support Force Specifications: 50N-150N Application: make the right turn on the weight of wooden/aluminum frame door slowly tilting upward, and 60°-90° in the angle created between the opening buffer.

Product name: Free stop gas spring

Thickness of panel: 16/19/22/26/28mm

Panel 3D adjustment: +2mm

Height of cabinet: 330-500mm

Width of cabinet: 600-1200mm

Material: Steel/plastic

Finish: Nickel plating

Applicable scope: Kitchen hardware

Style: Modern

Product features

1. Perfect design for decorative cover

Achieve beautiful installation design effect, save space with fusion cabinet inner wall

2. Clip-on design

Panels can be quick assemble & disassemble

3. Free stop

The cabinet door can stay at the unfolding angle freely from 30 to 90 degrees.

4. Silent mechanical design

The damping buffer makes the gas spring gently and silently flip up

Advantages

Advanced equipment, Superb Craftsmanship, High-Quality, considerate after-sales Service, Worldwide Recognition & Trust.

Quality-Reliable Promise for you

Multiple load-Bearing tests, 50,000 times trial tests, and high-strength anti-corrosion tests.

Standard-make good to be better

ISO9001 Quality Management System Authorization, Swiss SGS Quality Testing and CE Certification.

Service-Promising Value You Can Get

24-hour response mechanism

1-to-1 all-round professional service

INNOVATION-EMBRACE CHANGES

Persist in the innovation leading, the development

FAQS:

1. What is your factory product range?

Hinges, gas spring, ball bearing slide, under-mount drawer slide, metal drawer box, handle.

2. Do you provide samples? Is it free or extra?

Yes, we provide free samples.

3. How long does the normal delivery time take?

About 45 days.
