Aosite, since 1993

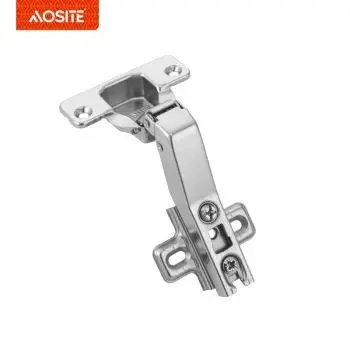

Adjustable 45° Angle Hydraulic Cabinet Hinges from Furniture Hardware Manufacturers 1
Adjustable 45° Angle Hydraulic Cabinet Hinges from Furniture Hardware Manufacturers 1

Adjustable 45° Angle Hydraulic Cabinet Hinges from Furniture Hardware Manufacturers

Type: Slide-on special-angle hinge (tow-way)
Opening angle: 45°
Diameter of hinge cup: 35mm
Finish: Nickel plated
Main material: Cold-rolled steel

Inquiry

For the future,we will keep devoting ourselves to improve our technologies and 3D Adjustable Damping Hinge, Clip-on 3d Adjustable Hydraulic Damping Hinge, Drawer Handle. We carry out a systematic product development work, and we continue to absorb fresh blood. We will always be in line with the 'customer-oriented, quality-oriented' business philosophy, improve management capabilities and product quality, continue to work with new and old customers to create a better future!

Adjustable 45° Angle Hydraulic Cabinet Hinges from Furniture Hardware Manufacturers 2

Adjustable 45° Angle Hydraulic Cabinet Hinges from Furniture Hardware Manufacturers 3

Adjustable 45° Angle Hydraulic Cabinet Hinges from Furniture Hardware Manufacturers 4

Type

Slide-on special-angle hinge (tow-way)

Opening angle

45°

Diameter of hinge cup

35mm

Finish

Nickel plated

Main material

Cold-rolled steel

Cover space adjustment

0-5mm

The depth adjustment

-2mm/ +3.5mm

Base adjustment (up/down)

-2mm/ +2mm

Articulation cup altitude

11.3mm

Door drilling size

3-7mm

Door thickness

14-20mm

Testing

SGS test


PRODUCT DETAILS

Adjustable 45° Angle Hydraulic Cabinet Hinges from Furniture Hardware Manufacturers 5Adjustable 45° Angle Hydraulic Cabinet Hinges from Furniture Hardware Manufacturers 6
Adjustable 45° Angle Hydraulic Cabinet Hinges from Furniture Hardware Manufacturers 7Adjustable 45° Angle Hydraulic Cabinet Hinges from Furniture Hardware Manufacturers 8
Adjustable 45° Angle Hydraulic Cabinet Hinges from Furniture Hardware Manufacturers 9Adjustable 45° Angle Hydraulic Cabinet Hinges from Furniture Hardware Manufacturers 10
Adjustable 45° Angle Hydraulic Cabinet Hinges from Furniture Hardware Manufacturers 11Adjustable 45° Angle Hydraulic Cabinet Hinges from Furniture Hardware Manufacturers 12


BT201 Slide On Special Angle Hinge (Two Way) 90°/45°

Adjustable 45° Angle Hydraulic Cabinet Hinges from Furniture Hardware Manufacturers 13Adjustable 45° Angle Hydraulic Cabinet Hinges from Furniture Hardware Manufacturers 14
Adjustable 45° Angle Hydraulic Cabinet Hinges from Furniture Hardware Manufacturers 15

Adjustng the door front/ back

The size of the gap is regulated by screws.

Adjustable 45° Angle Hydraulic Cabinet Hinges from Furniture Hardware Manufacturers 16

Adjusting cover of door

Left / right deviation screws

adjust 0-5 mm.

AOSITE logo

A clear AOSITE anti-counterfeit

 LOGO is found in the plastic cup.

Adjusting cover of door

Left / right deviation screws

adjust 0-5 mm.

Hydraulic damping system


Unique closed function, ultra quiet.

Booster arm

Extra thick steel increase the

 work ability and service life.



This type is self closing special angle hinge, having 30 /45/90 degree for your choice. About mounting plate we have both clip on and inseparable. Our standard Includes hinges, mounting plates. Screws and decorative cover caps are sold separately.

On the structural classification, it is divided into: common and according to the place of use. The basic types are: furniture hinges can be divided into direct insertion type and self-unloading type according to different installation combinations. The difference between the two types is that when the fixing screw of the hinge base is twisted, the fixed type cannot release the hinge arm part, while the self-unloading type can release the hinge arm separately. Among them, the self-unloading type can be divided into sliding type and clamping type. The sliding type can release the hinge arm effect by loosening the screw on the hinge arm, while the clamping type can release the hinge arm more easily by hand.


Adjustable 45° Angle Hydraulic Cabinet Hinges from Furniture Hardware Manufacturers 17

Adjustable 45° Angle Hydraulic Cabinet Hinges from Furniture Hardware Manufacturers 18

Adjustable 45° Angle Hydraulic Cabinet Hinges from Furniture Hardware Manufacturers 19

Adjustable 45° Angle Hydraulic Cabinet Hinges from Furniture Hardware Manufacturers 20

Adjustable 45° Angle Hydraulic Cabinet Hinges from Furniture Hardware Manufacturers 21

Adjustable 45° Angle Hydraulic Cabinet Hinges from Furniture Hardware Manufacturers 22

Adjustable 45° Angle Hydraulic Cabinet Hinges from Furniture Hardware Manufacturers 23

Adjustable 45° Angle Hydraulic Cabinet Hinges from Furniture Hardware Manufacturers 24

Adjustable 45° Angle Hydraulic Cabinet Hinges from Furniture Hardware Manufacturers 25

Adjustable 45° Angle Hydraulic Cabinet Hinges from Furniture Hardware Manufacturers 26

Adjustable 45° Angle Hydraulic Cabinet Hinges from Furniture Hardware Manufacturers 27


OUR SERVICE

1. OEM/ODM

2. Sample Order

3. Agency service

4. After-sales service

5. Agency market protection

6. 7X24 one-to-one customer service

7. Factory Tour

8. Exhibition subsidy

9. VIP customer shuttle

10. Material support (Layout design, display board, electronic picture album, poster)



Through the unremitting efforts of all employees, we continue to improve quality management to ensure that our Corner Adjustable Angle Normal 270 Degree Hydraulic Cabinet Hinges will always be a product trusted by customers. We try to thoroughly improve the production and working environment of customers and employees. If you have the requirement for virtually any of our items, make sure you call us now.
