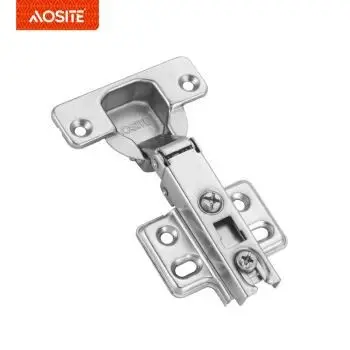

Furniture Hardware Manufacturers of E20 26mm Slide-On Mini Glass Hinge - Efficient Furniture Hardware Door Hinge

Type: Slide-on hinge (two-way)
Opening angle: 110°
Diameter of hinge cup: 35mm
Pipe Finish: Nickel plated
Main material: Cold-rolled steel

Inquiry

We have a mature process and modern management mode, and are committed to the development of Clip On Shifting Hinge, cabinet hinges soft close, Kitchen Cabinet Door Hinges market. We continue to improve professional services to meet various needs of customers. Unqualified products are determined not to leave the factory to ensure a 100% pass rate in our factory. We own strong manufacturing experience, meticulous research, continuous innovation of products, and market exploration.

Furniture Hardware Manufacturers of E20 26mm Slide-On Mini Glass Hinge - Efficient Furniture Hardware Door Hinge 2

B03 slide on furniture hinge

*two way

*free stop

*small angle buffer

*large angle open

HINGE HOLE DISTANCE PATTERN

48mm Hole distance is the most common hinge cup pattern used by Chinese (imported) cabinet makers. This is also a common universal standard for other major Hinge manufacturers in areas outside North America, including Blum, Salice, and Grass. These will be very difficult to source as replacements in North America. It is recommended to switch to a more commonly available cup type in that case.Diameter of the hinge cup or "boss" that inserts into the cabinet door is 35mm. Distance between screw holes (or dowels) is 48mm.Center of screws (dowels) is 6mm offset from the hinge cup center.

52mm Hole distance is a less common hinge cup pattern used by some cabinet makers,but it’s most popular in Korea market.This pattern is mainly for compatibility with some European hinge brands like Hettich and Mepla. Diameter of the hinge cup or "boss" that inserts into the cabinet door is 35mm.Distance between screw holes /dowels is 52mm. Center of screws (dowels) is 5.5mm offset from the hinge cup center.

Furniture Hardware Manufacturers of E20 26mm Slide-On Mini Glass Hinge - Efficient Furniture Hardware Door Hinge 3

Type	Slide-on hinge (two-way)
Opening angle	110°
Diameter of hinge cup	35mm
Pipe Finish	Nickel plated
Main material	Cold-rolled steel
Cover space adjustment	0-5mm
The depth adjustment	-2mm/+3.5mm
Base adjustment (up/down)	-2mm/+2mm
Articulation cup altitude	11.3mm
Door drilling size	3-7mm
Door thickness	14-20mm

B03 slide on furniture hinge

*two way

*free stop

*small angle buffer

*large angle open

HINGE HOLE DISTANCE PATTERN

PRODUCT DETAILS

Furniture Hardware Manufacturers of E20 26mm Slide-On Mini Glass Hinge - Efficient Furniture Hardware Door Hinge 12

Furniture Hardware Manufacturers of E20 26mm Slide-On Mini Glass Hinge - Efficient Furniture Hardware Door Hinge 13

Furniture Hardware Manufacturers of E20 26mm Slide-On Mini Glass Hinge - Efficient Furniture Hardware Door Hinge 14

Furniture Hardware Manufacturers of E20 26mm Slide-On Mini Glass Hinge - Efficient Furniture Hardware Door Hinge 15

Furniture Hardware Manufacturers of E20 26mm Slide-On Mini Glass Hinge - Efficient Furniture Hardware Door Hinge 16

Furniture Hardware Manufacturers of E20 26mm Slide-On Mini Glass Hinge - Efficient Furniture Hardware Door Hinge 17

Furniture Hardware Manufacturers of E20 26mm Slide-On Mini Glass Hinge - Efficient Furniture Hardware Door Hinge 18

Furniture Hardware Manufacturers of E20 26mm Slide-On Mini Glass Hinge - Efficient Furniture Hardware Door Hinge 19

Furniture Hardware Manufacturers of E20 26mm Slide-On Mini Glass Hinge - Efficient Furniture Hardware Door Hinge 20

FAQS

Q: What is your factory product range?

A: Hinges/ Gas spring/ Tatami system/ Ball bearing slide.

Q: Do you provide samples? Is it free or extra?

A: Yes, we provide free samples.

Q: How long does the normal delivery time take?

A: About 45 days.

Q: What kind of payments does support?

A: T/T.

Furniture Hardware Manufacturers of E20 26mm Slide-On Mini Glass Hinge - Efficient Furniture Hardware Door Hinge 21

Our company has now developed into a manufacturer of E20 26mm cup slide-on mini glass hinge Furniture Hardware door hinge with scientific management and mature technology. Our company has complete production and processing equipment, which can be equipped with the best quality and best service according to different product requirements, so as to realize the seamless connection between the company's operation center and customers and the implementation of rapid response. We adhere to meet the requirements of customers through the first-class quality, satisfactory service and continuous improvement of the quality concept.
