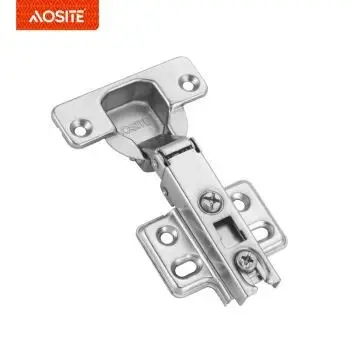

26mm Slide-On Mini Glass Hydraulic Hinge for Furniture Hardware - Furniture Hardware Manufacturers 1
26mm Slide-On Mini Glass Hydraulic Hinge for Furniture Hardware - Furniture Hardware Manufacturers 1

26mm Slide-On Mini Glass Hydraulic Hinge for Furniture Hardware - Furniture Hardware Manufacturers

Type: Slide-on hinge (two-way)
Opening angle: 110°
Diameter of hinge cup: 35mm
Pipe Finish: Nickel plated
Main material: Cold-rolled steel

Inquiry

We always put efforts on market management of Support Gas Spring, Slide On Two Way Hinge, Heavy Duty Drawer Slides, meanwhile, the quality is the stepping stone of one company. We sincerely ask for your unchanged support and appreciate your kind advice and guidance. We have always pursued the service tenet of 'Serving users with heart', constantly introducing new equipment and new technologies, developing and launching more and better products to meet the various needs of customers. Welcome to call to discuss business. Our company will make scientific and reasonable technical solutions for you with first-class service and professional technology according to your needs, so as to save more labor costs for users and provide stable and premium products to them. We are able to customize the solutions according to your needs and we can easily pack it for you when you purchase.

26mm Slide-On Mini Glass Hydraulic Hinge for Furniture Hardware - Furniture Hardware Manufacturers 2

B03 slide on furniture hinge

*two way

*free stop

*small angle buffer

*large angle open



HINGE HOLE DISTANCE PATTERN

48mm Hole distance is the most common hinge cup pattern used by Chinese (imported) cabinet makers. This is also a common universal standard for other major Hinge manufacturers in areas outside North America, including Blum, Salice, and Grass. These will be very difficult to source as replacements in North America. It is recommended to switch to a more commonly available cup type in that case.Diameter of the hinge cup or "boss" that inserts into the cabinet door is 35mm. Distance between screw holes (or dowels) is 48mm.Center of screws (dowels) is 6mm offset from the hinge cup center.



52mm Hole distance is a less common hinge cup pattern used by some cabinet makers,but it’s most popular in Korea market.This pattern is mainly for compatibility with some European hinge brands like Hettich and Mepla. Diameter of the hinge cup or "boss" that inserts into the cabinet door is 35mm.Distance between screw holes /dowels  is 52mm. Center of screws (dowels) is 5.5mm offset from the hinge cup center.

26mm Slide-On Mini Glass Hydraulic Hinge for Furniture Hardware - Furniture Hardware Manufacturers 3

Type

Slide-on hinge (two-way)

Opening angle

110°

Diameter of hinge cup

35mm

Pipe Finish

Nickel plated

Main material

Cold-rolled steel

Cover space adjustment

0-5mm

The depth adjustment

-2mm/+3.5mm

Base adjustment (up/down)

-2mm/+2mm

Articulation cup altitude

11.3mm

Door drilling size

3-7mm

Door thickness

14-20mm


B03 slide on furniture hinge

*two way

*free stop

*small angle buffer

*large angle open



HINGE HOLE DISTANCE PATTERN

48mm Hole distance is the most common hinge cup pattern used by Chinese (imported) cabinet makers. This is also a common universal standard for other major Hinge manufacturers in areas outside North America, including Blum, Salice, and Grass. These will be very difficult to source as replacements in North America. It is recommended to switch to a more commonly available cup type in that case.Diameter of the hinge cup or "boss" that inserts into the cabinet door is 35mm. Distance between screw holes (or dowels) is 48mm.Center of screws (dowels) is 6mm offset from the hinge cup center.



52mm Hole distance is a less common hinge cup pattern used by some cabinet makers,but it’s most popular in Korea market.This pattern is mainly for compatibility with some European hinge brands like Hettich and Mepla. Diameter of the hinge cup or "boss" that inserts into the cabinet door is 35mm.Distance between screw holes /dowels  is 52mm. Center of screws (dowels) is 5.5mm offset from the hinge cup center.



PRODUCT DETAILS

26mm Slide-On Mini Glass Hydraulic Hinge for Furniture Hardware - Furniture Hardware Manufacturers 426mm Slide-On Mini Glass Hydraulic Hinge for Furniture Hardware - Furniture Hardware Manufacturers 5
26mm Slide-On Mini Glass Hydraulic Hinge for Furniture Hardware - Furniture Hardware Manufacturers 626mm Slide-On Mini Glass Hydraulic Hinge for Furniture Hardware - Furniture Hardware Manufacturers 7
26mm Slide-On Mini Glass Hydraulic Hinge for Furniture Hardware - Furniture Hardware Manufacturers 826mm Slide-On Mini Glass Hydraulic Hinge for Furniture Hardware - Furniture Hardware Manufacturers 9
26mm Slide-On Mini Glass Hydraulic Hinge for Furniture Hardware - Furniture Hardware Manufacturers 1026mm Slide-On Mini Glass Hydraulic Hinge for Furniture Hardware - Furniture Hardware Manufacturers 11

26mm Slide-On Mini Glass Hydraulic Hinge for Furniture Hardware - Furniture Hardware Manufacturers 12

26mm Slide-On Mini Glass Hydraulic Hinge for Furniture Hardware - Furniture Hardware Manufacturers 13

26mm Slide-On Mini Glass Hydraulic Hinge for Furniture Hardware - Furniture Hardware Manufacturers 14

26mm Slide-On Mini Glass Hydraulic Hinge for Furniture Hardware - Furniture Hardware Manufacturers 15

26mm Slide-On Mini Glass Hydraulic Hinge for Furniture Hardware - Furniture Hardware Manufacturers 16

26mm Slide-On Mini Glass Hydraulic Hinge for Furniture Hardware - Furniture Hardware Manufacturers 17

26mm Slide-On Mini Glass Hydraulic Hinge for Furniture Hardware - Furniture Hardware Manufacturers 18

26mm Slide-On Mini Glass Hydraulic Hinge for Furniture Hardware - Furniture Hardware Manufacturers 19

26mm Slide-On Mini Glass Hydraulic Hinge for Furniture Hardware - Furniture Hardware Manufacturers 20


FAQS

Q: What is your factory product range?

A: Hinges/ Gas spring/ Tatami system/ Ball bearing slide.

Q: Do you provide samples? Is it free or extra?

A: Yes, we provide free samples.

Q: How long does the normal delivery time take?

A: About 45 days.

Q: What kind of payments does support?

A: T/T.


26mm Slide-On Mini Glass Hydraulic Hinge for Furniture Hardware - Furniture Hardware Manufacturers 21


We are a manufacturer with complete coverage of E20 26mm cup slide-on mini glass Hydraulic hinge Furniture Hardware door hinge on the market and have received a excellent reputation for the quality of product. We solemnly promise that we will continuously improve the service quality and satisfy customers while ensuring the advanced nature, reliability and stability of the equipment. Our strong production capacity and excellent market performance have won the appreciation of the industry.
