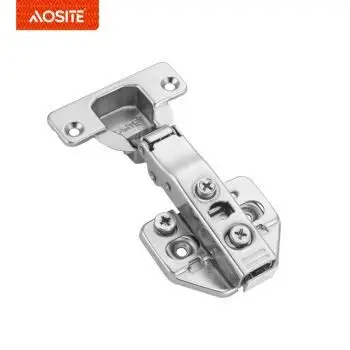

35mm Soft Close Cabinet Hinge: One Way Kitchen Cabinet Hinges - Furniture Hardware Manufacturers
Type: Clip on hydraulic damping hinge
Opening angle: 100°
Diameter of hinge cup: 35mm
Finish: Nickel plated
Main material: Cold-rolled steel
Since the establishment, our company has always practiced the concept of science-led development, accumulated experience in the Luxury Slides, Corner Cabinet Hinges, Three Fold Push Open Slide field, so as to provide users with high-quality and reliable products. The product performance has reached the international advanced level of similar products. This company insists on initial design concepts and innovative style purchasing. We have established faith, friendly, harmonious business relationship with customers in different countries.
Type | Clip on hydraulic damping hinge |
Opening angle | 100° |
Diameter of hinge cup | 35mm |
Finish | Nickel plated |
Main material | Cold-rolled steel |
Cover space adjustment | 0-5mm |
The depth adjustment | -2mm/+2mm |
Base adjustment (up/down) | -2mm/+2mm |
Articulation cup altitude | 12mm |
Door drilling size | 3-7mm |
Door thickness | 14-20mm |
HOW TO MAINTAIN THE HINGE? This requires us to pay attention to the following points: 1. If found loose hinge or door plank is not neat, should immediately use tools to tighten or adjust. 2. Sharp or hard articles shall not bump against the hinge surface during product use, which will easily scratch the plating layer and lead to rust. 3. When opening and closing the cabinet door, avoid overexerting to prevent the hinge from being violently impacted and affecting the service life of the product. |
PRODUCT DETAILS
MOUNTING-PLATE
NO | 1 | 2 | 3 |
Hole | Two holes | Four holes | Two holes |
H value | H=0/2 | H=0/2 | H=0/2 |
Mounting dimension | 37mm | 37mm | 37mm |
type | Clip on | Clip on | 3d Clip on |
ALTERNATIVE SCREW TYPES
*M8 dowel Specification: 8x10mm |
*M10 dowel Specification: 10x10mm |
Specification: 6.3x14mm | *Wood screw Specification: 4x16mm |
QUICK INSTALLATION
According to the installation data, drilling at the proper position of the door panel | Installing the hinge cup. | |
According to the installation data, mounting base to connect the cabinet door. | According to the installation data, mounting base to connect the cabinet door. | |
We are always ready to provide customers with thoughtful Furniture Accessories Soft Close Cabinet Hinge 35mm One Way Kitchen Cabinet Hinges solutions, products and services, and we can meet customer needs in a very short time. Our company takes the reputation as the guarantee, takes the synchronous development with the customer as the goal, sincerely expects to provide you with the good product price and the good service. Our company has always been taking customer satisfaction as the goal, with rich product production experience and pragmatic business model, it is favored by customers at home and abroad and constantly expand new market areas and market space.
