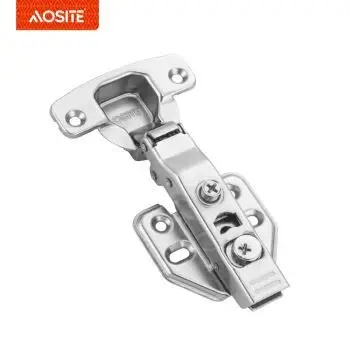

Stainless Steel Hydraulic Slide-on Hinge for Furniture Doors - Furniture Hardware Manufacturers
Type: Clip on hydraulic damping hinge (two-way)
Opening angle: 110°
Diameter of hinge cup: 35mm
Scope: Cabinets, wood layman
Finish: Nickel plated and Copper plated
Main material: Cold-rolled steel
We apply leading technology to every detail of the product, and develop diversified Slide On Furniture Hinge, Hinges For Furniture Doors, Furniture Tatami Lift with novel design and high cost performance. The pursuit of success is our persistence and responsibility for our cause, and it is our persevering belief. With the concept of continuous innovation, excellent quality, preferential price and satisfactory service, we will create a better future with friends from all walks of life.
Type | Clip on hydraulic damping hinge (two-way) |
Opening angle | 110° |
Diameter of hinge cup | 35mm |
Scope | Cabinets, wood layman |
Finish | Nickel plated and Copper plated |
Main material | Cold-rolled steel |
Cover space adjustment | 0-5mm |
The depth adjustment | -2mm/+2mm |
Base adjustment (up/down) | -2mm/+2mm |
Articulation cup altitude | 12mm |
Door drilling size | 3-7mm |
Door thickness | 14-20mm |
PRODUCT ADVANTAGE: Exclusive closing experience with emotional appeal. Perfected design. Engineered for easy use. FUNCTIONAL DESCRIPTION: AQ866 Furniture Hardware Hydraulic Hinge is meeting the demands of high-quality kitchens and furniture, it comes in a design that's modern and stylish. Unobtrusive contours from cup and cover caps to the mounting plates give the hinge a current, contemporary feel. PRECAUTIONS FOR USE: 1. Wipe gently with a dry soft cloth. Do not use chemical cleaner or acidic liquid for cleaning. If black spots difficult to remove are found on the surface, wipe with a little kerosene. 2. It is normal to make noise when using for a long time. In order to ensure the pulley to be smooth and silent for a long time, add lubricating oil regularly every 2-3 months for maintenance. 3. Heavy objects and sharp objects shall be prevented from hitting and scratching. 4. Avoid pulling hard and damaging hardware at furniture joints during handling. |
PRODUCT DETAILS
Integrated depth adjustment of 6mm | |
Cup diameter of 35mm with a cup depth of 12mm. | |
Clip-on concealed hinge with integrated soft-closing function. |
We always consider the needs of customers as our quest, and try our best to provide wholeheartedly high-quality Furniture Door Hardware Stainless Steel Hydraulic Slide on Hinge and first-rate services to customers at home and abroad to create a brighter future. Best Source will always stand ready to cooperate with you. Our company's new product research and development capabilities and product delivery capabilities are in the leading position, our testing, testing equipment and means are advanced and complete. Our production capacity and after-sales service capabilities continue to enhance, our company is gradually becoming a modern enterprise with standardized management.
