Aosite, since 1993

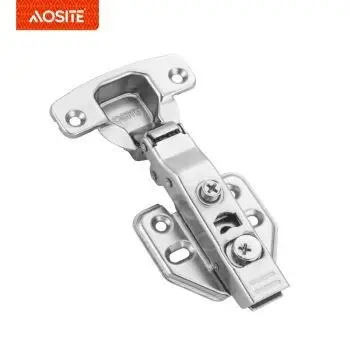

Hydraulic Hinge for Kitchen Cabinets: Soft Close Clip-on Function - High-Quality Furniture Hardware from Furniture Hardware Manufacturers 1
Hydraulic Hinge for Kitchen Cabinets: Soft Close Clip-on Function - High-Quality Furniture Hardware from Furniture Hardware Manufacturers 1

Hydraulic Hinge for Kitchen Cabinets: Soft Close Clip-on Function - High-Quality Furniture Hardware from Furniture Hardware Manufacturers

Type: Clip on hydraulic damping hinge (two-way)
Opening angle: 110°
Diameter of hinge cup: 35mm
Scope: Cabinets, wood layman
Finish: Nickel plated and Copper plated
Main material: Cold-rolled steel

Inquiry

With our faith, we are to make the Invisible Hinge, Ball Bearing Slides, Gas Lift high efficient. The company has many skilled technicians, and its strong technical force, strict quality management order, and professional production lines are the guarantee of our pursuit of high quality. Adhering to the tenet of 'quality first, reputation first, service first', we have won the recognition and praise of our customers.

Hydraulic Hinge for Kitchen Cabinets: Soft Close Clip-on Function - High-Quality Furniture Hardware from Furniture Hardware Manufacturers 2

Hydraulic Hinge for Kitchen Cabinets: Soft Close Clip-on Function - High-Quality Furniture Hardware from Furniture Hardware Manufacturers 3

Hydraulic Hinge for Kitchen Cabinets: Soft Close Clip-on Function - High-Quality Furniture Hardware from Furniture Hardware Manufacturers 4

Type

Clip on hydraulic damping hinge (two-way)

Opening angle

110°

Diameter of hinge cup

35mm

Scope

Cabinets, wood layman

Finish

Nickel plated and Copper plated

Main material

Cold-rolled steel

Cover space adjustment

0-5mm

The depth adjustment

-2mm/+2mm

Base adjustment (up/down)

-2mm/+2mm

Articulation cup altitude

12mm

Door drilling size

3-7mm

Door thickness

14-20mm


PRODUCT ADVANTAGE:

Exclusive closing experience with emotional appeal.

Perfected design.

Engineered for easy use.


FUNCTIONAL DESCRIPTION:

AQ866 Furniture Hardware Hydraulic Hinge is meeting the demands of high-quality kitchens and furniture, it comes in a design that's modern and stylish. Unobtrusive contours from cup and cover caps to the mounting plates give the hinge a current, contemporary feel.


PRECAUTIONS FOR USE:

1. Wipe gently with a dry soft cloth. Do not use chemical cleaner or acidic liquid for cleaning. If black spots difficult to remove are found on the surface, wipe with a little kerosene.

2. It is normal to make noise when using for a long time. In order to ensure the pulley to be smooth and silent for a long time, add lubricating oil regularly every 2-3 months for maintenance.

3. Heavy objects and sharp objects shall be prevented from hitting and scratching.

4. Avoid pulling hard and damaging hardware at furniture joints during handling.


PRODUCT DETAILS

Hydraulic Hinge for Kitchen Cabinets: Soft Close Clip-on Function - High-Quality Furniture Hardware from Furniture Hardware Manufacturers 5



Integrated depth adjustment of

6mm

Cup diameter of 35mm with a cup

depth of 12mm.

Hydraulic Hinge for Kitchen Cabinets: Soft Close Clip-on Function - High-Quality Furniture Hardware from Furniture Hardware Manufacturers 6
Hydraulic Hinge for Kitchen Cabinets: Soft Close Clip-on Function - High-Quality Furniture Hardware from Furniture Hardware Manufacturers 7


Clip-on concealed hinge with

integrated soft-closing function.


Hydraulic Hinge for Kitchen Cabinets: Soft Close Clip-on Function - High-Quality Furniture Hardware from Furniture Hardware Manufacturers 8

Hydraulic Hinge for Kitchen Cabinets: Soft Close Clip-on Function - High-Quality Furniture Hardware from Furniture Hardware Manufacturers 9

Hydraulic Hinge for Kitchen Cabinets: Soft Close Clip-on Function - High-Quality Furniture Hardware from Furniture Hardware Manufacturers 10

Hydraulic Hinge for Kitchen Cabinets: Soft Close Clip-on Function - High-Quality Furniture Hardware from Furniture Hardware Manufacturers 11

Hydraulic Hinge for Kitchen Cabinets: Soft Close Clip-on Function - High-Quality Furniture Hardware from Furniture Hardware Manufacturers 12

Hydraulic Hinge for Kitchen Cabinets: Soft Close Clip-on Function - High-Quality Furniture Hardware from Furniture Hardware Manufacturers 13

Hydraulic Hinge for Kitchen Cabinets: Soft Close Clip-on Function - High-Quality Furniture Hardware from Furniture Hardware Manufacturers 14

Hydraulic Hinge for Kitchen Cabinets: Soft Close Clip-on Function - High-Quality Furniture Hardware from Furniture Hardware Manufacturers 15

Hydraulic Hinge for Kitchen Cabinets: Soft Close Clip-on Function - High-Quality Furniture Hardware from Furniture Hardware Manufacturers 16

Hydraulic Hinge for Kitchen Cabinets: Soft Close Clip-on Function - High-Quality Furniture Hardware from Furniture Hardware Manufacturers 17

Hydraulic Hinge for Kitchen Cabinets: Soft Close Clip-on Function - High-Quality Furniture Hardware from Furniture Hardware Manufacturers 18


We are proud of the superior customer gratification and wide acceptance due to our persistent pursuit of top of the range both of those on merchandise and service for Furniture Hardware Kitchen Cabinet Soft Close Clip-on Hydraulic Hinge. The development of high technology and the realization of industrialization have become our steps towards modernity. Adhering to the concept of openness, tolerance, and work together, our employees are diverse and diligent, and each brings different skills, experience and unique perspectives.

Hot Tags: furniture hardware hydraulic hinge, China, manufacturers, suppliers, factory, wholesale, bulk, Ordinary Hinge, Aluminum Frame Damping Hinge, Slide On Hinge, Cabinet Slide, Tatami Cabinet Gas Spring, 3 Fold Drawer Slide
Contact us
we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
