Furniture Hardware Manufacturers Stainless Steel Cabinet Hinge - Glass to Glass Pivot Brass Shower Hinge 1
Furniture Hardware Manufacturers Stainless Steel Cabinet Hinge - Glass to Glass Pivot Brass Shower Hinge 1

Furniture Hardware Manufacturers Stainless Steel Cabinet Hinge - Glass to Glass Pivot Brass Shower Hinge

Type: Stainless Steel inseparable Hydraulic - damping hinge
Opening angle: 100°
Diameter of hinge cup: 35mm
Finish: Electrolysis
Main material: stainless steel

Inquiry

Our commitment is to provide the best Inseparable Cabinet Damping Hinge, cabinet drawer slide soft close, 40mm Hinge solutions and great value goods to clients through high quality products and service. We are establishing trust relationship with all business partners with 'high quality products and reasonable price'. We take the market as the guidance, take the service customer as the core value and realize the fast and stable development. We have established a close, flexible and reliable long-term partnership with our customers. Our perfect technical support and after-sales service solve the worries of users. Our company is committed to be the most competitive company in terms of quality and price, so as to serve the majority of dealers and customers. Our company has a group of excellent design, production, management and service talents, and always guarantees user satisfaction with advanced design, meticulous manufacturing and perfect service.

Furniture Hardware Manufacturers Stainless Steel Cabinet Hinge - Glass to Glass Pivot Brass Shower Hinge 2

Furniture Hardware Manufacturers Stainless Steel Cabinet Hinge - Glass to Glass Pivot Brass Shower Hinge 3

Furniture Hardware Manufacturers Stainless Steel Cabinet Hinge - Glass to Glass Pivot Brass Shower Hinge 4

304/SUS304 Stainless steel cabinet door hinges with 100 degree opening angle,clip-on and inseparable are available.Our hinges are adopting high quality material ,with high quality and reasonable price,welcome to make an order right now


Type

Stainless Steel inseparable Hydraulic - damping hinge

Opening angle

100°

Diameter of hinge cup

35mm

Finish

Electrolysis

Main material

stainless steel

Cover space adjustment

0-5mm

The depth adjustment

-2mm/ +3.5mm

Base adjustment (up/down)

-2mm/ +2mm

Articulation cup altitude

12mm

Door drilling size

3-7mm

Door thickness

14-20mm

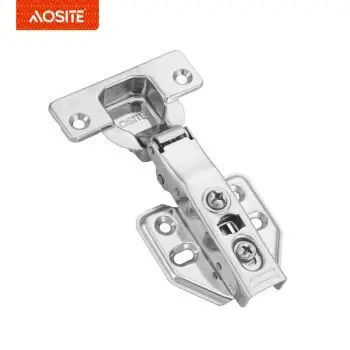

Model K12  is one way hydraulic hinges, this hinge’s main material is stainless steel,which we have 304 and SUS304 material for choice,so this product will have superior ability to anti-rust.This type of

hinge is inseparable mounting plate. Our standards Includes hinges, mounting plates,.Screws and

decorative cover caps are sold separately.


PRODUCT DETAILS

Furniture Hardware Manufacturers Stainless Steel Cabinet Hinge - Glass to Glass Pivot Brass Shower Hinge 5




TWO-DIMENSIONAL SCREW

The adjustable screw is used for distance adjustment, so both sides of the cabinet door can be more suitable.





EXTRA THICK STEEL SHEET

The thickness of hinge from us is double than current market,which can strengthen the service life of hinge

Furniture Hardware Manufacturers Stainless Steel Cabinet Hinge - Glass to Glass Pivot Brass Shower Hinge 6
Furniture Hardware Manufacturers Stainless Steel Cabinet Hinge - Glass to Glass Pivot Brass Shower Hinge 7





BLANK PRESSING HINGE CUP

Large area blank pressing hinge cup can enable the operation between cabinet door and hinge more steady .





HYDRAULIC CYLINDER

Hydraulic buffer makes a better effect of a quiet environment.

Furniture Hardware Manufacturers Stainless Steel Cabinet Hinge - Glass to Glass Pivot Brass Shower Hinge 8

Furniture Hardware Manufacturers Stainless Steel Cabinet Hinge - Glass to Glass Pivot Brass Shower Hinge 9





BOOSTER ARM

Extra thick steel sheet increases the

work ability and service life .



PRODUCTION DATE

High quality permission,rejection any quality problems.

Furniture Hardware Manufacturers Stainless Steel Cabinet Hinge - Glass to Glass Pivot Brass Shower Hinge 10

How To Choose Cold Rolled Steel And Stainless Steel Material?

The choice of cold rolled steel and stainless steel should be different from the

use scenarios, if in damp places.

For example, stainless steel is used in kitchen and bathroom, otherwise cold

rolling steel can be used in bedroom study.



How To Choose Your Door Overlays?

Furniture Hardware Manufacturers Stainless Steel Cabinet Hinge - Glass to Glass Pivot Brass Shower Hinge 11Furniture Hardware Manufacturers Stainless Steel Cabinet Hinge - Glass to Glass Pivot Brass Shower Hinge 12

Full Overlay

The full cover is called straight bending

and straight arms

Door panel covers the side panel

The cover is suitable for the cabinet body, which

covers the side panels.

Furniture Hardware Manufacturers Stainless Steel Cabinet Hinge - Glass to Glass Pivot Brass Shower Hinge 13Furniture Hardware Manufacturers Stainless Steel Cabinet Hinge - Glass to Glass Pivot Brass Shower Hinge 14

Half Overlay

Half cover is also called middle bend

and small arm


Door panel covers half of the side panel

The cupboard door covers the side plate, half of

 which has doors on both sides of the cabinet.

Furniture Hardware Manufacturers Stainless Steel Cabinet Hinge - Glass to Glass Pivot Brass Shower Hinge 15Furniture Hardware Manufacturers Stainless Steel Cabinet Hinge - Glass to Glass Pivot Brass Shower Hinge 16

Inset

No cap, also called big bend, big arm.

Door panel don’t covers the side panel

The door is not covered by the cabinet door, and

 the cabinet door is inside the cabinet.


Furniture Hardware Manufacturers Stainless Steel Cabinet Hinge - Glass to Glass Pivot Brass Shower Hinge 17

Furniture Hardware Manufacturers Stainless Steel Cabinet Hinge - Glass to Glass Pivot Brass Shower Hinge 18

Furniture Hardware Manufacturers Stainless Steel Cabinet Hinge - Glass to Glass Pivot Brass Shower Hinge 19

Furniture Hardware Manufacturers Stainless Steel Cabinet Hinge - Glass to Glass Pivot Brass Shower Hinge 20

Furniture Hardware Manufacturers Stainless Steel Cabinet Hinge - Glass to Glass Pivot Brass Shower Hinge 21

Furniture Hardware Manufacturers Stainless Steel Cabinet Hinge - Glass to Glass Pivot Brass Shower Hinge 22

Furniture Hardware Manufacturers Stainless Steel Cabinet Hinge - Glass to Glass Pivot Brass Shower Hinge 23

Furniture Hardware Manufacturers Stainless Steel Cabinet Hinge - Glass to Glass Pivot Brass Shower Hinge 24

Furniture Hardware Manufacturers Stainless Steel Cabinet Hinge - Glass to Glass Pivot Brass Shower Hinge 25

Furniture Hardware Manufacturers Stainless Steel Cabinet Hinge - Glass to Glass Pivot Brass Shower Hinge 26


We keep on to establish and style and design outstanding top quality goods for Glass to Glass Pivot Brass Shower Hinge (SH360-S-G). We are proud of the fact that we have created true lasting partnerships with our customers. It is a core value of our company and a key element of what makes us successful in what we do. Based on the concept of honest management, people-oriented, and quality-oriented, we are committed to providing customers with the strongest, most professional products and the best quality service.
