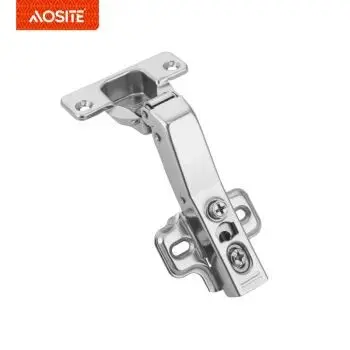

Stainless Steel Shower Glass Door Hinge - 135 Degree Special Angle - Furniture Hardware Manufacturers
Type: Clip-on Special-angel Hydrulic Damping Hinge
Opening angle: 45°
Diameter of hinge cup: 35mm
Pipe Finish: Nickel plated
Main material: Cold-rolled steel
Our drawer sliding storage rack, Cabinet Drawer Runners, cycle handle bar has a steady demand in the market and the quality is absolutely superior, and the price of it is very reasonable. We honor ourselves as a company that comprises of a strong team of professionals who are innovative and well experienced in the international trading, business development and product advancement. It is the unremitting pursuit of success that fills us with passion and vitality, and promotes the company's continuous development and innovation. In the premise of good quality, efficiency must be paid attention to and maintain appropriate low and healthy profits. We will make a commitment to our customers on product quality, delivery period, and so on.
Type | Clip-on Special-angel Hydrulic Damping Hinge |
Opening angle | 45° |
Diameter of hinge cup | 35mm |
Pipe Finish | Nickel plated |
Main material | Cold-rolled steel |
Cover space adjustment | 0-5mm |
The depth adjustment | -2mm/+3.5mm |
Base adjustment(up/down) | -2mm/+2mm |
Articulation cup altitude | 11.3mm |
Door drilling size | 3-7mm |
Door thickness | 14-20mm |
PRODUCT DETAILS
TWO-DIMENSIONAL SCREW The adjustable screw is used for distance adjustment,so that both sides of the cabinet door can be more suitable. | EXTRA THICK STEEL SHEET The thickness of hinge from us is double than current market,which can strengthen the service life of hinge. |
SUPERIOR CONNECTOR Adopting with high quality metal connector,not easy to damage. | HYDRAULIC CYLINDER Hydraulic buffer makes a better effect of a quiet environment. |
| BOOSTER ARM Extra thick steel sheet increases the work ability and service life. | AOSITE LOGO Clearly logo printed,certified the guarantee of our products. |
The difference between agood hinge and a bad hinge Open the hinge at 95 degrees and press both sides of the hinge with your hands. Observe that the supporting spring leaf is not deformed or broken. It is a very strong product with qualified quality. Poor quality hinges have short service life and are easy to fall off. For example, cabinet doors and hanging cabinets fall off due to poor hinge quality. |
INSTALLATION DIAGRAM
According to the installation data,drilling at the proper position of the door panel | Installing the hinge cup. | |
According to the installation data, mounting base to connect the cabinet door. | Adjust back screw to adapt door gap. | Check opening and closing. |
TRANSACTION PROCESS 1. Inquiry 2. Understand customer needs 3. Provide solutions 4. Samples 5. Packaging Design 6. Pricing 7. Trial orders/orders 8. Prepaid 30% deposit 9. Arrange production 10. Settlement balance 70% 11. Loading |
High Performance for Glass to Glass Stainless Steel Shower Glass Door Hinge 135 Degree (FS-316), We put the product quality and customer's benefits to the first place. We welcome new and old customers from all walks of life to contact us for future business relationships and achieving mutual success! Our company has always pursued the business philosophy of 'development by quality, navigation by science, and customer satisfaction as its purpose'.
