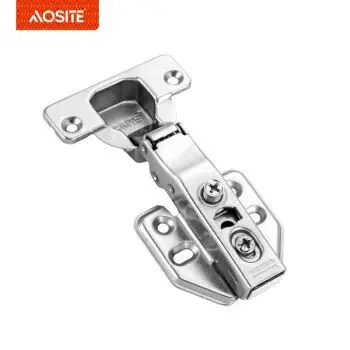

90 Degree Opening Clip-on Furniture Hinge - Furniture Hardware Manufacturers

Type: Clip on hydraulic damping hinge
Opening angle: 100°
Diameter of hinge cup: 35mm
Pipe Finish: Nickel plated
Main material: Cold-rolled steel

Inquiry

We have constantly improved our product quality and strive to provide high grade Handles Furniture, Furniture Aluminum Frame Hinge, Tatami Cabinet Gas Spring to meet the market demand of new and old customers. Meanwhile, aiming to develop into an international enterprise group, we look forward to receiving offers for joint ventures and other cooperative projects. Quality determines the future and integrity creates success. Our company is willing to work with friends at home and abroad to pursue excellence, pay attention to integrity and seek common development. We have a group of experts and experienced technical service personnel, who can provide users with professional consultation, program design and fast, high-quality technical services.

90 Degree Opening Clip-on Furniture Hinge - Furniture Hardware Manufacturers 2

90 Degree Opening Clip-on Furniture Hinge - Furniture Hardware Manufacturers 3

90 Degree Opening Clip-on Furniture Hinge - Furniture Hardware Manufacturers 4

Type	Clip on hydraulic damping hinge
Opening angle	100°
Diameter of hinge cup	35mm
Pipe Finish	Nickel plated
Main material	Cold-rolled steel
Cover space adjustment	0-5mm
The depth adjustment	-2mm/+3.5mm
Base adjustment (up/down)	-2mm/+2mm
Articulation cup altitude	12mm
Door drilling size	3-7mm
Door thickness	14-20mm

PRODUCT DETAILS

HOW TO CHOOSE
YOUR DOOR OVERLAYS

90 Degree Opening Clip-on Furniture Hinge - Furniture Hardware Manufacturers 13

Full Overlay

This is the most common construction technique for cabinet doors.
You will be able to identify if your hinge is Full Overlay :
The Hinge Arm is relatively straight with no "hump" or "crank"
The Cabinet Door overlaps close to 100% on the cabinet side panel
The Cabinet Door does not share a side panel with any other cabinet door

Half Overlay

Much less common but used where space saving or material cost concerns are most important.
This technique uses the same side panel for two cabinets. To achieve this you would need a hinge that provides these features:
The Hinge Arm starts to bend inwards with a "crank" that offsets the door
The Cabinet Door only overlaps a bit less than 50% of the cabinet side panel
The Cabinet Door does not share a side panel with any other cabinet door

90 Degree Opening Clip-on Furniture Hinge - Furniture Hardware Manufacturers 14

90 Degree Opening Clip-on Furniture Hinge - Furniture Hardware Manufacturers 15

Inset/Embed

This is a technique of cabinet door production that allows the door to sit inside the cabinet box.
You will be able to identify that your hinges are Inset if:
The Hinge Arm is quite noticeably bent inwards or highly "cranked"
The Cabinet Door does not overlap with the side panel but sits inside

90 Degree Opening Clip-on Furniture Hinge - Furniture Hardware Manufacturers 16

90 Degree Opening Clip-on Furniture Hinge - Furniture Hardware Manufacturers 17

90 Degree Opening Clip-on Furniture Hinge - Furniture Hardware Manufacturers 18

90 Degree Opening Clip-on Furniture Hinge - Furniture Hardware Manufacturers 19

90 Degree Opening Clip-on Furniture Hinge - Furniture Hardware Manufacturers 20

90 Degree Opening Clip-on Furniture Hinge - Furniture Hardware Manufacturers 21

90 Degree Opening Clip-on Furniture Hinge - Furniture Hardware Manufacturers 22

PRODUCT INSTALLATION

1. According to the installation data, drilling at the proper position of the door panel.

2. Installing the hinge cup.

3. According to the installation data, mounting base to connect the cabinet door.

4. Adjust back screw to adapt door gap, check opening and closing.

5. Check opening and closing.

90 Degree Opening Clip-on Furniture Hinge - Furniture Hardware Manufacturers 23

90 Degree Opening Clip-on Furniture Hinge - Furniture Hardware Manufacturers 24

90 Degree Opening Clip-on Furniture Hinge - Furniture Hardware Manufacturers 25
