Aosite, since 1993

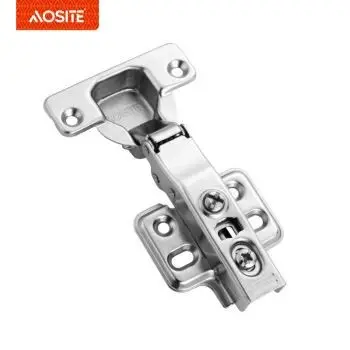

Type: Inseparable hydraulic damping hinge
Opening angle: 100°
Diameter of hinge cup: 35mm
Scope: wood cabinet door
Pipe Finish: Nickel plated
Main material: Cold-rolled steel
So that you can finest fulfill client's demands, all of our operations are strictly performed in line with our motto 'High Excellent, Competitive Price, Fast Service' for Fashion Handle, Drawer Slide Rail, Noble Classical Handle. We will meet customers' needs and the actual situation, tailored to customers, of targeted development solutions, as far as possible to meet new and old customers with a variety of reasonable requirements and needs. For a long time, our company pays special attention to the investment in science and technology and firmly adheres to the people-oriented concept of science and technology. Due to the complete specifications and stable performance of the products, it has been sold well abroad and all over the country and has been widely praised and trusted by the majority of users. With superb service and quality, and an enterprise of foreign trade featuring validity and competitiveness, that will be trusted and welcomed by its clients and creates happiness to its employees.
Type |
Inseparable hydraulic damping hinge |
Opening angle |
100° |
Diameter of hinge cup |
35mm |
Scope |
wood cabinet door |
Pipe Finish |
Nickel plated |
Main material |
Cold-rolled steel |
Cover space adjustment |
0-5mm |
The depth adjustment |
-2mm/+3.5mm |
Base adjustment (up/down) |
-2mm/+2mm |
Articulation cup altitude |
12mm |
Door drilling size |
3-7mm |
Door thickness |
16-20mm |
Q18 METAL HINGE: *Stable and quiet. *Steady & Substantial. *Classical & Luxury lightly. *Good quality nickel plated surface ensure longer lifetime. |
PRODUCT DETAILS
|
TWO-DIMENSIONAL SCEW The adjustable screw is used for distance adjustment,so that both sides of the cabinet doorcan be more suitable. |
SUPERIOR CONNECTOR With high quality metal connector,not easy to damage |
|
|
PRODUCTION DATE High quality provision,rejection any quality problems. |
HYDRAULIC CYLINDER Hydraulic buffer makes a better effect of a quiet environment. |
|
|
BOOSTER ARM Extra thick steel sheet increases the work ability and service life. |
AOSITE LOGO Clearly logo printed, certified the guarantee of our products. |
|
HOW TO CHOOSE YOU
DOOR OVERLAYS
|
|
Full overlay |
The full cover is also called straight bending and straight arms. |
|
|
Half overlay
|
Half cover is also called middle bend and small arm. |
|
|
Inset | No cap, also called big bend, big arm. |
Since different customers have different needs, we hope to provide High Quality 4 Inch Satin Color Heavy Duty Metal Stainless Steel Door Hinge and services that meet customer needs through effective configuration of technology, production and service elements. We have several experienced R & D persons and we welcome OEM orders. Our company will make unremitting efforts to meet the needs of customers, and strive to create a unique corporate character in terms of product quality, diversified varieties and sales services, and provide you with 'excellent and beautiful' products and services.
