Aosite, since 1993

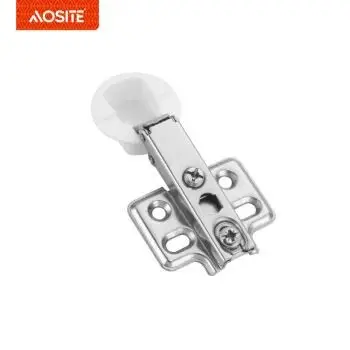

Type: Slide-on mini glass hinge (one way)
Opening angle: 95°
Diameter of hinge cup: 26mm
Finish: Nickel plated
Main material: Cold-rolled steel
We emphasize progress and introduce new solutions into the market each year for Two Way Hydraulic Hinge, Drawer Slide Telescopic, Furniture Gas Spring. Over the years, with the unremitting efforts of all the staff, we have expanded the product scale, and the products are supported and trusted by the majority of consumers. We deeply realize that quality is the life of an enterprise and brand is the blood of an enterprise. We have been praised and trusted by customers for many years since introduced advanced production technology and equipment, coupled with strict product quality management, and established a high-quality, efficient and fast sales guarantee system.
Type | Slide-on mini glass hinge (one way) |
Opening angle | 95° |
Diameter of hinge cup | 26mm |
Finish | Nickel plated |
Main material | Cold-rolled steel |
Cover space adjustment | 0-5mm |
The depth adjustment | -2mm/+3.5mm |
Base adjustment(up/down) | -2mm/+2mm |
Articulation cup altitude | 10.6mm |
Glass door thickness | 4-6mm |
Hole size of glass panel | 4-8mm |
RIVET DEVICE Hinges and rivets of good quality are of fine workmanship and have relatively large diameters. Only in this way can we bear a door panel of large enough size. So as to ensure the service life of the hinge.How to choose your door overlays? |
PRODUCT DETAILS
TWO-DIMENSIONAL SCREW The adjustable screw is used for distance adjustment,so that both sides of the cabinet door can be more suitable. | |
BOOSTER ARM Extra thick steel sheet increases the work ability and service life . | |
SUPERIOR CONNECTOR Adopting with high quality metal connector,not easy to damage. | |
PRODUCTION DATE High quality promise rejection any quality problems. |
HOW TO CHOOSE
YOUR DOOR OVERLAYS
Full overlay The full cover is also called straight bending and straight arms. | |
Half overlay Half cover is also called middle bend and small arm. | |
Inset No cap,also called big bend ,big arm. | |
who are we? 26 years in focusing household hardware manufacturing. More than 400 professional staffs. The monthly production of hinges reaches 6 million. More than 13000 square meters modern industrial zone. 42 countries and regions are using Aosite Hardware. Achieved 90% dealer coverage in first- and second-tier cities in China. 90 million pieces of furniture are installing Aosite Hardware. |
FAQS What is your factory product range? Hinges, Gas spring, Tatami system, Ball bearing slide,Handles 2.Do 2.you provide samples? Is it free or extra? Yes, we provide free samples. How long does the normal delivery time take? About 45 days. 4. What kind of payments does support? T/T. 5. Do you offer ODM services? Yes, ODM is welcome. |
We not only pay attention to the quality of High-Quality Mini Self-Closing Spring Hinge for Jewelry Box Wooden Box Glasses Case 19.2*15mm Elastic Hinge Gemel, but also have a group of professional and technical personnel and backbones to ensure that our design and production standards are ahead of the industry. We use high-precision advanced production equipment, and every link in the manufacturing process has undergone strict quality management. We've been devoting ourselves wholeheartedly to supply consumers the very best company.
