Model number:AQ88

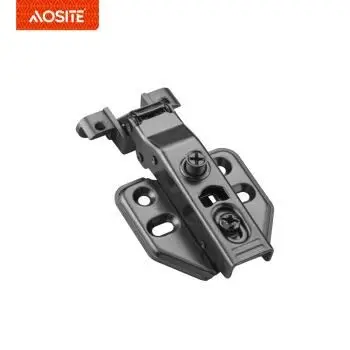

Type: Inseparable aluminium frame hydraulic damping hinge (two way/ black finished)
Opening angle: 110°
Aluminium frame hale size of hinge cup: 28mm
Finish: Black finish
Main material: Cold-rolled steel
In the future, we will consistently provide customers with first-class Inset Cabinet Hinges, custom undermount drawer slides, Overlay Cabinet Hinge and services. The concept of responsibility for the benefit of mankind is widely recognized in the company, and our employees take it as a goal and pursuit of continuous progress. We focus on investment in science and technology, and plan to cultivate and improve the professional capabilities of the team. We welcome you to contact us for more information and look forward to working with you.
Type | Inseparable aluminium frame hydraulic damping hinge (two way/ black finished) |
Opening angle | 110° |
Aluminium frame hale size of hinge cup | 28mm |
Finish | Black finish |
Main material | Cold-rolled steel |
Cover space adjustment | 0-7mm |
The depth adjustment | -3mm/ +4mm |
Base adjustment (up/down) | -2mm/ +2mm |
Articulation cup altitude | 12mm |
Door thickness | 14-21mm |
Aluminum adaptation width | 18-23mm |
PRODUCT DETAILS
TWO-DIMENSIONAL SCREW The adjustable screw is used for distance adjustment, so that both sides of the cabinet door can be more suitable | |
EXTRA THICK STEEL SHEET The thickness of hinge from us is double than current market, which can strengthen the service life of hinge. | |
BOOSTER ARM Adjusting the door front/back Adjusting cover of door
The size of the gap is regulated by screws.Left/right deviation screws adjust 0-5mm | |
HYDRAULIC CYLINDER Hydraulic buffer makes a better effect of a quiet environment. | |
Who Are We? 26 years in focusing household hardware manufacturing More than 400 professional staffs The monthly production of hinges reaches 6 million More than 13000 square meters modern industrial zone 42 countries and regions are using Aosite Hardware Achieved 90% dealer coverage in first- and second-tier cities in China 90 million pieces of furniture are installing Aosite Hardware |
There is no doubt that modern and standardized production is an advantage. We have a whole process quality monitoring system, so that every detail is impeccable and every Idl Quality Enclosures Shower Door Parts, Glass Sliding Doors is of extraordinary quality. We always pay attention to the latest developments in the industry and will always adhere to the concept of innovation, quality, and integrity. On the basis of fully understanding the needs of customers, through professional technical level and unremitting efforts, we provide a solid foundation for the company's product promotion and brand reputation.
