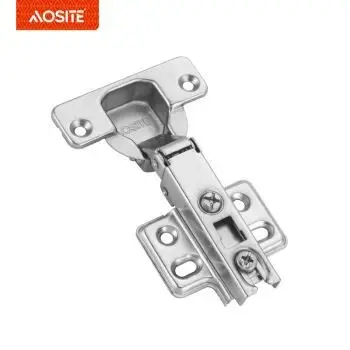

Two Way Metal Hinge for Furniture Cabinet - Slide on Type, Furniture Hardware Manufacturer
Type: Slide-on hinge (two-way)
Opening angle: 110°
Diameter of hinge cup: 35mm
Pipe Finish: Nickel plated
Main material: Cold-rolled steel
We will continue to serve users wholeheartedly, and strive to make users feel at ease and satisfied with the use of Hide Guide, Furniture Hardware Hydraulic Hinge, Luxury Double Wall Drawer. We are committed to continue to carry forward the spirit of innovation. With the concept of excellence, enthusiastic staff and first-class after-sales service, we are confident that our future will become more and more successful. We have gradually become the loyal partner of many well-known enterprises at home and abroad.
B03 slide on furniture hinge
*two way
*free stop
*small angle buffer
*large angle open
HINGE HOLE DISTANCE PATTERN
48mm Hole distance is the most common hinge cup pattern used by Chinese (imported) cabinet makers. This is also a common universal standard for other major Hinge manufacturers in areas outside North America, including Blum, Salice, and Grass. These will be very difficult to source as replacements in North America. It is recommended to switch to a more commonly available cup type in that case.Diameter of the hinge cup or "boss" that inserts into the cabinet door is 35mm. Distance between screw holes (or dowels) is 48mm.Center of screws (dowels) is 6mm offset from the hinge cup center.
52mm Hole distance is a less common hinge cup pattern used by some cabinet makers,but it’s most popular in Korea market.This pattern is mainly for compatibility with some European hinge brands like Hettich and Mepla. Diameter of the hinge cup or "boss" that inserts into the cabinet door is 35mm.Distance between screw holes /dowels is 52mm. Center of screws (dowels) is 5.5mm offset from the hinge cup center.
Type | Slide-on hinge (two-way) |
Opening angle | 110° |
Diameter of hinge cup | 35mm |
Pipe Finish | Nickel plated |
Main material | Cold-rolled steel |
Cover space adjustment | 0-5mm |
The depth adjustment | -2mm/+3.5mm |
Base adjustment (up/down) | -2mm/+2mm |
Articulation cup altitude | 11.3mm |
Door drilling size | 3-7mm |
Door thickness | 14-20mm |
B03 slide on furniture hinge *two way *free stop *small angle buffer *large angle open
HINGE HOLE DISTANCE PATTERN 48mm Hole distance is the most common hinge cup pattern used by Chinese (imported) cabinet makers. This is also a common universal standard for other major Hinge manufacturers in areas outside North America, including Blum, Salice, and Grass. These will be very difficult to source as replacements in North America. It is recommended to switch to a more commonly available cup type in that case.Diameter of the hinge cup or "boss" that inserts into the cabinet door is 35mm. Distance between screw holes (or dowels) is 48mm.Center of screws (dowels) is 6mm offset from the hinge cup center.
52mm Hole distance is a less common hinge cup pattern used by some cabinet makers,but it’s most popular in Korea market.This pattern is mainly for compatibility with some European hinge brands like Hettich and Mepla. Diameter of the hinge cup or "boss" that inserts into the cabinet door is 35mm.Distance between screw holes /dowels is 52mm. Center of screws (dowels) is 5.5mm offset from the hinge cup center. |
PRODUCT DETAILS
FAQS Q: What is your factory product range? A: Hinges/ Gas spring/ Tatami system/ Ball bearing slide. Q: Do you provide samples? Is it free or extra? A: Yes, we provide free samples. Q: How long does the normal delivery time take? A: About 45 days. Q: What kind of payments does support? A: T/T. |
Our high standards in production processes ensure that our Slide on Two Way Metal Hinge for Furniture Cabinet meets the industry's high standards in terms of appearance and quality of component production. After years of research and market experience accumulated by our technical staff, we have gradually transformed into independent research and design, and formed a serialized and diversified product structure. Welcome any of your inquiries and concerns for our products.
