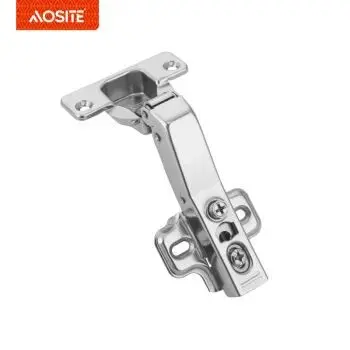

Certified Stainless Steel 4-Ball Bearing Door Hinge: Special Angle 45°
Type: Clip-on Special-angel Hydrulic Damping Hinge
Opening angle: 45°
Diameter of hinge cup: 35mm
Pipe Finish: Nickel plated
Main material: Cold-rolled steel
We will continue to take our product line to the next level by developing new series of Heavy Duty Drawer Slides, Undermount Drawer Slide, Furniture Drawer Slide and improving existing product designs. Our expert engineering team will often be ready to serve you for consultation and feedback. The business make an awesome efforts to expand its international trade, raise its enterprise.
Type | Clip-on Special-angel Hydrulic Damping Hinge |
Opening angle | 45° |
Diameter of hinge cup | 35mm |
Pipe Finish | Nickel plated |
Main material | Cold-rolled steel |
Cover space adjustment | 0-5mm |
The depth adjustment | -2mm/+3.5mm |
Base adjustment(up/down) | -2mm/+2mm |
Articulation cup altitude | 11.3mm |
Door drilling size | 3-7mm |
Door thickness | 14-20mm |
PRODUCT DETAILS
TWO-DIMENSIONAL SCREW The adjustable screw is used for distance adjustment,so that both sides of the cabinet door can be more suitable. | EXTRA THICK STEEL SHEET The thickness of hinge from us is double than current market,which can strengthen the service life of hinge. |
SUPERIOR CONNECTOR Adopting with high quality metal connector,not easy to damage. | HYDRAULIC CYLINDER Hydraulic buffer makes a better effect of a quiet environment. |
| BOOSTER ARM Extra thick steel sheet increases the work ability and service life. | AOSITE LOGO Clearly logo printed,certified the guarantee of our products. |
The difference between agood hinge and a bad hinge Open the hinge at 95 degrees and press both sides of the hinge with your hands. Observe that the supporting spring leaf is not deformed or broken. It is a very strong product with qualified quality. Poor quality hinges have short service life and are easy to fall off. For example, cabinet doors and hanging cabinets fall off due to poor hinge quality. |
INSTALLATION DIAGRAM
According to the installation data,drilling at the proper position of the door panel | Installing the hinge cup. | |
According to the installation data, mounting base to connect the cabinet door. | Adjust back screw to adapt door gap. | Check opening and closing. |
TRANSACTION PROCESS 1. Inquiry 2. Understand customer needs 3. Provide solutions 4. Samples 5. Packaging Design 6. Pricing 7. Trial orders/orders 8. Prepaid 30% deposit 9. Arrange production 10. Settlement balance 70% 11. Loading |
Our company is a private enterprise mainly operating a variety of imported well-known high-end brands Stainless Steel Four Ball Bearing Door Hinge with UL and Ce Certificate and advocating the enterprise spirit of professional, pragmatic, efficient, and innovative formed a good internal mechanism. Our company always adheres to the enterprise spirit of 'quality for survival, innovation for development', gradually expands domestic and foreign markets, returns customers with excellent products and services, and promotes the company's development. The various products we produce are constantly becoming more humanized in design, facilitating daily life and industry.
