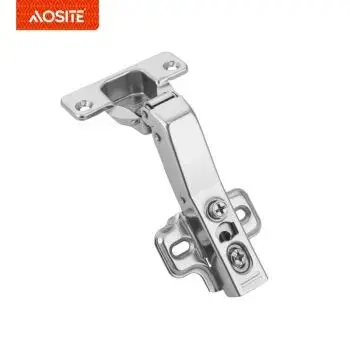

Satin Finish Stainless Steel Door Hinge (2032-PN): Special Angle 45° Hinge 1
Satin Finish Stainless Steel Door Hinge (2032-PN): Special Angle 45° Hinge 1

Satin Finish Stainless Steel Door Hinge (2032-PN): Special Angle 45° Hinge

Type: Clip-on Special-angel Hydrulic Damping Hinge
Opening angle: 45°
Diameter of hinge cup: 35mm
Pipe Finish: Nickel plated
Main material: Cold-rolled steel

Inquiry

Our vision is to be a trusted company by providing quality undermount drawer slides soft close, drawer slide machinery, stainless steel door hinge and attentive service since the establishment of our company. We believe that integrity is the foundation of all cooperation, tolerance is the premise of solving problems, innovation is a sharp weapon for development and service is the basis for creating value. We adhere to the business philosophy of 'know the needs of customers, meet the needs of customers, to survive by quality', products have been sold at home and abroad, welcome the majority of customers to consult us. Free samples may be delivered and company check out to our corporation. We sincerely welcome the customers from all over the world to contact us for anything you need!

Satin Finish Stainless Steel Door Hinge (2032-PN): Special Angle 45° Hinge 2

Satin Finish Stainless Steel Door Hinge (2032-PN): Special Angle 45° Hinge 3

Satin Finish Stainless Steel Door Hinge (2032-PN): Special Angle 45° Hinge 4


Type

Clip-on Special-angel Hydrulic Damping Hinge

Opening angle

45°

Diameter of hinge cup

35mm

Pipe Finish

Nickel plated

Main material

Cold-rolled steel

Cover space adjustment

0-5mm

The depth adjustment

-2mm/+3.5mm

Base adjustment(up/down)

-2mm/+2mm

Articulation cup altitude

11.3mm

Door drilling size

3-7mm

Door thickness

14-20mm

PRODUCT DETAILS


Satin Finish Stainless Steel Door Hinge (2032-PN): Special Angle 45° Hinge 5Satin Finish Stainless Steel Door Hinge (2032-PN): Special Angle 45° Hinge 6

TWO-DIMENSIONAL SCREW

The adjustable screw is used for distance

adjustment,so that both sides of the cabinet

door can be more suitable.

EXTRA THICK STEEL SHEET

The thickness of hinge from us is double than

current market,which can strengthen

 the service life of hinge.

Satin Finish Stainless Steel Door Hinge (2032-PN): Special Angle 45° Hinge 7Satin Finish Stainless Steel Door Hinge (2032-PN): Special Angle 45° Hinge 8

SUPERIOR CONNECTOR

Adopting with high quality metal connector,not

easy to damage.

HYDRAULIC CYLINDER

Hydraulic buffer makes a better effect of a quiet

 environment.

Satin Finish Stainless Steel Door Hinge (2032-PN): Special Angle 45° Hinge 9
Satin Finish Stainless Steel Door Hinge (2032-PN): Special Angle 45° Hinge 10
BOOSTER ARM

Extra thick steel sheet increases the work ability

 and service life.

AOSITE LOGO

Clearly logo printed,certified the guarantee

of our products.




The difference between agood hinge and a bad hinge

Open the hinge at 95 degrees and press both sides of the hinge with your hands.

Observe that the supporting spring leaf is not deformed or broken. It is a very strong

product with qualified quality. Poor quality hinges have short service life and are easy

to fall off. For example, cabinet doors and hanging cabinets fall off due to poor hinge quality.


INSTALLATION DIAGRAM

Satin Finish Stainless Steel Door Hinge (2032-PN): Special Angle 45° Hinge 11

According to the installation data,drilling at the proper position of

the door panel

Installing the hinge cup.
Satin Finish Stainless Steel Door Hinge (2032-PN): Special Angle 45° Hinge 12


According to the installation

data, mounting base to connect

the cabinet door.

Adjust back screw to adapt door

gap.

Check opening and closing.


Satin Finish Stainless Steel Door Hinge (2032-PN): Special Angle 45° Hinge 13


Satin Finish Stainless Steel Door Hinge (2032-PN): Special Angle 45° Hinge 14

Satin Finish Stainless Steel Door Hinge (2032-PN): Special Angle 45° Hinge 15

Satin Finish Stainless Steel Door Hinge (2032-PN): Special Angle 45° Hinge 16

Satin Finish Stainless Steel Door Hinge (2032-PN): Special Angle 45° Hinge 17

Satin Finish Stainless Steel Door Hinge (2032-PN): Special Angle 45° Hinge 18

Satin Finish Stainless Steel Door Hinge (2032-PN): Special Angle 45° Hinge 19

Satin Finish Stainless Steel Door Hinge (2032-PN): Special Angle 45° Hinge 20

TRANSACTION PROCESS

1. Inquiry

2. Understand customer needs

3. Provide solutions

4. Samples

5. Packaging Design

6. Pricing

7. Trial orders/orders

8. Prepaid 30% deposit

9. Arrange production

10. Settlement balance 70%

11. Loading


Satin Finish Stainless Steel Door Hinge (2032-PN): Special Angle 45° Hinge 21

Satin Finish Stainless Steel Door Hinge (2032-PN): Special Angle 45° Hinge 22


Satin Finish Stainless Steel Door Hinge (2032-PN): Special Angle 45° Hinge 23


Our products are exported worldwide, enjoying a fantastic reputation amongst customers for SUS304 Satin Finish Stainless Steel Door Hinge (2032-PN). We assimilated the managing experience of other outstanding companies completely and developed constantly on the base of the achievements we had got, then got the super position in the market. Our staff in line with the 'integrity based' concept to provide customers with assured products and satisfactory service to comply with the trend of the industry.
