Simplified and Durable Stainless Steel Cabinet Hinge from Furniture Hardware Manufacturers 1
Simplified and Durable Stainless Steel Cabinet Hinge from Furniture Hardware Manufacturers 1

Simplified and Durable Stainless Steel Cabinet Hinge from Furniture Hardware Manufacturers

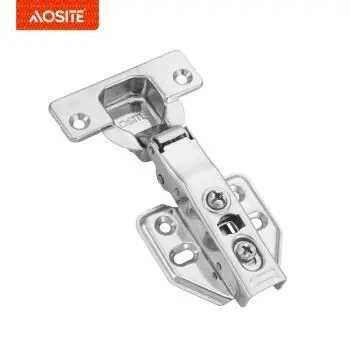

Type: Stainless Steel inseparable Hydraulic - damping hinge
Opening angle: 100°
Diameter of hinge cup: 35mm
Finish: Electrolysis
Main material: stainless steel

Inquiry

Meanwhile, our organization staffs a group of experts devoted for Clip On Furniture Hinge, Concealed Hinge, jewelry box drawer slide. Based on the new management concept, we will use core technology to create new value for the sustainable development of society. We are keenly aware that if we are to have a better business perspective and promote the long-term development of the company, we must rely on technology to continuously improve our own strength. We adhere to the business philosophy of 'know the needs of customers, meet the needs of customers, to survive by quality', products have been sold at home and abroad, welcome the majority of customers to consult us. We are committed to putting people first, providing human resources for high-quality services, and encouraging employees to pursue the realization of self-worth.

Simplified and Durable Stainless Steel Cabinet Hinge from Furniture Hardware Manufacturers 2

Simplified and Durable Stainless Steel Cabinet Hinge from Furniture Hardware Manufacturers 3

Simplified and Durable Stainless Steel Cabinet Hinge from Furniture Hardware Manufacturers 4

304/SUS304 Stainless steel cabinet door hinges with 100 degree opening angle,clip-on and inseparable are available.Our hinges are adopting high quality material ,with high quality and reasonable price,welcome to make an order right now


Type

Stainless Steel inseparable Hydraulic - damping hinge

Opening angle

100°

Diameter of hinge cup

35mm

Finish

Electrolysis

Main material

stainless steel

Cover space adjustment

0-5mm

The depth adjustment

-2mm/ +3.5mm

Base adjustment (up/down)

-2mm/ +2mm

Articulation cup altitude

12mm

Door drilling size

3-7mm

Door thickness

14-20mm


Model K12  is one way hydraulic hinges, this hinge’s main material is stainless steel,which we have 304 and SUS304 material for choice,so this product will have superior ability to anti-rust.This type of

hinge is inseparable mounting plate. Our standards Includes hinges, mounting plates,.Screws and

decorative cover caps are sold separately.


PRODUCT DETAILS

Simplified and Durable Stainless Steel Cabinet Hinge from Furniture Hardware Manufacturers 5




TWO-DIMENSIONAL SCREW

The adjustable screw is used for distance adjustment, so both sides of the cabinet door can be more suitable.





EXTRA THICK STEEL SHEET

The thickness of hinge from us is double than current market,which can strengthen the service life of hinge

Simplified and Durable Stainless Steel Cabinet Hinge from Furniture Hardware Manufacturers 6
Simplified and Durable Stainless Steel Cabinet Hinge from Furniture Hardware Manufacturers 7





BLANK PRESSING HINGE CUP

Large area blank pressing hinge cup can enable the operation between cabinet door and hinge more steady .





HYDRAULIC CYLINDER

Hydraulic buffer makes a better effect of a quiet environment.

Simplified and Durable Stainless Steel Cabinet Hinge from Furniture Hardware Manufacturers 8

Simplified and Durable Stainless Steel Cabinet Hinge from Furniture Hardware Manufacturers 9





BOOSTER ARM

Extra thick steel sheet increases the

work ability and service life .



PRODUCTION DATE

High quality permission,rejection any quality problems.

Simplified and Durable Stainless Steel Cabinet Hinge from Furniture Hardware Manufacturers 10

How To Choose Cold Rolled Steel And Stainless Steel Material?

The choice of cold rolled steel and stainless steel should be different from the

use scenarios, if in damp places.

For example, stainless steel is used in kitchen and bathroom, otherwise cold

rolling steel can be used in bedroom study.



How To Choose Your Door Overlays?

Simplified and Durable Stainless Steel Cabinet Hinge from Furniture Hardware Manufacturers 11Simplified and Durable Stainless Steel Cabinet Hinge from Furniture Hardware Manufacturers 12

Full Overlay

The full cover is called straight bending

and straight arms

Door panel covers the side panel

The cover is suitable for the cabinet body, which

covers the side panels.

Simplified and Durable Stainless Steel Cabinet Hinge from Furniture Hardware Manufacturers 13Simplified and Durable Stainless Steel Cabinet Hinge from Furniture Hardware Manufacturers 14

Half Overlay

Half cover is also called middle bend

and small arm


Door panel covers half of the side panel

The cupboard door covers the side plate, half of

 which has doors on both sides of the cabinet.

Simplified and Durable Stainless Steel Cabinet Hinge from Furniture Hardware Manufacturers 15Simplified and Durable Stainless Steel Cabinet Hinge from Furniture Hardware Manufacturers 16

Inset

No cap, also called big bend, big arm.

Door panel don’t covers the side panel

The door is not covered by the cabinet door, and

 the cabinet door is inside the cabinet.


Simplified and Durable Stainless Steel Cabinet Hinge from Furniture Hardware Manufacturers 17

Simplified and Durable Stainless Steel Cabinet Hinge from Furniture Hardware Manufacturers 18

Simplified and Durable Stainless Steel Cabinet Hinge from Furniture Hardware Manufacturers 19

Simplified and Durable Stainless Steel Cabinet Hinge from Furniture Hardware Manufacturers 20

Simplified and Durable Stainless Steel Cabinet Hinge from Furniture Hardware Manufacturers 21

Simplified and Durable Stainless Steel Cabinet Hinge from Furniture Hardware Manufacturers 22

Simplified and Durable Stainless Steel Cabinet Hinge from Furniture Hardware Manufacturers 23

Simplified and Durable Stainless Steel Cabinet Hinge from Furniture Hardware Manufacturers 24

Simplified and Durable Stainless Steel Cabinet Hinge from Furniture Hardware Manufacturers 25

Simplified and Durable Stainless Steel Cabinet Hinge from Furniture Hardware Manufacturers 26
