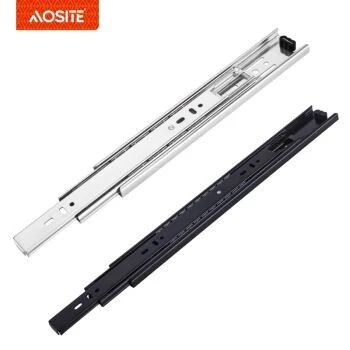

Three Fold Ball Bearing Slides
|
Type |
Normal three-fold ball bearing slides |
|
Loading capacity |
45kgs |
|
Optional size |
250mm-600mm |
|
Installation gap |
12.7±0.2mm |
|
Pipe Finish |
Zinc-plated/ Electrophoresis black |
|
Material |
Reinforced cold rolled steel sheet |
|
Thickness |
1.0*1.0*1.2 mm / Per inch weight 61-62 grams 1.2*1.2*1.5 mm / Per inch weight 75-76 grams |
|
Function |
Smooth opening, quiet experience |
PRODUCT DETAILS
|
|
|
|
|
|
|
|
|
|
|
|
|
SLIDE RAIL CHARACTERISTICS Inside the slide rail, which cannot be seen by naked eyes, is its bearing structure, which is directly related to its bearing capacity. At present, there are both steel ball slide rails and silicon wheel slide rails on the market. The former automatically removes dust and dirt on the slide rail through the rolling of steel balls, thus ensuring the cleanness of the slide rail and preventing dirt from entering the interior and affecting its sliding function. |
PRODUCT STRUCTURE
|
|
|||
|
|
Smooth Steel Ball Bearing Superior quality steel ball bearing are durable |
|
Second Section Rail Connected first and third section rail |
|
Anti-Collision Rubber Ensure quiet during opening and closing |
Third Section Rail Connected cabinet body to ensure smooth tension of bearing |
||
|
First Section Rail Connected slide and drawer |
Accurate Position Hole Firmed screws to avoid loosening |
||
|
PRODUCT SHOW *45KGS load bearing *Three folds full extension design *Firm ball bearing *50thousands life test |
* Loading capacity 40KG
* Monthly capacity 100,0000 sets
* 50,000 times cycle test
* Quiet and smooth sliding
