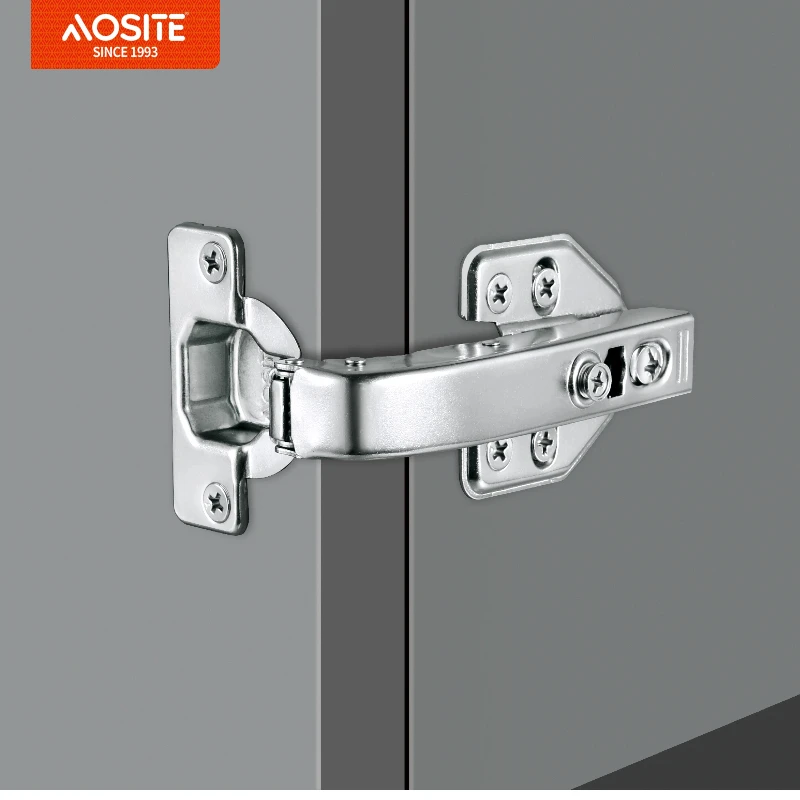

90 Degree Hydraulic Damping Hinge For Cabinet Door

90 degree inseparable hydraulic damping cabinet hinge

*OEM technical support

*48 hours salt&spray test

*50,000 times opening and closing

*Monthly production capacity 600,0000 pcs

*4-6seconds soft closing

Detail display

a. Two-dimensional screw

The adjustable screw is used for distance adjustment,so that both sides of the cabinet door can be more suitable.

b. Extra thick steel sheet

The thickness of hinge from us is double than current market,which can strengthen the service life of hinge.

c. Superior connector

Adopting with high quality metal connector,not easy to damage.

d. Hydraulic cylinder

Hydraulic buffer makes a better effect of a quiet environment.

e. 50,000 open and close tests

Reach the national standard 50,000 times opening and closing,product quality is guaranteed.

Product name:90 degree inseparable hydraulic damping hinge

Opening angle:90°

Pipe finish:Nickel plated

Diamater of hinge cup:35mm

Main material:Cold-rolled steel

Cover space adjustment-2mm/+3.5mm

Base adjustment(up/down):-2mm/+2mm

Articulation cup altitude:11.3mm

Door drilling size:3-7mm

Door panel thickness:14-20mm

Fixing technology, rugged, buffering open, feel the gentleness of one release.The 90-degree hinge and conventional hinge structure have a difference, and the conventional hinges need to have a column, the space is limited, and it is required to choose it.
