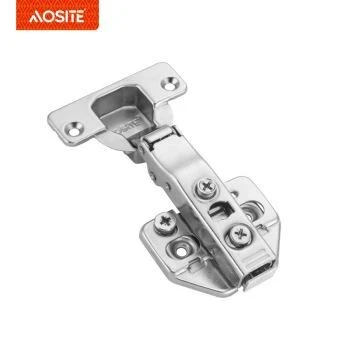

Clip On 3D Adjustable Hinge
Type | Clip on hydraulic damping hinge |
Opening angle | 100° |
Diameter of hinge cup | 35mm |
Finish | Nickel plated |
Main material | Cold-rolled steel |
Cover space adjustment | 0-5mm |
The depth adjustment | -2mm/+2mm |
Base adjustment (up/down) | -2mm/+2mm |
Articulation cup altitude | 12mm |
Door drilling size | 3-7mm |
Door thickness | 14-20mm |
PRODUCT DETAILS
OPTIONAL HINGE HOLE DISTANCE PATTERN
45mm Hole Distance 45mm Hole distance is the most common hinge cup pattern for European style Clip On 3D Adjustable Hinge Almost all of the major Hinge manufacturers selling European style hings in including Blum, Salice, and Grass are with this hinge cup pattern Diameter of the hinge cup or "boss" that inserts into the cabinet door is 35mm Distance between screw ho for dowels) is 45mm Center of screws dowels) is 9. 5mm offset from the hinge cup center. | |
48mm Hole Distance 48mm Hole distance is the most common hinge cup pattern used by Chinese (imported) cabinet makers. This is also a common universal standard for other major Hinge manufacturers in areas outside North America, including Blum, salice, and Grass.These be very difficult to source as replacements in North America. it is recommended to switch to a more commonly cup type that case. Diameter of the hinge cup or "boss" that inserts into the cabinet door is 35mm. Distance between screw holes or dowels)s 48mm Center of screws (dowels) is 6mm offset from the hinge cup center. | |
52mm Hole Distance 52mm Hole distance is a less common hinge cup pattern used by some cabinet makers, but it' s most popular in Korea market. This pattern is mainly for compatibility with some European Clip On 3D Adjustable Hinge brands like Hettich and Mepla Diameter of the hinge cup or "boss" that inserts into the cabinet door is 35mm. Distance between screw holes/ dowels is 52mm. Center of screws (dowels) is 5.5mm offset from the hinge cup center. |
Force: 50N-150N
Center to center: 245mm
Stroke: 90mm
Main material 20#: 20# Finishing tube, copper, plastic
Pipe Finish: Electroplating & healthy spray paint
Rod Finish: Ridgid Chromium-plated
Optional Functions: Standard up/ soft down/ free stop/ Hydraulic double step
Main material: Zinc alloy
Rotation angle: 180°
Scope of application: 18-25mm
Rotation angle: 180 degree
Scope of application: All kinds of cabinets / Tatami system
Package: 200 Pcs/ Carton
