35mm Cup Hinge

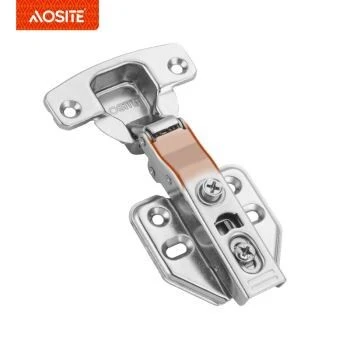

AQ860 35mm cup hinge
Introduction to Types of Hinges:
1.according to the type of base can be divided into two kinds of removable and fixed
2.According to the type of arm body, it can be divided into slide-in type and clip-on type.
3.According to the covering position of the door panel, it can be divided into full cover (straight bent and straight arm) with a general cover of 18% and half cover (middle bent and curved arm) with a cover of 9%. The concealed (big bent and curved) door panel is all hidden inside.
4.According to the style of hinge development stage, it can be divided into: first-stage force hinge, second-stage force hinge and hydraulic buffer hinge
5.According to the opening angle of the hinge, it is generally 95-110 degrees, especially 45 degrees, 135 degrees, 175 degrees, etc.
6.according to the type of hinge is divided into: ordinary one or two force hinge, short arm hinge, 26 cup micro hinge, billiard hinge, aluminum frame door hinge, special angle hinge, glass hinge, rebound hinge, American hinge, damping hinge, etc.
On the difference of three hinges of right angle (straight arm), half bend (half curve) and big bend (big curve):
A right-angle hinge allows the door to completely block the side panels.
A half-bent hinge allows the door panel to cover some of the side panels.
A large curved hinge allows the door panel to be parallel to the side panel.
|
PRODUCT ADVANTAGE: Baby anti-pinch soothing silent close. Intricately crafted with precise detail for lifelong beauty and durability. Finished in Nickel.
FUNCTIONAL DESCRIPTION: The AOSITE AQ860 Corner cabinet hinges Full Overlay Hinge is finished in Nickel. Every AOISTE functional hardware series item is tested for durability in conditions exceeding all SGS certification requirements and 50000 times for cycle life, strength and finish quality. Nickel is a cool, smooth silver-toned finish that is timeless and subtle. PRODUCT DETAILS |
|
|
The thickness of 1.2 MM. |
|
The thickness of 1.2 MM.
|
|
|
|
It is opening angle is 110°. |
|
Adopt forging cylinder. |
|
HOW TO CHOOSE YOUR
DOOR ONERLAYS
|
WHO ARE WE? AOSITE offers a complete line of decorative and functional cabinet hardware. AOSITE award-winning decorative and functional hardware solutions have built the company’s reputation for chic design accessories that inspire homeowners to express their personal style. Available in a variety of finishes and styles, AOSITE offers high quality designs at affordable prices to create the perfect finishing touch for any room. |
Origin: Zhaoqing, Guangdong
Material: Brass
Scope: cabinets, drawers, wardrobes
Packing: 50pc/ CTN, 20pc/ CTN, 25pc/ CTN
Feature: Easy Installation
Style: Unique
Function: Push Pull Decoration
Elastic Lift Force of Gas Spring The gas spring is filled with non-toxic nitrogen at higher pressure. This creates an inflation pressure that acts on the cross section of the piston rod. The elastic force is generated in this way. If the elastic force of the gas spring is higher than the force...
Type: Tatami free stop gas spring
Force: 80N-180N
Center to center: 358mm
Stroke: 149mm
Rod finish: Ridgid chrouium-plating
Pipe finish: Health paint surface
Main material: 20# Finishing tube
