Type: Fixed type normal hinge (one way)
Opening angle: 105°
Diameter of hinge cup: 35mm
Scope: Cabinets, wood layma
Pipe Finish: Nickel plated
Main material: Cold-rolled steel
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.

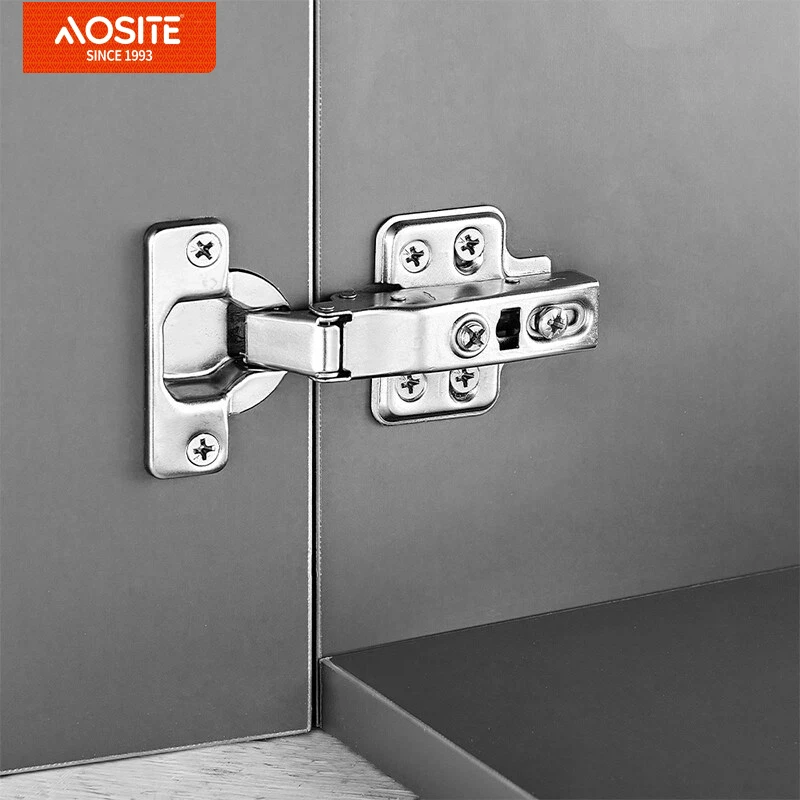

This type of hinge also belong to without hydraulic hinge, so it can’t soft closing. we call model B02A one way reinforce type hinge. Our standard Includes hinges, mounting plates. Screws and decorative cover caps are sold separately.
HOW TO CHOOSE COLD ROLLED STEEL STAINLESS STEEL?
The choice of cold rolled steel and stainless steel should be different from the use scenarios, if in damp places.
For example, stainless steel is used in kitchen and bathroom, otherwise cold rolling steel can be used in bedroom study.
PRODUCT DETAILS
PRODUCTS STRUCTURE
ADJUSTNG THE DOOR FRONT/ BACK
The size of the gap is regulated by
screws.
ADJUSTING COVER OF DOOR
Left / right deviation screws adjust
0-5 mm.
AOSITE LOGO
A clear AOSITE anti-counterfeit LOGO is found in the plastic cup.
This is the most common construction technique for cabinet doors. You will be able to identify if your hinge is Full Overlay : The Hinge Arm is relatively straight with no "hump" or "crank" The Cabinet Door overlaps close to 100% on the cabinet side panel The Cabinet Door does not share a side panel with any other cabinet door
Half Overlay
Much less common but used where space saving or material cost concerns are most important. This technique uses the same side panel for two cabinets. To achieve this you would need a hinge that provides these features: The Hinge Arm starts to bend inwards with a "crank" that offsets the door The Cabinet Door only overlaps a bit less than 50% of the cabinet side panel The Cabinet Door does not share a side panel with any other cabinet door
Inset/Embed
This is a technique of cabinet door production that allows the door to sit inside the cabinet box. You will be able to identify that your hinges are Inset if: The Hinge Arm is quite noticeably bent inwards or highly "cranked" The Cabinet Door does not overlap with the side panel but sits inside
PRODUCT INSTALLATION
1. According to the installation data, drilling at the proper position of the door panel.
2. Installing the hinge cup.
3. According to the installation data, mounting base to connect the cabinet door.
4. Adjust back screw to adapt door gap, check opening and closing.
5. Check opening and closing.
Type
Normal three-fold ball bearing slides
Loading capacity
45kgs
Optional size
250mm-600 mm
Installation gap
12.7±0.2 mm
Pipe Finish
Zinc-plated/ Electrophoresis black
Material
Reinforced cold rolled steel sheet
Thickness
1.0*1.0*1.2 mm / Per inch weight 61-62 grams
1.2*1.2*1.5 mm / Per inch weight 75-76 grams
Function
Smooth opening, quiet experience
PRODUCT DETAILS
Solid Bearing
2 balls in a group opening smooth steadily, which can reduce the resistance.
Anti-Collision Rubber
Super strong anti-collision rubber, keeping safety in opening and closing.
Proper Splitted Fastener
Install and remove drawers through fastener, which is a bridge between slide and drawer.
Three Sections Extension
Full extension improve the utilization of drawer space.
Extra Thickness Material
Extra thickness steel is more durable and strong loading.
AOSITE Logo
Clear logo printed, certified products giarantee from AOSITE.
PRODUCT SHOW
*45KGS load bearing
*Three folds full extention design
*Firm ball bearing
*50thousands life test
*What are the thicknesses of steel ball slide rails? What are its functions respectively? What are the different plating colors?
Thickness: (1.0*1.0*1.2) (1.2*1.2*1.5)
Functions: 1. Ordinary three-section steel ball slide rail does not have buffer.
2. Three-section damping steel ball slide rail has buffer effect.
3. Three-section rebound steel ball slide rail.
Electroplating color: 1. Galvanizing. 2. Electrophoretic Black
Force
50N-150N
Center to center
245mm
Stroke
90mm
Main material 20#
20# Finishing tube, copper, plastic
Pipe Finish
Electroplating & healthy spray paint
Rod Finish
Ridgid Chromium-plated
Optional Functions
Standard up/ soft down/ free stop/ Hydraulic double step
When the door of the cupboard is opened or closed, the most important parts are hinges and air supports. Most users don't know about the air supports. Today, I'd like to introduce the working principle of cupboard air support.
1、 What is cabinet air support
Cabinet air support is used for cabinet component movement, lifting, support, gravity balance and mechanical spring instead of sophisticated equipment. It has been widely used in woodworking machinery. Pneumatic series gas spring is driven by high pressure inert gas, the supporting force is constant in the whole working stroke, and has a buffer mechanism to avoid the impact in place, which is the biggest feature superior to ordinary spring, and has the advantages of convenient installation, safe use and no maintenance.
2、 How it works
The iron pipe is filled with high pressure gas, and there is a through hole on the moving piston to ensure that the pressure in the whole iron pipe will not change with the movement of the piston. The force of the pneumatic support rod is mainly the pressure difference between the iron pipe and the external atmospheric pressure acting on the cross section of the piston rod. The pneumatic support rod is driven by high pressure inert gas, and the support force is stable in the whole working stroke. It also has a buffer mechanism to avoid the impact in place, which is the biggest feature superior to the ordinary support rod. And it has the advantages of convenient installation, safe use and no maintenance. Since the air pressure in the iron pipe is constant and the cross section of the piston rod is fixed, the force of the pneumatic support rod remains stable throughout the stroke.
3、 Shopping skills
Product appearance: the paint color and greasy level of the air support cylinder end of the cabinet, such as some poor quality air support manufacturers ignore these small problems. Professional air support manufacturers pay attention to every detail of the product, so they can pay attention to it when they choose. Whether there are pits or scratches on the appearance of the air support rod will damage the sealing device inside the cylinder when it is used, so that the air support will leak after a period of time, resulting in that the air support can not be used without pressure.
PRODUCT DETAILS
PRODUCT ITEM NO.
AND USAGE
C15-301
Usage: turn on the steam-driven support
Force Specifications: 50N-150N
Application:make the right turn on the weight
of wooden/aluminum frame doors reveal a
steady rate slowly upward.
C15-302
Uses: Hydraulic next turn support
Application: can the next turn wooden/aluminum
door frame slow steady downward turn.
C15-303
Usage: turn on the steam-driven support of
any stop
Force Specifications: 50N-120N
Application:make the right turn on the weight
of wooden/ aluminum frame door 30°-90°
between the opening angle of any intention to
stay.
C15-304
Uses: Hydraulic Flip Support
Force Specifications: 50N-150N
Application: make the right turn on the weight of
wooden/aluminum frame door slowly tilting
upward, and 60°-90° in the angle created between
the opening buffer.
OUR SERVICE
The service life is calculated by the number of times it can be fully expanded and contracted. Finally, the force value changes during the stroke. The ideal gas spring should keep the force value unchanged throughout the stroke. However, due to design and processing factors, the force value of the gas spring in the stroke inevitably changes.
The magnitude of change is an important criterion for measuring a ring with good quality of gas spring. The smaller the magnitude of change, the better the quality of gas spring, and the worse the reverse.
Product name: Free stop gas spring
Thickness of panel: 16/19/22/26/28mm
Panel 3D adjustment: +2mm
Height of cabinet: 330-500mm
Width of cabinet: 600-1200mm
Material: Steel/plastic
Finish: Nickel plating
Applicable scope: Kitchen hardware
Style: Modern
Product features
1. Perfect design for decorative cover
Achieve beautiful installation design effect, save space with fusion cabinet inner wall
2. Clip-on design
Panels can be quick assemble & disassemble
3. Free stop
The cabinet door can stay at the unfolding angle freely from 30 to 90 degrees.
4. Silent mechanical design
The damping buffer makes the gas spring gently and silently flip up
Multiple load-Bearing tests, 50,000 times trial tests, and high-strength anti-corrosion tests.
Standard-make good to be better
ISO9001 Quality Management System Authorization, Swiss SGS Quality Testing and CE Certification.
Service-Promising Value You Can Get
24-hour response mechanism
1-to-1 all-round professional service
INNOVATION-EMBRACE CHANGES
Persist in the innovation leading, the development
FAQS:
1. What is your factory product range?
Hinges, gas spring, ball bearing slide, under-mount drawer slide, metal drawer box, handle.
2. Do you provide samples? Is it free or extra?
Yes, we provide free samples.
3. How long does the normal delivery time take?
About 45 days.
PRODUCT OVERVIEW
Furniture hinges are an essential component in household furniture, enabling doors and cabinets to open and close smoothly. Their main advantage lies in the ease of installation, making them incredibly convenient for everyday use. With their secure and sturdy design, furniture hinges ensure the reliability and longevity of your furniture, allowing you to comfortably organize your space without worrying about the door or cabinet falling off or becoming loose. The seamless integration of furniture hinges elevates the functionality of your living spaces, making them a practical and indispensable addition to any home.
SPECIFICATIONS
Product name
Furniture Hardware Hinge For Cabinet Door
Opening angle
105°
Diameter of hinge cup
35mm
Pipe Finish
Nickel plated
Main material
Cold-rolled steel
Cover space adjustment
0-5mm
The depth adjustment
-2mm/+3.5mm
Base adjustment (up/down)
-2mm/+2mm
Articulation cup altitude
12mm
Door drilling size
3-7mm
Door thickness
14-20mm
PRODUCT FEATURES
Two dimensional screw
The adjustable screw is used for distance adjustment,so that both sides of the cabinet door can be more suitable.
Booster arm
Extra thick steel sheet increases the work ability and service life.
AOSITE logo
Clearly logo printed,certified the guarantee of our products.
CERTIFICATE
zhengshu1 (3)
zhengshu2 (3)
zhengshu3 (3)
zhengshu4 (2)
zhengshu5
2 (17)
3 (13)
INSTALLATION
图片13 (12)
PRODUCT PACKAGING
图片14 (12)
图片15 (8)
FAQ
1
What is your factory product range?
Hinges, Gas spring, Tatami system, Ball bearing slide, Handles
2
Do you provide samples? Is it free or extra?
Yes, we provide free samples
3
How long does the normal delivery time take?
About 45 days
4
What kind of payments does support?
T/T
5
Do you offer ODM services?
Yes, ODM is welcome
6
How long is the shelf life of your products?
More than 3 years
7
Where is your factory, can we visit it?
Jinsheng Industry Park, Jini Town, Gaoyao District, Zhaoqing, Guangdong, China
Drawer handle is an important part of drawer, so the quality of drawer handle is closely related to the quality of drawer handle and whether the drawer is convenient to use. How do we choose drawer handles? 1. it is best to choose drawer handles of well-known brands, such as AOSITE, so as to...
*OEM technical support *48 hours salt&spray test *50,000 times opening and closing *Monthly production capacity 600,0000 pcs *4-6 seconds soft closing Detail display a. Selected raw material The hinge theme adopts German standard cold rolled steel,the product is strong and durable b. Sealed...
