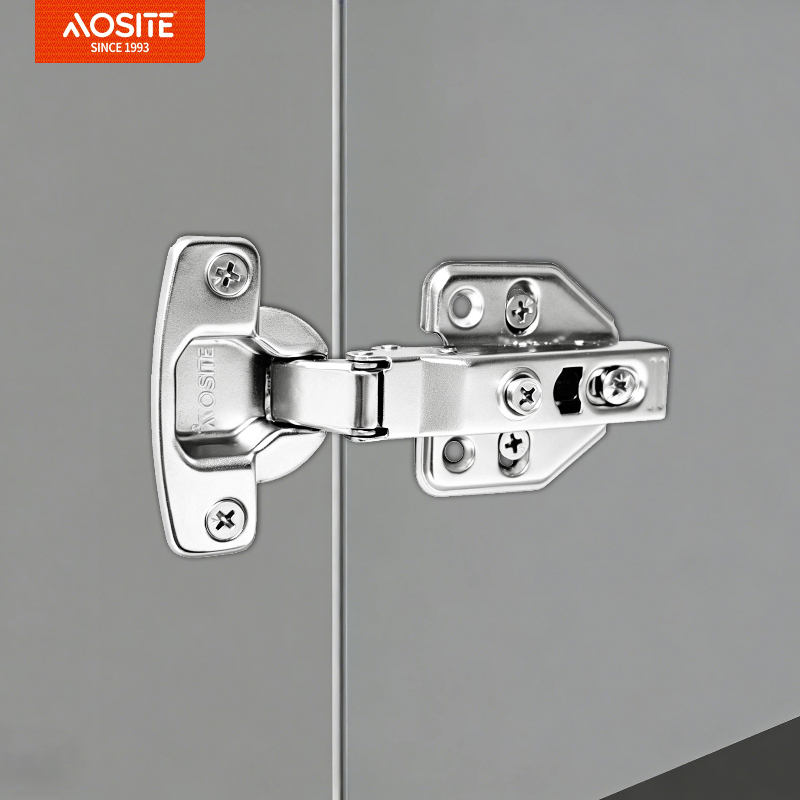

Inseparable Hydraulic Damping Hinge For Cupboard Door
Two way hydraulic damping cupboard door hinge Hinge, as an important furniture accessory connecting the cabinet door and the cabinet, is functionally divided into one way and two way; in terms of material, it is divided into cold-rolled steel and stainless steel. Among them, the hydraulic hinge...
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Hinge, as an important furniture accessory connecting the cabinet door and the cabinet, is functionally divided into one way and two way; in terms of material, it is divided into cold-rolled steel and stainless steel. Among them, the hydraulic hinge can bring cushion when the cabinet door is closed.
Detail display
a. Material process
Selection of cold rolled steel material,using electroplating oxidation process to enjoy a separate oxidation protection layer
b. Silent buffer hinge
Resistance ram plus nylon card buckle,open and close more stable and silent,creating a smooth,quiet closure
c. Bold rivet
Barse rivets fixed,open and close many times,do not fall off,durable
d. Built-in buffer
The oil cylinder adopts forged oil cylinder,can withstand destructive force pressure,no oil leakage,no explosion cylinder,sealed hydraulic rotation,buffer opening and closing is not easy to oil leakage
e. Adjust the screw
Adjustment screw for extrusion wire cone attack screw,not easy to slide teeth
f. 50,000 open and close tests
Reach the national standard 50,000 times opening and closing,product quality is guaranteed
Hinge, as an important furniture accessory connecting the cabinet door and the cabinet, is functionally divided into one way and two way; in terms of material, it is divided into cold-rolled steel and stainless steel. Among them, the hydraulic hinge can bring cushion when the cabinet door is closed.
PRODUCT OVERVIEW
Our furniture hinges are designed with a unique buffer closing feature to ensure seamless and quiet closing of your cabinet doors. The hinge's buffer mechanism slows down the closing action, eliminating any slam effect, which not only protects the furniture from damage but also preserves the peace and quiet of your home. Our hinges are engineered with high-quality materials and advanced technology to ensure maximum durability, strength and smooth operation. Upgrade your furniture with our hinges and experience the ultimate convenience and comfort of a cushioned closing mechanism.
SPECIFICATIONS
Product name
Inseparable hydraulic damping hinge(two way)
Hole distance
48mm
Door gap adjustment(forward & backward)
-2mm/+2mm
Door panel thickness
14-20mm
Diameter of hinge cup
35mm
Cup depth
12mm
Opening angel
110°
Overlay position adjustment(left & right)
0-6mm
Up & down adjustment
-2mm/+2mm
Door drilling size(K)
3-7mm
PRODUCT FEATURES
Material process
Selection of cold rolled steel material,using electroplating oxidation process to enjoy a separate oxidation protection layer
Silent buffer hinge
Resistance ram plus nylon card buckle,open and close more stable and silent,creating a smooth,quiet closure
Bold rivet
Barse rivets fixed,open and close many times,do not fall off,durable
Built-in buffer
The oil cylinder adopts forged oil cylinder,can withstand destructive force pressure,no oil leakage,no explosion cylinder,sealed hydraulic rotation,buffer opening and closing is not easy to oil leakage
Adjust the screw
Adjustment screw for extrusion wire cone attack screw,not easy to slide teeth
50,000 open and close tests
Reach the national standard 50,000 times opening and closing,product quality is guaranteed
CERTIFICATE
1 (41)
2 (39)
3 (35)
4 (22)
5 (22)
2 (17)
3 (13)
INSTALLATION
PRODUCT PACKAGING
1 (18)
2 (16)
FAQ
1
What is your factory product range?
Hinges, Gas spring, Tatami system, Ball bearing slide, Handles
2
Do you provide samples? Is it free or extra?
Yes, we provide free samples
3
How long does the normal delivery time take?
About 45 days
4
What kind of payments does support?
T/T
5
Do you offer ODM services?
Yes, ODM is welcome
6
How long is the shelf life of your products?
More than 3 years
7
Where is your factory, can we visit it?
Jinsheng Industry Park, Jini Town, Gaoyao District, Zhaoqing, Guangdong, China
