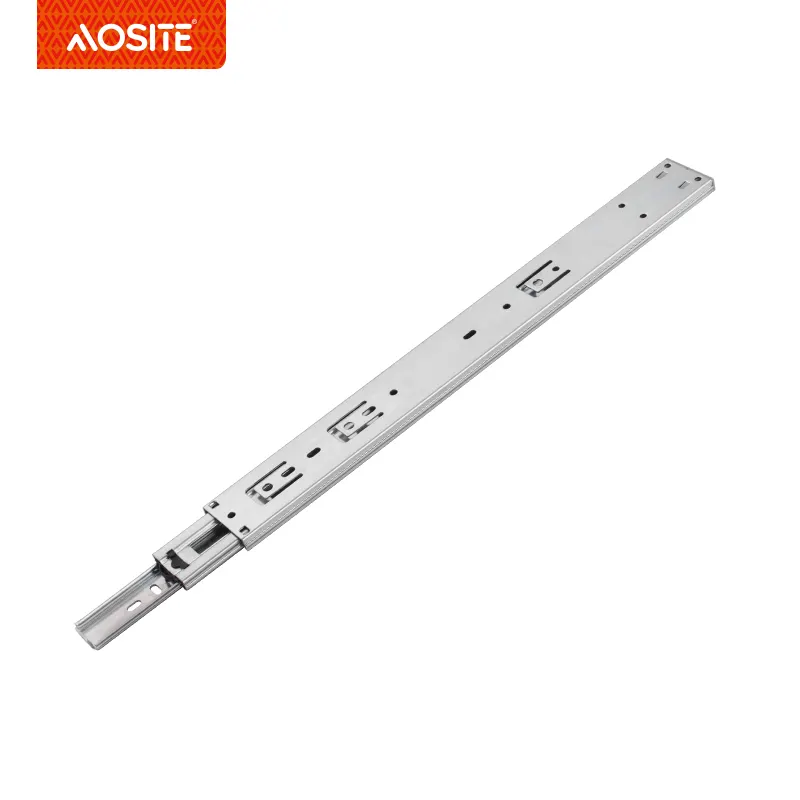

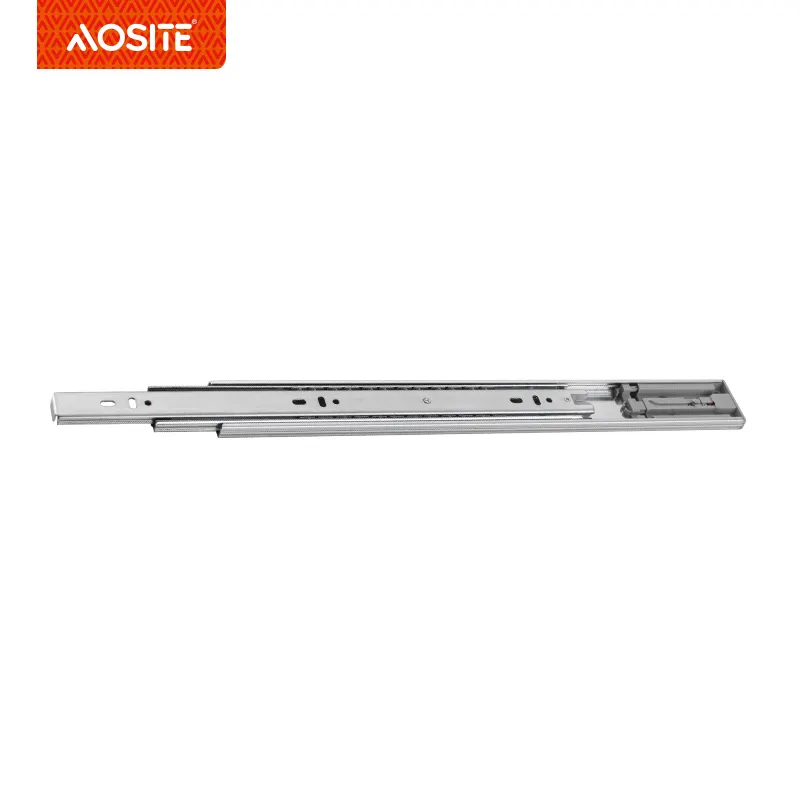

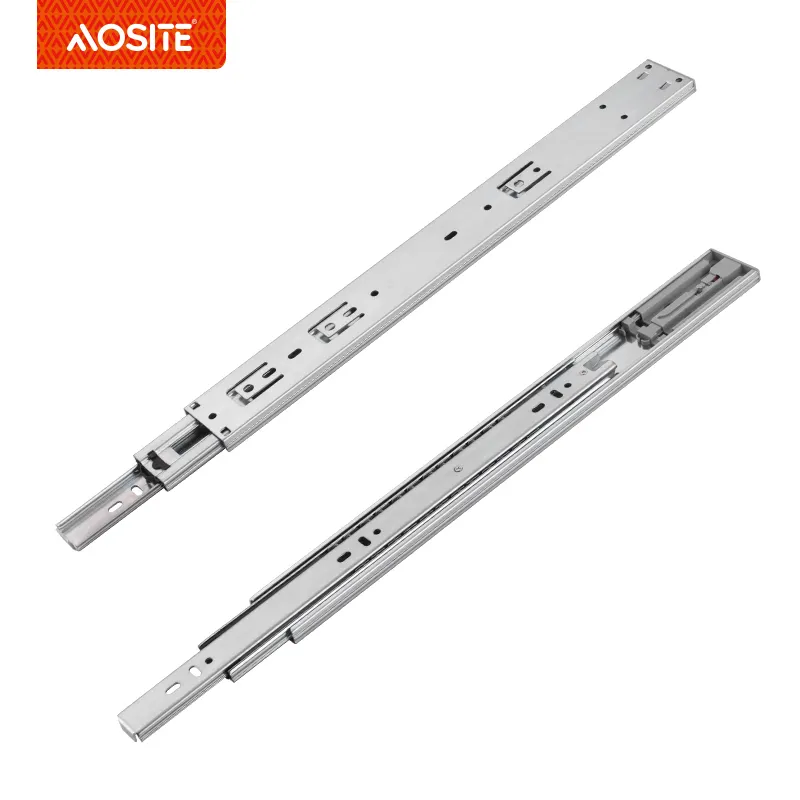

Drawer Slide Wholesale Customize

PRODUCT DETAILS

PRODUCT DETAILS

Solid Bearing 2 balls in a group opening smooth steadily, which can reduce the resistance.	Anti-Collision Rubber Super strong anti-collision rubber, keeping safety in opening and closing.

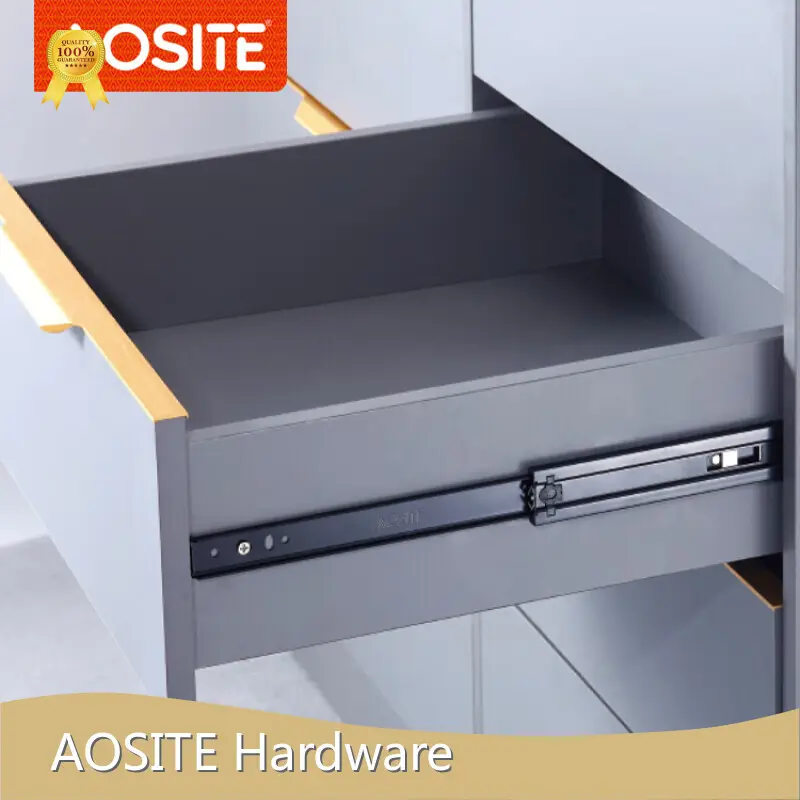

Proper Splitted Fastener Install and remove drawers through fastener, which is a bridge between slide and drawer.	Three Sections Extension Full extension improve the utilization of drawer space.
Extra Thickness Material Extra thickness steel is more durable and strong loading.	AOSITE Logo Clear logo printed, certified products giarantee from AOSITE.

When the door of the cupboard is opened or closed, the most important parts are hinges and air supports. Most users don't know about the air supports. Today, I'd like to introduce the working principle of cupboard air support.

1、 What is cabinet air support

Cabinet air support is used for cabinet component movement, lifting, support, gravity balance and mechanical spring instead of sophisticated equipment. It has been widely used in woodworking machinery. Pneumatic series gas spring is driven by high pressure inert gas, the supporting force is constant in the whole working stroke, and has a buffer mechanism to avoid the impact in place, which is the biggest feature superior to ordinary spring, and has the advantages of convenient installation, safe use and no maintenance.

2、 How it works

The iron pipe is filled with high pressure gas, and there is a through hole on the moving piston to ensure that the pressure in the whole iron pipe will not change with the movement of the piston. The force of the pneumatic support rod is mainly the pressure difference between the iron pipe and the external atmospheric pressure acting on the cross section of the piston rod. The pneumatic support rod is driven by high pressure inert gas, and the support force is stable in the whole working stroke. It also has a buffer mechanism to avoid the impact in place, which is the biggest feature superior to the ordinary support rod. And it has the advantages of convenient installation, safe use and no maintenance. Since the air pressure in the iron pipe is constant and the cross section of the piston rod is fixed, the force of the pneumatic support rod remains stable throughout the stroke.

3、 Shopping skills

Product appearance: the paint color and greasy level of the air support cylinder end of the cabinet, such as some poor quality air support manufacturers ignore these small problems. Professional air support manufacturers pay attention to every detail of the product, so they can pay attention to it when they choose. Whether there are pits or scratches on the appearance of the air support rod will damage the sealing device inside the cylinder when it is used, so that the air support will leak after a period of time, resulting in that the air support can not be used without pressure.

PRODUCT DETAILS

PRODUCT ITEM NO.

AND USAGE

C15-301 Usage: turn on the steam-driven support Force Specifications: 50N-150N Application:make the right turn on the weight of wooden/aluminum frame doors reveal a steady rate slowly upward.	C15-302  Uses: Hydraulic next turn support  Application: can the next turn wooden/aluminum   door frame slow steady downward turn.
C15-303 Usage: turn on the steam-driven support of any stop Force Specifications: 50N-120N Application:make the right turn on the weight of wooden/ aluminum frame door 30°-90° between the opening angle of any intention to stay.	C15-304 Uses: Hydraulic Flip Support Force Specifications: 50N-150N Application: make the right turn on the weight of wooden/aluminum frame door slowly tilting upward, and 60°-90° in the angle created between the opening buffer.

Product name: Free stop gas spring

Thickness of panel: 16/19/22/26/28mm

Panel 3D adjustment: +2mm

Height of cabinet: 330-500mm

Width of cabinet: 600-1200mm

Material: Steel/plastic

Finish: Nickel plating

Applicable scope: Kitchen hardware

Style: Modern

Product features

1. Perfect design for decorative cover

Achieve beautiful installation design effect, save space with fusion cabinet inner wall

2. Clip-on design

Panels can be quick assemble & disassemble

3. Free stop

The cabinet door can stay at the unfolding angle freely from 30 to 90 degrees.

4. Silent mechanical design

The damping buffer makes the gas spring gently and silently flip up

Advantages

Advanced equipment, Superb Craftsmanship, High-Quality, considerate after-sales Service, Worldwide Recognition & Trust.

Quality-Reliable Promise for you

Multiple load-Bearing tests, 50,000 times trial tests, and high-strength anti-corrosion tests.

Standard-make good to be better

ISO9001 Quality Management System Authorization, Swiss SGS Quality Testing and CE Certification.

Service-Promising Value You Can Get

24-hour response mechanism

1-to-1 all-round professional service

INNOVATION-EMBRACE CHANGES

Persist in the innovation leading, the development

FAQS:

1. What is your factory product range?

Hinges, gas spring, ball bearing slide, under-mount drawer slide, metal drawer box, handle.

2. Do you provide samples? Is it free or extra?

Yes, we provide free samples.

3. How long does the normal delivery time take?

About 45 days.
