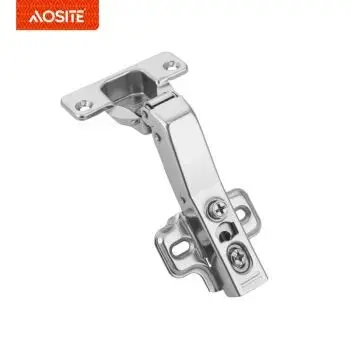

45° Special Angle Slide-On Hinge: Two Way Kitchen Cabinet Hardware – Furniture Hardware Manufacturers

Type: Clip-on Special-angel Hydrulic Damping Hinge
Opening angle: 45°
Diameter of hinge cup: 35mm
Pipe Finish: Nickel plated
Main material: Cold-rolled steel

Inquiry

The ability of independent innovation is of great significance to improving the product design and international competitiveness of our Tatami Remote Control Electric Lift, Luxury Furniture Handle, Cabinet Gas Struts. Our company keeps pace with the times. Your inquiry might be extremely welcomed plus a win-win prosperous development are what we've been expecting. In the future, the essence of corporate competition will be based on product competition and talent competition as the core.

45° Special Angle Slide-On Hinge: Two Way Kitchen Cabinet Hardware – Furniture Hardware Manufacturers 2

45° Special Angle Slide-On Hinge: Two Way Kitchen Cabinet Hardware – Furniture Hardware Manufacturers 3

45° Special Angle Slide-On Hinge: Two Way Kitchen Cabinet Hardware – Furniture Hardware Manufacturers 4

Type	Clip-on Special-angel Hydrulic Damping Hinge
Opening angle	45°
Diameter of hinge cup	35mm
Pipe Finish	Nickel plated
Main material	Cold-rolled steel
Cover space adjustment	0-5mm
The depth adjustment	-2mm/+3.5mm
Base adjustment(up/down)	-2mm/+2mm
Articulation cup altitude	11.3mm
Door drilling size	3-7mm
Door thickness	14-20mm

PRODUCT DETAILS


TWO-DIMENSIONAL SCREW The adjustable screw is used for distance adjustment,so that both sides of the cabinet door can be more suitable.	EXTRA THICK STEEL SHEET The thickness of hinge from us is double than current market,which can strengthen the service life of hinge.

SUPERIOR CONNECTOR Adopting with high quality metal connector,not easy to damage.	HYDRAULIC CYLINDER Hydraulic buffer makes a better effect of a quiet environment.

BOOSTER ARM Extra thick steel sheet increases the work ability and service life.	AOSITE LOGO Clearly logo printed,certified the guarantee of our products.

The difference between agood hinge and a bad hinge

Open the hinge at 95 degrees and press both sides of the hinge with your hands.

Observe that the supporting spring leaf is not deformed or broken. It is a very strong

product with qualified quality. Poor quality hinges have short service life and are easy

to fall off. For example, cabinet doors and hanging cabinets fall off due to poor hinge quality.

INSTALLATION DIAGRAM


	According to the installation data,drilling at the proper position of the door panel	Installing the hinge cup.

According to the installation data, mounting base to connect the cabinet door.	Adjust back screw to adapt door gap.	Check opening and closing.

45° Special Angle Slide-On Hinge: Two Way Kitchen Cabinet Hardware – Furniture Hardware Manufacturers 13

45° Special Angle Slide-On Hinge: Two Way Kitchen Cabinet Hardware – Furniture Hardware Manufacturers 14

45° Special Angle Slide-On Hinge: Two Way Kitchen Cabinet Hardware – Furniture Hardware Manufacturers 15

45° Special Angle Slide-On Hinge: Two Way Kitchen Cabinet Hardware – Furniture Hardware Manufacturers 16

45° Special Angle Slide-On Hinge: Two Way Kitchen Cabinet Hardware – Furniture Hardware Manufacturers 17

45° Special Angle Slide-On Hinge: Two Way Kitchen Cabinet Hardware – Furniture Hardware Manufacturers 18

45° Special Angle Slide-On Hinge: Two Way Kitchen Cabinet Hardware – Furniture Hardware Manufacturers 19

45° Special Angle Slide-On Hinge: Two Way Kitchen Cabinet Hardware – Furniture Hardware Manufacturers 20

TRANSACTION PROCESS

1. Inquiry

2. Understand customer needs

3. Provide solutions

4. Samples

5. Packaging Design

6. Pricing

7. Trial orders/orders

8. Prepaid 30% deposit

9. Arrange production

10. Settlement balance 70%

11. Loading

45° Special Angle Slide-On Hinge: Two Way Kitchen Cabinet Hardware – Furniture Hardware Manufacturers 21

45° Special Angle Slide-On Hinge: Two Way Kitchen Cabinet Hardware – Furniture Hardware Manufacturers 22

45° Special Angle Slide-On Hinge: Two Way Kitchen Cabinet Hardware – Furniture Hardware Manufacturers 23

'Quality to start with, Honesty as base, Sincere company and mutual profit' is our idea, as a way to build constantly and pursue the excellence for BT201-45° Slide-on special-angle Kitchen cabinet hinge two way. We uphold the concept of returning resources to society and always adhere to the development of charity. Moreover, customer satisfaction is our eternal pursuit.
