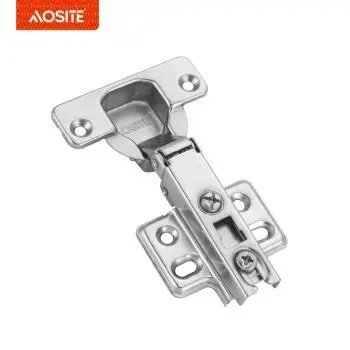

One Way Hinge Slide for Furniture - A Simple and Direct Solution from Furniture Hardware Manufacturers

Type: Slide-on two way hinge
Opening angle: 110°
Diameter of hinge cup: 35mm
Pipe Finish: Nickel plated
Main material: Cold-rolled steel
Cover space adjustment: 0-5mm

Inquiry

We can always satisfy our respected customers with our good quality, good price and good service due to we are more professional and more hard-working and do it in cost-effective way for kitchens handles, Slide On Hinge, Angle Cabinet Hinge 45°. Our enterprises are equipped with professional factory building, modern office environment, advanced production equipment and a group of high-quality talented employees. Our professional sales engineers are equipped to provide customers with economical and practical products.

One Way Hinge Slide for Furniture - A Simple and Direct Solution from Furniture Hardware Manufacturers 2

One Way Hinge Slide for Furniture - A Simple and Direct Solution from Furniture Hardware Manufacturers 3

One Way Hinge Slide for Furniture - A Simple and Direct Solution from Furniture Hardware Manufacturers 4

Type	Slide-on two way hinge
Opening angle	110°
Diameter of hinge cup	35mm
Pipe Finish	Nickel plated
Main material	Cold-rolled steel
Cover space adjustment	0-5mm
The depth adjustment	-2mm/+3.5mm
Base adjustment (up/down)	-2mm/+2mm
Articulation cup altitude	11.3mm
Door drilling size	3-7mm
Door thickness	14-20mm

EFFICIENT BUFFERING AND REJECTION OF VIOLENCE:

The two-stage force hydraulic technology and damping system can effectively alleviate the impact force when opening and closing the door, so that the service life of the door and the hinge can be greatly improved.

No matter how your door overlay are, AOSITE hinges series always can provides reasonable solutions for each application.

This is a special type of hinge, with 110 degree opening angle. About mounting plate,this hinge have slide on pattern. Our standard includes hinges, mounting plates. Screws and decorative cover caps are sold separately.

PRODUCT DETAILS

	Front and rear adjustment The size of the gap is adjusted by screws. Door left and right adjustment Left and right deviation screws can be adjusted freely.
Production date High quality promision rejection any quanlity problems.
	Superior connector Adoping with high quality metal connector not easy to damage.
Anti-counterfeiting LOGO A clear AOSITE anti-counterfeiting LOGO is printed in the plastic cup.

One Way Hinge Slide for Furniture - A Simple and Direct Solution from Furniture Hardware Manufacturers 9

One Way Hinge Slide for Furniture - A Simple and Direct Solution from Furniture Hardware Manufacturers 10

One Way Hinge Slide for Furniture - A Simple and Direct Solution from Furniture Hardware Manufacturers 11

One Way Hinge Slide for Furniture - A Simple and Direct Solution from Furniture Hardware Manufacturers 12

One Way Hinge Slide for Furniture - A Simple and Direct Solution from Furniture Hardware Manufacturers 13

One Way Hinge Slide for Furniture - A Simple and Direct Solution from Furniture Hardware Manufacturers 14

One Way Hinge Slide for Furniture - A Simple and Direct Solution from Furniture Hardware Manufacturers 15

One Way Hinge Slide for Furniture - A Simple and Direct Solution from Furniture Hardware Manufacturers 16

One Way Hinge Slide for Furniture - A Simple and Direct Solution from Furniture Hardware Manufacturers 17

One Way Hinge Slide for Furniture - A Simple and Direct Solution from Furniture Hardware Manufacturers 18

One Way Hinge Slide for Furniture - A Simple and Direct Solution from Furniture Hardware Manufacturers 19

We firmly believe that with the support of our strong technology and rich experience, our (B1) One Way Hinge Slide on Furniture Hinge will surely bring you an unprecedented user experience. Our company values the adherence to innovation-driven strategy. Although our brand has been widely recognized by the market, we still adhere to the path of sustainable development, always in line with the belief that quality is the survival of the enterprise, the customer is the source of enterprise development.

Hot Tags: slide on two way hinge, China, manufacturers, suppliers, factory, wholesale, bulk, Hydraulic Damper 90° Hinge, Lid Stay Gas Spring, Kitchen Cabinet Hinges, glass hinge, concealed drawer slides, Slide On Angle Wardrobe Hinge 90°

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
