Aosite, since 1993

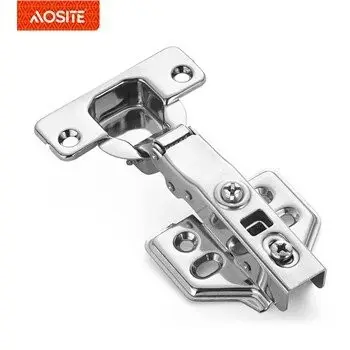

105 Degree 3-Way Adjustable Soft Close Cabinet Hinge - Stainless Steel Damping Hinge 1
105 Degree 3-Way Adjustable Soft Close Cabinet Hinge - Stainless Steel Damping Hinge 1

105 Degree 3-Way Adjustable Soft Close Cabinet Hinge - Stainless Steel Damping Hinge

Opening angle: 100°
Pipe finish: Electrolysis
Diamater of hinge cup: 35mm
Main material: Stainless steel

Inquiry

Each Hydraulic Damper 90 Hinge, Wide Angle Hinge, 35mm Cup Hinge embodies wisdom and hard work, which embodies our professionalism and customer first service tenet. Technical innovation and service consciousness are the core strengths of our company, and service consciousness is the key to share the value for our customers. Customers are the root of our company's survival and development. To create value for customers and make every investment of customers produce the maximum benefit is our eternal purpose.

105 Degree 3-Way Adjustable Soft Close Cabinet Hinge - Stainless Steel Damping Hinge 2

105 Degree 3-Way Adjustable Soft Close Cabinet Hinge - Stainless Steel Damping Hinge 3

Product name: Stainless steel inseparable hinge

Opening angle: 100°

Pipe finish: Electrolysis

Diamater of hinge cup: 35mm

Main material: Stainless steel

Cover space adjustment: 0-5mm

The depth adjustment: -2mm/+3.5mm

Base adjustment (up/down): -2mm+2mm

Articulation cup altitude: 11.5mm

Door drilling size: 3-7mm

Door thickness: 14-20mm


105 Degree 3-Way Adjustable Soft Close Cabinet Hinge - Stainless Steel Damping Hinge 4

105 Degree 3-Way Adjustable Soft Close Cabinet Hinge - Stainless Steel Damping Hinge 5

105 Degree 3-Way Adjustable Soft Close Cabinet Hinge - Stainless Steel Damping Hinge 6


Detail Display

a. Superior manufacturing technology

201/304 stainless steel material, wear-resistant, not easy to rust


b. Extended hydraulic cylinder

Sealed hydraulic buffer, not easy to leak oil, silent opening and closing


c. Hole distance: 48MM

Meet the requirements of the longitudinal bearing capacity of the hinge


d. 7-piece buffer booster arm

To balance the opening and closing force, strong buffering ability


e. 50,000 open and close tests

Reach the national standard 50,000 times of opening and closing tests, product quality is guaranteed


f. Salt spray test

Passed 72 hours of acid salt spray test, super rust-proof

105 Degree 3-Way Adjustable Soft Close Cabinet Hinge - Stainless Steel Damping Hinge 7

Inseparable hinge

Shown as diagram, put the hinge with base on the door fix the hinge on the door with screw. Then the assembling us done. Disassemble it by loosening locking screws. Shown as diagram.


Standard-make good to be better

ISO9001 Quality Management System Authorization, Swiss SGS Quality Testing and CE Certification.


Service-Promising Value You Can Get

24-hour response mechanism

1-to-1 all-round professional service


105 Degree 3-Way Adjustable Soft Close Cabinet Hinge - Stainless Steel Damping Hinge 8

105 Degree 3-Way Adjustable Soft Close Cabinet Hinge - Stainless Steel Damping Hinge 9

105 Degree 3-Way Adjustable Soft Close Cabinet Hinge - Stainless Steel Damping Hinge 10

105 Degree 3-Way Adjustable Soft Close Cabinet Hinge - Stainless Steel Damping Hinge 11

105 Degree 3-Way Adjustable Soft Close Cabinet Hinge - Stainless Steel Damping Hinge 12

105 Degree 3-Way Adjustable Soft Close Cabinet Hinge - Stainless Steel Damping Hinge 13


We have established long-term, stable and extensive contacts and cooperation relationships, and have established a good corporate fertility in the 1/2" Overlay Soft Close Cabinet Hinge, 105 Degree Cabinet Hidden Hinge, 3 Way Adjustable Hidden Face Frame Kitchen Cabinet Door Hinges, Nickel Plated Stainless industry. We pay attention to the practical effect, energy conservation and environmental protection of our products, adhere to the innovation oriented, and constantly develop new products to meet the needs of customers and the market. With the care and support from the government and all walks of life, our company has gradually developed into a large enterprise group with wide influence at home and abroad through the hard work and determination of all our employees.

Hot Tags: stainless steel inseparable damping hinge, China, manufacturers, suppliers, factory, wholesale, bulk, Half Pull Hidden Damping Slide, kitchen drawer slides, two way undermount drawer slides, Hydraulic Air Pump, kitchen cabinet door hinges soft close, Cabinet Gas Pump
Contact us
we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
