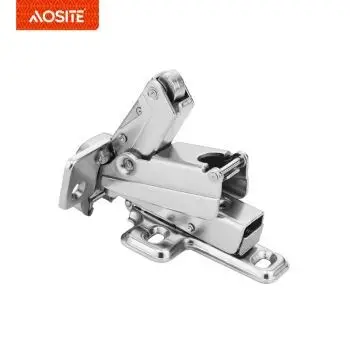

European-style Window and Door Hinge in 20mm Aluminum Alloy - Directly from Our Manufacturers

Type: Clip-on Special-angel Hydraulic Damping Hinge
Opening angle: 165°
Diameter of hinge cup: 35mm
Scope: Cabinets, wood
Finish: Nickel plated
Main material: Cold-rolled steel

Inquiry

Hoping that with more modern management, more exquisite craftsmanship and better service, we will be pushing our superior Cabinet Slide, Cabinet Gas Struts, Metal Handle worldwide. We have a thorough knowledge of how to deliver products or services to meet the needs of clients. We believe that our company's professional, pragmatic and innovative technology and the attitude of focusing on research and development products are our pursuit of higher service concept for customers. Our company's perfect after-sales tracking service system will bring the product value of super value and trust to our customers. Our company takes the good faith as the key link, takes the quality as the guarantee, takes the customer as the center, becomes the industry unceasingly enhances the product quality and the service level standard.

European-style Window and Door Hinge in 20mm Aluminum Alloy - Directly from Our Manufacturers 2

European-style Window and Door Hinge in 20mm Aluminum Alloy - Directly from Our Manufacturers 3

European-style Window and Door Hinge in 20mm Aluminum Alloy - Directly from Our Manufacturers 4

Type	Clip-on Special-angel Hydraulic Damping Hinge
Opening angle	165°
Diameter of hinge cup	35mm
Scope	Cabinets, wood
Finish	Nickel plated
Main material	Cold-rolled steel
Cover space adjustment	0-5mm
The depth adjustment	-2mm/ +3.5mm
Base adjustment (up/down)	-2mm/ +2mm
Articulation cup altitude	11.3mm
Door drilling size	3-7mm
Door thickness	14-20mm

PRODUCT DETAILS

	TWO-DIMENSIONAL SCREW The adjustable screw is used for distance adjustment,so that both sides of the cabinet door can be more suitable.
CLIP-ON HINGE Gently pressing the button then will remove the base,avoiding damage the cabinet doors by multiple installation and remove.Clip can be more easier to install and clean.
	SUPERIOR CONNECTOR Adopting with high quality metal connector,not easy to damage.
HYDRAULIC CYLINDER Hydraulic buffer makes a better effect of a quiet environment.

INSTALLATION


	According to the installation data, drilling at the proper position of the door panel.	Installing the hinge cup.

According to the installation data, mounting base to connect the cabinet door.	Adjust back screw to adapt door gap, check opening and closing.	Opening hole in cabinet panel, drilling hole according to the drawing.

European-style Window and Door Hinge in 20mm Aluminum Alloy - Directly from Our Manufacturers 11

European-style Window and Door Hinge in 20mm Aluminum Alloy - Directly from Our Manufacturers 12

European-style Window and Door Hinge in 20mm Aluminum Alloy - Directly from Our Manufacturers 13

European-style Window and Door Hinge in 20mm Aluminum Alloy - Directly from Our Manufacturers 14

WHO ARE WE?

AOSITE always adheres to the philosophy of "Artistic Creations, Intelligence in Home Making". It is dedicated to manufacturing excellent quality hardware with originality and creating comfortable homes with wisdom, letting countless of families enjoy the convenience, comfort, and joy brought by household hardware.

European-style Window and Door Hinge in 20mm Aluminum Alloy - Directly from Our Manufacturers 15

European-style Window and Door Hinge in 20mm Aluminum Alloy - Directly from Our Manufacturers 17

European-style Window and Door Hinge in 20mm Aluminum Alloy - Directly from Our Manufacturers 18

European-style Window and Door Hinge in 20mm Aluminum Alloy - Directly from Our Manufacturers 19

European-style Window and Door Hinge in 20mm Aluminum Alloy - Directly from Our Manufacturers 20

European-style Window and Door Hinge in 20mm Aluminum Alloy - Directly from Our Manufacturers 21

We strive for excellence in all aspects of our work and every link, never carelessly, and wholeheartedly contribute to the 20mm European Groove Aluminium Alloy Window and Door Hinge industry. We insist on being market-oriented, quality for survival, and management for efficiency as our company's guiding ideology. Relying on the huge production capacity and service capacity, we will make the most rapid feedback for your orders and needs.
