Effortless 360 Degree Opening Stainless Steel Glass Door Floor Spring/Hinge for Cabinets - Furniture Hardware Manufacturer
Type: Stainless Steel inseparable Hydraulic - damping hinge
Opening angle: 100°
Diameter of hinge cup: 35mm
Finish: Electrolysis
Main material: stainless steel
Our company has automated production equipment and advanced testing equipment, and we continuously improve the quality of front door handle, kitchens handles, Concealed Hinge with a sound quality management system. We have done a good job in strategic layout and business structure optimization. We actively introduce foreign advanced technology and continuously improve and perfect our products.
304/SUS304 Stainless steel cabinet door hinges with 100 degree opening angle,clip-on and inseparable are available.Our hinges are adopting high quality material ,with high quality and reasonable price,welcome to make an order right now |
Type | Stainless Steel inseparable Hydraulic - damping hinge |
Opening angle | 100° |
Diameter of hinge cup | 35mm |
Finish | Electrolysis |
Main material | stainless steel |
Cover space adjustment | 0-5mm |
The depth adjustment | -2mm/ +3.5mm |
Base adjustment (up/down) | -2mm/ +2mm |
Articulation cup altitude | 12mm |
Door drilling size | 3-7mm |
Door thickness | 14-20mm |

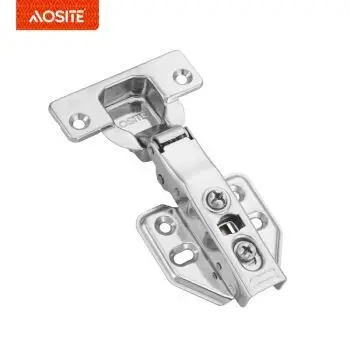

Model K12 is one way hydraulic hinges, this hinge’s main material is stainless steel,which we have 304 and SUS304 material for choice,so this product will have superior ability to anti-rust.This type of hinge is inseparable mounting plate. Our standards Includes hinges, mounting plates,.Screws and decorative cover caps are sold separately. |
PRODUCT DETAILS
TWO-DIMENSIONAL SCREWThe adjustable screw is used for distance adjustment, so both sides of the cabinet door can be more suitable. | |
EXTRA THICK STEEL SHEETThe thickness of hinge from us is double than current market,which can strengthen the service life of hinge | |
BLANK PRESSING HINGE CUPLarge area blank pressing hinge cup can enable the operation between cabinet door and hinge more steady . | |
HYDRAULIC CYLINDERHydraulic buffer makes a better effect of a quiet environment. | |
BOOSTER ARMExtra thick steel sheet increases the work ability and service life . | |
PRODUCTION DATEHigh quality permission,rejection any quality problems. |
How To Choose Cold Rolled Steel And Stainless Steel Material? The choice of cold rolled steel and stainless steel should be different from the use scenarios, if in damp places. For example, stainless steel is used in kitchen and bathroom, otherwise cold rolling steel can be used in bedroom study. |
How To Choose Your Door Overlays?
Full Overlay The full cover is called straight bending and straight arms | Door panel covers the side panel The cover is suitable for the cabinet body, which covers the side panels. |
Half Overlay Half cover is also called middle bend and small arm | Door panel covers half of the side panel The cupboard door covers the side plate, half of which has doors on both sides of the cabinet. |
Inset No cap, also called big bend, big arm. | Door panel don’t covers the side panel The door is not covered by the cabinet door, and the cabinet door is inside the cabinet. |
We keep on to establish and style and design outstanding top quality goods for both our outdated and new prospects and realize a win-win prospect for our clientele likewise as us for 360 Degree Opening Bts75V Glass Door Floor Spring / Floor Hinge. Our main focus is always on customer satisfaction, and we follow sound business policies and transparent transactions. We also conduct a variety of quality checks of our products before being delivered to our clients. In the future, we will try to create world-renowned brand products relying on our own strong technical force and sophisticated equipment.
