180 Degree Concealed Hinges: Ideal Angle Cabinet Hinge for Doors
Type: Slide-on special-angle hinge (tow-way)
Opening angle: 45°
Diameter of hinge cup: 35mm
Finish: Nickel plated
Main material: Cold-rolled steel
Our company's processes are complete and legal, and our Three-fold Ball Bearing Slides, Hydraulic Gas Spring For Bathroom Cabinet, Furniture Slide is high quality and efficient at a reasonable price that has high buyback rate! Since the establishment of our company, we have always followed the world's advanced production level and continued to innovate. With the support and care of new and old customers, our products are exported to domestic and foreign markets. We have been looking for long-term business partnerships, and ensure our suppliers that they will undoubtedly benefit in both short and long run. We will further play our advantages, improve production efficiency and provide high-quality and efficient services for customers at home and abroad.
Type | Slide-on special-angle hinge (tow-way) |
Opening angle | 45° |
Diameter of hinge cup | 35mm |
Finish | Nickel plated |
Main material | Cold-rolled steel |
Cover space adjustment | 0-5mm |
The depth adjustment | -2mm/ +3.5mm |
Base adjustment (up/down) | -2mm/ +2mm |
Articulation cup altitude | 11.3mm |
Door drilling size | 3-7mm |
Door thickness | 14-20mm |
Testing | SGS test |
PRODUCT DETAILS

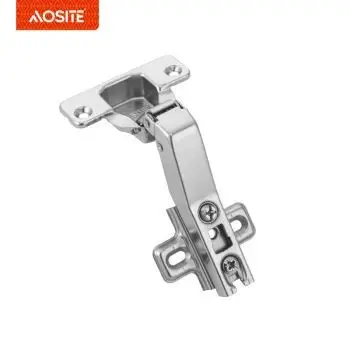

BT201 Slide On Special Angle Hinge (Two Way) 90°/45°
Adjustng the door front/ back The size of the gap is regulated by screws. | Adjusting cover of door Left / right deviation screws adjust 0-5 mm. | ||
AOSITE logo A clear AOSITE anti-counterfeit LOGO is found in the plastic cup. | Adjusting cover of door Left / right deviation screws adjust 0-5 mm. | ||
Hydraulic damping system Unique closed function, ultra quiet. | Booster arm Extra thick steel increase the work ability and service life. | ||
This type is self closing special angle hinge, having 30 /45/90 degree for your choice. About mounting plate we have both clip on and inseparable. Our standard Includes hinges, mounting plates. Screws and decorative cover caps are sold separately. On the structural classification, it is divided into: common and according to the place of use. The basic types are: furniture hinges can be divided into direct insertion type and self-unloading type according to different installation combinations. The difference between the two types is that when the fixing screw of the hinge base is twisted, the fixed type cannot release the hinge arm part, while the self-unloading type can release the hinge arm separately. Among them, the self-unloading type can be divided into sliding type and clamping type. The sliding type can release the hinge arm effect by loosening the screw on the hinge arm, while the clamping type can release the hinge arm more easily by hand. |
OUR SERVICE 1. OEM/ODM 2. Sample Order 3. Agency service 4. After-sales service 5. Agency market protection 6. 7X24 one-to-one customer service 7. Factory Tour 8. Exhibition subsidy 9. VIP customer shuttle 10. Material support (Layout design, display board, electronic picture album, poster) |
Our company adheres to the development direction of 'industrialization' and strives to become a well-known 3D Cabinet Angle Concealed Hinges for Doors 180 Degree Concealed Hinge supplier at home and abroad. We are always waiting for your visit and guidance! Through the training of talents and other incentive measures, we hope to see them more effectively create greater value for the company's interests. Our product styles are diversified, and product categories are digitized.
