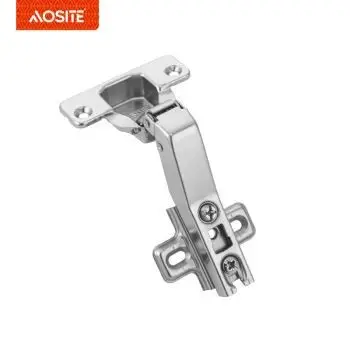

Soft Closing 45° Angle Cabinet Hinge - Furniture Hardware Manufacturer
Type: Slide-on special-angle hinge (tow-way)
Opening angle: 45°
Diameter of hinge cup: 35mm
Finish: Nickel plated
Main material: Cold-rolled steel
We always take 'quality as the core and customer satisfaction as the goal' as the company's guiding principle and create high-quality Noble Classical Handle, Three-fold Ball Bearing Slides, Drawer Slide. We will continue to improve ourselves while bringing competitive products and services to customers. Our company has won the recognition and praise of our customers with advanced technology, high-quality products and thoughtful service and laid a good foundation for our company to go to the world. We quickly respond to customers' after-sales needs or complaints, focusing on customer experience and satisfaction.
Type | Slide-on special-angle hinge (tow-way) |
Opening angle | 45° |
Diameter of hinge cup | 35mm |
Finish | Nickel plated |
Main material | Cold-rolled steel |
Cover space adjustment | 0-5mm |
The depth adjustment | -2mm/ +3.5mm |
Base adjustment (up/down) | -2mm/ +2mm |
Articulation cup altitude | 11.3mm |
Door drilling size | 3-7mm |
Door thickness | 14-20mm |
Testing | SGS test |
PRODUCT DETAILS
BT201 Slide On Special Angle Hinge (Two Way) 90°/45°
Adjustng the door front/ back The size of the gap is regulated by screws. | Adjusting cover of door Left / right deviation screws adjust 0-5 mm. | ||
AOSITE logo A clear AOSITE anti-counterfeit LOGO is found in the plastic cup. | Adjusting cover of door Left / right deviation screws adjust 0-5 mm. | ||
Hydraulic damping system Unique closed function, ultra quiet. | Booster arm Extra thick steel increase the work ability and service life. | ||
This type is self closing special angle hinge, having 30 /45/90 degree for your choice. About mounting plate we have both clip on and inseparable. Our standard Includes hinges, mounting plates. Screws and decorative cover caps are sold separately. On the structural classification, it is divided into: common and according to the place of use. The basic types are: furniture hinges can be divided into direct insertion type and self-unloading type according to different installation combinations. The difference between the two types is that when the fixing screw of the hinge base is twisted, the fixed type cannot release the hinge arm part, while the self-unloading type can release the hinge arm separately. Among them, the self-unloading type can be divided into sliding type and clamping type. The sliding type can release the hinge arm effect by loosening the screw on the hinge arm, while the clamping type can release the hinge arm more easily by hand. |
OUR SERVICE 1. OEM/ODM 2. Sample Order 3. Agency service 4. After-sales service 5. Agency market protection 6. 7X24 one-to-one customer service 7. Factory Tour 8. Exhibition subsidy 9. VIP customer shuttle 10. Material support (Layout design, display board, electronic picture album, poster) |
Each of our 45 Degree Angle Cabinet Hinge Soft Closing Hinge has been carefully manufactured and inspected in strict compliance with quality standards to make sure they are delivered to customers with the best quality. Our company has advanced equipment, exquisite technology and strong technical force, our products implement strict scientific management and perfect inspection system, we guarantee to provide customers with high-quality products. Market-oriented and customer-oriented are what we now have been being immediately after.
