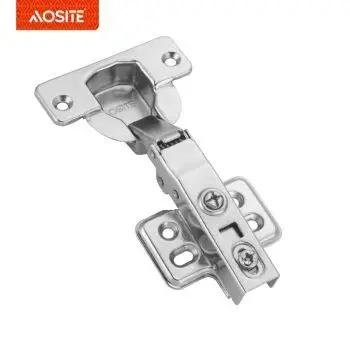

Inseparable Hydraulic Damping Hinge: Advanced Cabinet Door Solution from Furniture Hardware Manufacturers
Type: Inseparable hydraulic damping hinge 40mm cup
Opening angle: 100°
Diameter of hinge cup: 35mm
Scope: Aluminum, Frame door
Pipe Finish: Nickel plated
Main material: Cold-rolled steel
Our products are broadly regarded and reliable by end users and can meet up with constantly transforming financial and social requires of Us Short Arm Hinge, Cabinet Hinges, Crystal Knobs. Our company has reliable production testing equipment and advanced management to ensure that the product quality is stable and meets the standards. We sincerely welcome friends from all walks of life to visit and cooperate! We pursue a 'people-oriented, meticulous manufacturing, brainstorm, construct brilliant' organization.
|
Type |
Inseparable hydraulic damping hinge 40mm cup |
|
Opening angle |
100° |
|
Diameter of hinge cup |
35mm |
|
Scope |
Aluminum, Frame door |
|
Pipe Finish |
Nickel plated |
|
Main material |
Cold-rolled steel |
|
Cover space adjustment |
0-5mm |
|
The depth adjustment |
-2mm/+3mm |
|
Base adjustment (up/down) |
-2mm/+2mm |
|
Articulation cup altitude |
12.5mm |
|
Door drilling size |
1-9mm |
|
Door thickness |
16-27mm |
PRODUCT DETAILS
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
H=Height of mounting plate D=Required overlay on the side pane K=Distance between door edge and drilling holes on hinge cup A=Gap between door and side panel X=Gap between mounting plate and side panel |
Refer to the following formula to choose the arm of hinge, if you want to solve the problem, we must know "K" value, that's the distance drilling holes on the door and "H" value which is the height of mounting plate. |
AGENCY SERVICE
Aosite Hardware has been committed to promoting and promoting exchanges between distributors, improving the quality of service to distributors and agents.
Helping distributors to open up local markets, enhancing the penetration and market share of Aosite products in the local market, and gradually establishing an orderly regional marketing system, leading distributors to become stronger and bigger together, opening a new era of win-win cooperation.
Our company has many years of rich practical experience, we always provide customers with the best quality A01 Ony Way Cabinet Door Inseparable Hydraulic Damping Hinge and the most timely after-sales service. Our company adheres to the principle of honest management, and always regards credibility as the foundation of enterprise survival and development. In the course of business, we are brave to innovate, continue to accept challenges, and join hands with partners to create a win-win situation. We strengthen the alliance, collaboration, reinvestment and joint development overseas.
