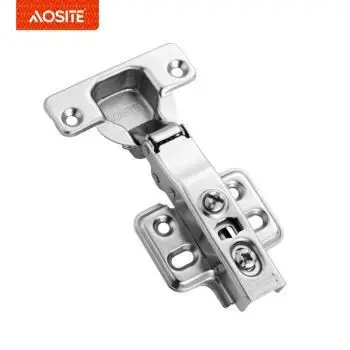

Soft Close Hydraulic Hinge: Adjustable Steel Kitchen Cabinet Door Damper Hinge 1
Soft Close Hydraulic Hinge: Adjustable Steel Kitchen Cabinet Door Damper Hinge 1

Soft Close Hydraulic Hinge: Adjustable Steel Kitchen Cabinet Door Damper Hinge

Type: Inseparable hydraulic damping hinge
Opening angle: 100°
Diameter of hinge cup: 35mm
Scope: wood cabinet door
Pipe Finish: Nickel plated
Main material: Cold-rolled steel

Inquiry

It will bring you not only the superior quality solution and huge profit, but the most significant should be to occupy the endless market for Furniture Gas Lift, Kitchen Hinge, Gas Lift. We continue to optimize human resources, strictly conduct company management, improve product quality, strive to open up the market, and increase R&D investment so that our company can achieve sustainable and rapid development. The role of corporate culture is to allow a group of people from different places to pursue the same dream together through the refinement and dissemination of corporate values.

Soft Close Hydraulic Hinge: Adjustable Steel Kitchen Cabinet Door Damper Hinge 2

Soft Close Hydraulic Hinge: Adjustable Steel Kitchen Cabinet Door Damper Hinge 3

Soft Close Hydraulic Hinge: Adjustable Steel Kitchen Cabinet Door Damper Hinge 4

Type

Inseparable hydraulic damping hinge

Opening angle

100°

Diameter of hinge cup

35mm

Scope

wood cabinet door

Pipe Finish

Nickel plated

Main material

Cold-rolled steel

Cover space adjustment

0-5mm

The depth adjustment

-2mm/+3.5mm

Base adjustment (up/down)

-2mm/+2mm

Articulation cup altitude

12mm

Door drilling size

3-7mm

Door thickness

16-20mm


PRODUCT DETAILS

Soft Close Hydraulic Hinge: Adjustable Steel Kitchen Cabinet Door Damper Hinge 5





TWO-DIMENSIONAL SCEW


The adjustable screw is used for distance adjustment,so that both sides of the cabinet door

can be more suitable.

Soft Close Hydraulic Hinge: Adjustable Steel Kitchen Cabinet Door Damper Hinge 6 Soft Close Hydraulic Hinge: Adjustable Steel Kitchen Cabinet Door Damper Hinge 7
Soft Close Hydraulic Hinge: Adjustable Steel Kitchen Cabinet Door Damper Hinge 8 Soft Close Hydraulic Hinge: Adjustable Steel Kitchen Cabinet Door Damper Hinge 9
Soft Close Hydraulic Hinge: Adjustable Steel Kitchen Cabinet Door Damper Hinge 10 Soft Close Hydraulic Hinge: Adjustable Steel Kitchen Cabinet Door Damper Hinge 11

Screw

General hinge comes with two screws, which belong to adjusting screws, upper and lower adjusting screws, front and rear adjusting screws. The new hinge also has left and right adjusting screws, such as Aosite three-dimensional adjusting hinge.

Use a screwdriver to adjust the upper and lower adjusting screws three to four times with a little force, and then take down the screws to check whether the teeth of the hinge arm are damaged. If the factory does not have enough precision in tapping teeth, it is easy to slip the thread, or it cannot be screwed.

*Small size, great ability and steadiness are the real skills.

The connecting piece is made of high-strength steel, and the two hinges of a single door bear 30KG vertically.

*Durable, solid quality is still as good as new.

Product test life > 80,000 times

Soft Close Hydraulic Hinge: Adjustable Steel Kitchen Cabinet Door Damper Hinge 12

Soft Close Hydraulic Hinge: Adjustable Steel Kitchen Cabinet Door Damper Hinge 13

Soft Close Hydraulic Hinge: Adjustable Steel Kitchen Cabinet Door Damper Hinge 14

Soft Close Hydraulic Hinge: Adjustable Steel Kitchen Cabinet Door Damper Hinge 15

Soft Close Hydraulic Hinge: Adjustable Steel Kitchen Cabinet Door Damper Hinge 16

Soft Close Hydraulic Hinge: Adjustable Steel Kitchen Cabinet Door Damper Hinge 17

Soft Close Hydraulic Hinge: Adjustable Steel Kitchen Cabinet Door Damper Hinge 18

Soft Close Hydraulic Hinge: Adjustable Steel Kitchen Cabinet Door Damper Hinge 19

Soft Close Hydraulic Hinge: Adjustable Steel Kitchen Cabinet Door Damper Hinge 20

Soft Close Hydraulic Hinge: Adjustable Steel Kitchen Cabinet Door Damper Hinge 21

Soft Close Hydraulic Hinge: Adjustable Steel Kitchen Cabinet Door Damper Hinge 22


Based on the domestic market, we serve global customers, deepen the industrial chain, optimize industrial services, and strive to become a world-class glass B02A Soft Close Hinge Adjustable Hydraulic Steel Hinges Kitchen Cabinet Door Hinge Damper Hinges manufacturer. We have a strict and complete product testing system and testing equipment, and all production materials are strictly in and out. Our localized and worldwide service network ensures comprehensive, accurate and timely service delivery and we will share global resources with you.
