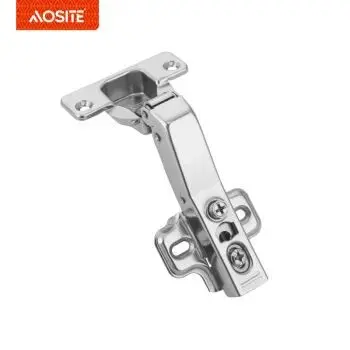

High-Quality 45° Slide-On Hinge: Special Angle, Two-Way - Furniture Hardware Manufacturer
Type: Clip-on Special-angel Hydrulic Damping Hinge
Opening angle: 45°
Diameter of hinge cup: 35mm
Pipe Finish: Nickel plated
Main material: Cold-rolled steel
With thw rigid management, strong economy, exquisite technology, advanced craft, excellent quality and perfect service, our company develops with a steady pace in the stainless steel door handle, Clip On Shifting Hinge, Cabinet Handle field. We adhere to the tenet of quality-oriented and honesty, and continue to introduce advanced technology and management methods on the basis of extending our own technology. Regardless of your needs, we will wholeheartedly provide you with professional solutions and quality services to improve your business value and efficiency. Our goal is to meet the needs of our customers and provide first-class pre-sale and after-sales service for new and old customers, and take this as a starting point to develop towards a higher and broader market.
Type | Clip-on Special-angel Hydrulic Damping Hinge |
Opening angle | 45° |
Diameter of hinge cup | 35mm |
Pipe Finish | Nickel plated |
Main material | Cold-rolled steel |
Cover space adjustment | 0-5mm |
The depth adjustment | -2mm/+3.5mm |
Base adjustment(up/down) | -2mm/+2mm |
Articulation cup altitude | 11.3mm |
Door drilling size | 3-7mm |
Door thickness | 14-20mm |
PRODUCT DETAILS
TWO-DIMENSIONAL SCREW The adjustable screw is used for distance adjustment,so that both sides of the cabinet door can be more suitable. | EXTRA THICK STEEL SHEET The thickness of hinge from us is double than current market,which can strengthen the service life of hinge. |
SUPERIOR CONNECTOR Adopting with high quality metal connector,not easy to damage. | HYDRAULIC CYLINDER Hydraulic buffer makes a better effect of a quiet environment. |
| BOOSTER ARM Extra thick steel sheet increases the work ability and service life. | AOSITE LOGO Clearly logo printed,certified the guarantee of our products. |
The difference between agood hinge and a bad hinge Open the hinge at 95 degrees and press both sides of the hinge with your hands. Observe that the supporting spring leaf is not deformed or broken. It is a very strong product with qualified quality. Poor quality hinges have short service life and are easy to fall off. For example, cabinet doors and hanging cabinets fall off due to poor hinge quality. |
INSTALLATION DIAGRAM
According to the installation data,drilling at the proper position of the door panel | Installing the hinge cup. | |
According to the installation data, mounting base to connect the cabinet door. | Adjust back screw to adapt door gap. | Check opening and closing. |
TRANSACTION PROCESS 1. Inquiry 2. Understand customer needs 3. Provide solutions 4. Samples 5. Packaging Design 6. Pricing 7. Trial orders/orders 8. Prepaid 30% deposit 9. Arrange production 10. Settlement balance 70% 11. Loading |
With our advanced equipment and exquisite workmanship, we focus on the development and production of BT201-45° Slide-on special-angle High quality hinge two way through continuous practice and innovation. Our company is determined to provide high-quality technology, mature products and high-quality after-sales service to customers to achieve the goal of win-win for customers, enterprises and society. Our products are sold to the Middle East, Southeast Asia, Africa, Europe, America and other regions, and are favorably appraised by clients.
