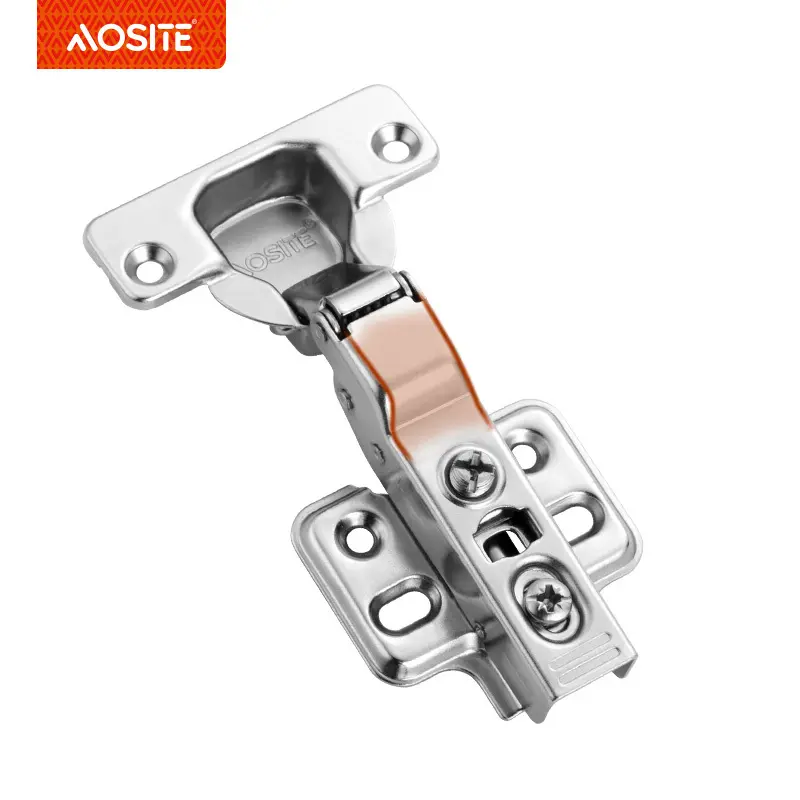

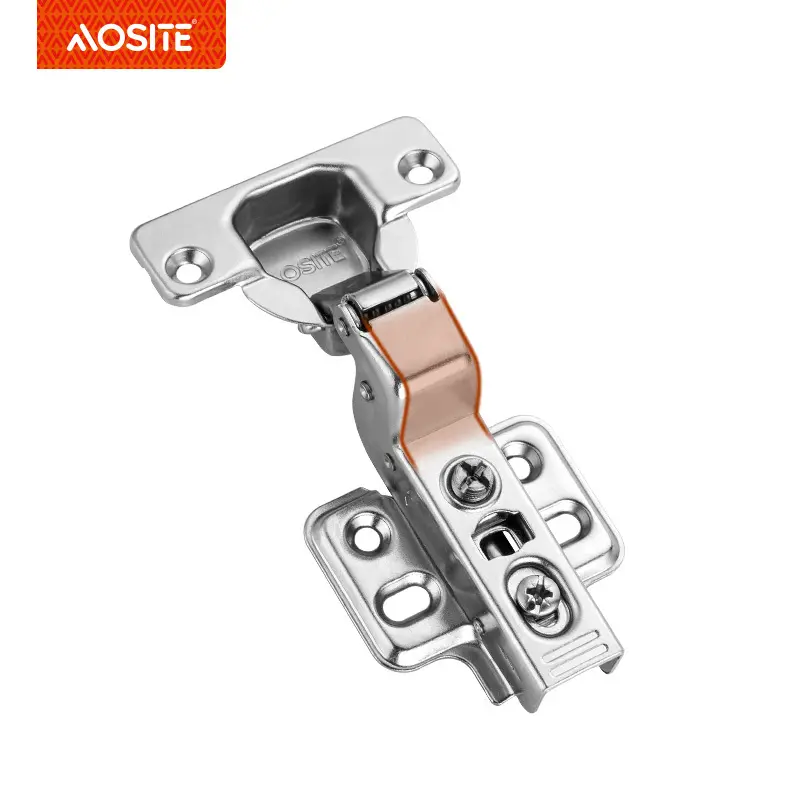

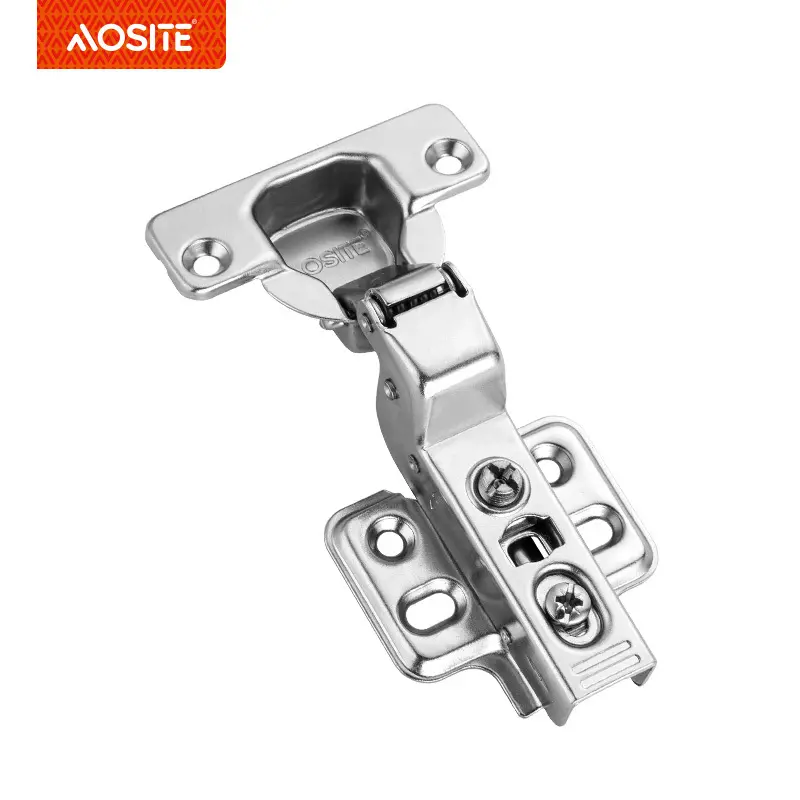

Customizable 360 Degree Rotary Hinge with Free Stop Damping and Swivel Torque

We sincerely design and customized all kinds of Hydraulic Hinge, drawer handles, cabinet door handle for our customers. Warmly welcome the majority of manufacturers to establish long-term partnership with us, we will sincerely for you to provide the best quality products and warm and thoughtful service. Our day-to-day business is shaped by a relationship based on trust with our customers and suppliers. With our modern machinery and the use of high quality raw materials, we are able to meet the high standards required by our customers. Our market share of our products has greatly increased yearly. Our next goal is to exceed the expectations of every client by offering outstanding customer service, increased flexibility and greater value.

Good quality hinges should look like this:

1.Feel

Hinges with different advantages and disadvantages will have obviously different handfeel when in use. Hinges with excellent quality have soft strength when opening the cabinet door, and will rebound automatically when closed to 15 degrees, with very uniform resilience. You can compare multiple switch cabinet doors when selecting and purchasing to experience the hand feeling.

2.screws

Use a screwdriver to adjust the upper and lower adjusting screws three to four times with a little force, and then take down the screws to check whether the teeth of the hinge arm are damaged. If the factory does not have enough precision in tapping teeth, it is easy to slip the thread, or it cannot be screwed.

3.assembly

High quality hinge assembly and details are in place. It is usually formed by one punch to form smooth lines. The socket needle treatment is also smooth and compact, so as not to scratch hands. The inferior hinge is the opposite.

4.switching performance

Hinges act as switches. The key is the hydraulic cylinder and spring connection of the hinge. Test Method: Close the hinge gently to see if its speed is smooth. Too fast or too slow may be hydraulic damping or spring quality problems.

Our company strives to provide the best overall solution and the best quality service for enterprises in the market environment of labor shortage and quickly improve the quality and production efficiency of Customized 360 Degree Free Stop Damping Rotary Damper Hinges/Swivel Torque Hinge. We recognize the need to deepen the construction of science and technology innovation system and stimulate the enthusiasm of scientific and technical personnel. Success belongs to the past, honor is only history. Our company will continue to pursue better quality in business management, education and training, product introduction, sales and after-sales service.

PRODUCT DETAILS

	Two-dimensional screws adjusting the covers of the door
48mm cup hole distance
	Double nickel plated surface finished
Superior connectors

PRODUCT DETAILS

HOW TO CHOOSE
YOUR DOOR OVERLAYS

	Full Overlay   This is the most common construction technique for cabinet doors.  You will be able to identify if your hinge is Full Overlay : The Hinge Arm is relatively straight with no "hump" or "crank" The Cabinet Door overlaps close to 100% on the cabinet side panel The Cabinet Door does not share a side panel with any other cabinet door
Half Overlay   Much less common but used where space saving or material cost concerns are most important.  This technique uses the same side panel for two cabinets. To achieve this you would need a hinge that provides these features: The Hinge Arm starts to bend inwards with a "crank" that offsets the door The Cabinet Door only overlaps a bit less than 50% of the cabinet side panel The Cabinet Door does not share a side panel with any other cabinet door
	Inset/Embed   This is a technique of cabinet door production that allows the door to sit inside the cabinet box.  You will be able to identify that your hinges are Inset if: The Hinge Arm is quite noticeably bent inwards or highly "cranked" The Cabinet Door does not overlap with the side panel but sits inside

   PRODUCT INSTALLATION

1. According to the installation data, drilling at the proper position of the door panel.

2. Installing the hinge cup.

3. According to the installation data, mounting base to connect the cabinet door.

4. Adjust back screw to adapt door gap, check opening and closing.

5. Check opening and closing.

PRODUCT DETAILS

Solid Bearing 2 balls in a group opening smooth steadily, which can reduce the resistance.	Anti-Collision Rubber Super strong anti-collision rubber, keeping safety in opening and closing.
Proper Splitted Fastener Install and remove drawers through fastener, which is a bridge between slide and drawer.	Three Sections Extension Full extension improve the utilization of drawer space.
Extra Thickness Material Extra thickness steel is more durable and strong loading.	AOSITE Logo Clear logo printed, certified products giarantee from AOSITE.

When the door of the cupboard is opened or closed, the most important parts are hinges and air supports. Most users don't know about the air supports. Today, I'd like to introduce the working principle of cupboard air support.

1、 What is cabinet air support

Cabinet air support is used for cabinet component movement, lifting, support, gravity balance and mechanical spring instead of sophisticated equipment. It has been widely used in woodworking machinery. Pneumatic series gas spring is driven by high pressure inert gas, the supporting force is constant in the whole working stroke, and has a buffer mechanism to avoid the impact in place, which is the biggest feature superior to ordinary spring, and has the advantages of convenient installation, safe use and no maintenance.

2、 How it works

The iron pipe is filled with high pressure gas, and there is a through hole on the moving piston to ensure that the pressure in the whole iron pipe will not change with the movement of the piston. The force of the pneumatic support rod is mainly the pressure difference between the iron pipe and the external atmospheric pressure acting on the cross section of the piston rod. The pneumatic support rod is driven by high pressure inert gas, and the support force is stable in the whole working stroke. It also has a buffer mechanism to avoid the impact in place, which is the biggest feature superior to the ordinary support rod. And it has the advantages of convenient installation, safe use and no maintenance. Since the air pressure in the iron pipe is constant and the cross section of the piston rod is fixed, the force of the pneumatic support rod remains stable throughout the stroke.

3、 Shopping skills

Product appearance: the paint color and greasy level of the air support cylinder end of the cabinet, such as some poor quality air support manufacturers ignore these small problems. Professional air support manufacturers pay attention to every detail of the product, so they can pay attention to it when they choose. Whether there are pits or scratches on the appearance of the air support rod will damage the sealing device inside the cylinder when it is used, so that the air support will leak after a period of time, resulting in that the air support can not be used without pressure.

PRODUCT DETAILS

PRODUCT ITEM NO.

AND USAGE

C15-301 Usage: turn on the steam-driven support Force Specifications: 50N-150N Application:make the right turn on the weight of wooden/aluminum frame doors reveal a steady rate slowly upward.	C15-302  Uses: Hydraulic next turn support  Application: can the next turn wooden/aluminum   door frame slow steady downward turn.
C15-303 Usage: turn on the steam-driven support of any stop Force Specifications: 50N-120N Application:make the right turn on the weight of wooden/ aluminum frame door 30°-90° between the opening angle of any intention to stay.	C15-304 Uses: Hydraulic Flip Support Force Specifications: 50N-150N Application: make the right turn on the weight of wooden/aluminum frame door slowly tilting upward, and 60°-90° in the angle created between the opening buffer.

Product name: Free stop gas spring

Thickness of panel: 16/19/22/26/28mm

Panel 3D adjustment: +2mm

Height of cabinet: 330-500mm

Width of cabinet: 600-1200mm

Material: Steel/plastic

Finish: Nickel plating

Applicable scope: Kitchen hardware

Style: Modern

Product features

1. Perfect design for decorative cover

Achieve beautiful installation design effect, save space with fusion cabinet inner wall

2. Clip-on design

Panels can be quick assemble & disassemble

3. Free stop

The cabinet door can stay at the unfolding angle freely from 30 to 90 degrees.

4. Silent mechanical design

The damping buffer makes the gas spring gently and silently flip up

Advantages

Advanced equipment, Superb Craftsmanship, High-Quality, considerate after-sales Service, Worldwide Recognition & Trust.

Quality-Reliable Promise for you

Multiple load-Bearing tests, 50,000 times trial tests, and high-strength anti-corrosion tests.

Standard-make good to be better

ISO9001 Quality Management System Authorization, Swiss SGS Quality Testing and CE Certification.

Service-Promising Value You Can Get

24-hour response mechanism

1-to-1 all-round professional service

INNOVATION-EMBRACE CHANGES

Persist in the innovation leading, the development

FAQS:

1. What is your factory product range?

Hinges, gas spring, ball bearing slide, under-mount drawer slide, metal drawer box, handle.

2. Do you provide samples? Is it free or extra?

Yes, we provide free samples.

3. How long does the normal delivery time take?

About 45 days.
