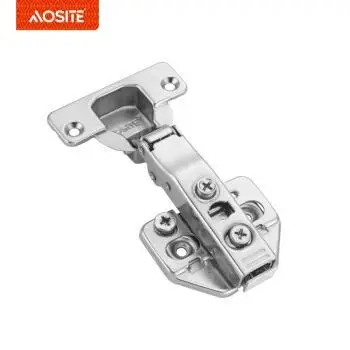

Hydraulic Automatic Door Hinge with Buffer Function for Wooden Frames

Type: Clip on hydraulic damping hinge
Opening angle: 100°
Diameter of hinge cup: 35mm
Finish: Nickel plated
Main material: Cold-rolled steel

Inquiry

We want to develop into a Soft-closing Overlay Hinge, Mini Glass Hinge, Damping Steel Ball Slideway production, R&D and sales manufacturer with first-class core technology and international influence. We always insist on the principle of 'Quality and service are the life of the product'. Our company has a number of high-quality management team and high-level technical personnel and an excellent construction team with hard work and rich experience.

Hydraulic Automatic Door Hinge with Buffer Function for Wooden Frames 2

Hydraulic Automatic Door Hinge with Buffer Function for Wooden Frames 3

Hydraulic Automatic Door Hinge with Buffer Function for Wooden Frames 4

Type	Clip on hydraulic damping hinge
Opening angle	100°
Diameter of hinge cup	35mm
Finish	Nickel plated
Main material	Cold-rolled steel
Cover space adjustment	0-5mm
The depth adjustment	-2mm/+2mm
Base adjustment (up/down)	-2mm/+2mm
Articulation cup altitude	12mm
Door drilling size	3-7mm
Door thickness	14-20mm

No matter how your door overlay are, AOSITE hinges series always can provides reasonable solutions for each application.

Automatic buffer closing is one way hydraulic damping hinges’ features. This model A08F is Clip on 3D adjustable hinges, which can more convenient to adjust the connecting door and hinge. Our standards Includes hinges, mounting plates. Screws and decorative cover caps are sold separately.

PRODUCT DETAILS

HOW TO CHOOSE

YOUR DOOR OVERLAYS

Hydraulic Automatic Door Hinge with Buffer Function for Wooden Frames 13

Hydraulic Automatic Door Hinge with Buffer Function for Wooden Frames 14

Hydraulic Automatic Door Hinge with Buffer Function for Wooden Frames 15

H=Height of mounting plate

D=Required overlay on the side pane

K=Distance between door edge and drilling holes on

hinge cup

A=Gap between door and side panel

X=Gap between mounting plate and side panel

Refer to the following formula to choose the arm of hinge, if you want to solve the problem, we must know "K" value, that's the distance drilling holes on the door and "H" value which is the height of mounting plate.

Hydraulic Automatic Door Hinge with Buffer Function for Wooden Frames 16

Hydraulic Automatic Door Hinge with Buffer Function for Wooden Frames 17

Hydraulic Automatic Door Hinge with Buffer Function for Wooden Frames 18

Hydraulic Automatic Door Hinge with Buffer Function for Wooden Frames 19

Hydraulic Automatic Door Hinge with Buffer Function for Wooden Frames 20

Hydraulic Automatic Door Hinge with Buffer Function for Wooden Frames 21

Hydraulic Automatic Door Hinge with Buffer Function for Wooden Frames 22

Hydraulic Automatic Door Hinge with Buffer Function for Wooden Frames 23

Hydraulic Automatic Door Hinge with Buffer Function for Wooden Frames 24

Hydraulic Automatic Door Hinge with Buffer Function for Wooden Frames 25

Hydraulic Automatic Door Hinge with Buffer Function for Wooden Frames 26

This company constantly surpasses itself, improves itself, and strives to become the leader in the E6012 Buffer Function Door Closer Hydraulic Automatic Door Hinges for Wooden Frame industry. Honesty and trustworthiness are the foundation of our survival. Diligence and initiative are the first conditions for our development and growth, and innovation and cooperation are our long-term development strategies. Welcome customers to negotiate business. At Present, our products have been exported to all over the world.
