High-Quality European 3D Door Hinges: Invisible Design
Type: Inseparable hydraulic damping hinge
Opening angle: 100°
Diameter of hinge cup: 35mm
Pipe Finish: Nickel plated
Main material: Cold-rolled steel
We have established a comprehensive pre-sales and after-sales service standards for our Handles Furniture, Corner Cabinet Hinges, Drawer Slide Heavy Duty. With excellent service quality, professional technical strength, and skilled team, we guarantee 100% product qualification rate. We are adhering to the positive, honest and pragmatic entrepreneurial spirit, and constantly improve our brand value. Our company has established a perfect after-sales service system to ensure that we can provide strong technical support and considerate and quick after-sales service for customers. We have state-of-the-art equipment.
Type | Inseparable hydraulic damping hinge |
Opening angle | 100° |
Diameter of hinge cup | 35mm |
Pipe Finish | Nickel plated |
Main material | Cold-rolled steel |
Cover space adjustment | 0-5mm |
The depth adjustment | -2mm/+3mm |
Base adjustment (up/down) | -2mm/+2mm |
Articulation cup altitude | 11.3mm |
Door drilling size | 3-7mm |
Door thickness | 14-20mm |

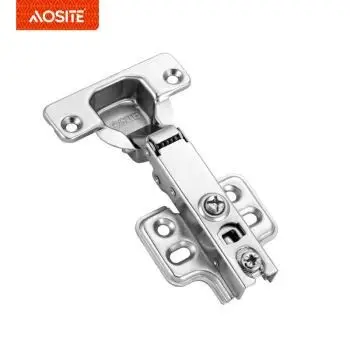

A01 INVISIBLE HINGE: Model A01 is one way inseparable hydraulic damping hinge, can automatic buffer closing. |
PRODUCT DETAILS
HOW TO CHOOSE YOUR DOOR OVERLAYS
Full Overlay This is the most common construction technique for cabinet doors. You will be able to identify if your hinge is Full overlay. The hinge arm is relatively straight with no "hump" or "crank". The Cabinet Door overlaps close to 100% on the cabinet side panel. The Cabinet Door does not share a side panel with any other cabinet door. | |
Half Overlay Much less common but used where space saving or material cost concerns are most important. This technique uses the same side panel for two cabinets. To achieve this you would need a hinge that provides these features. The hinge arm starts to bend inwards with a "crank" that offsets the door. The Cabinet Door only overlaps a bit less than 50% of the cabinet side panel. The Cabinet Door does not share a side panel with any other cabinet door. | |
Inset/Embed This is a technique of cabinet door production that allows the door to sit inside the cabinet box. You will be able to identify that your hinges are Inset if: The Hinge Arm is quite noticeably bent inwards or highly cranked. The Cabinet Door does not overlap with the side panel but sits inside. |
We are committed to becoming a well-known European 3D Invisible Hinges for Door solution provider and manufacturer of recognized by international customers. We constantly improve the internal supply chain information processing platform to ensure that orders and customer demand are handled accurately and efficiently. In the face of increasingly fierce competition and challenges, our company has condensed a number of modern talents with advanced ideas due to our inherent charm.
