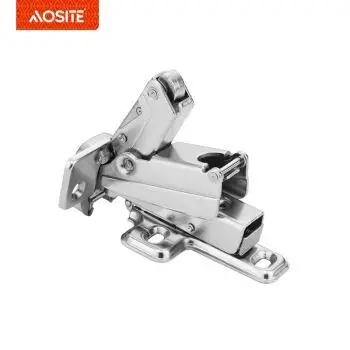

European Double-Sided Screen Hinge: High-Quality, 360 Degree Rotation - Furniture Hardware Manufacturer
Type: Clip-on Special-angel Hydraulic Damping Hinge
Opening angle: 165°
Diameter of hinge cup: 35mm
Scope: Cabinets, wood
Finish: Nickel plated
Main material: Cold-rolled steel
The quality control of our Furniture Drawer Slide, Handles Furniture, Rebound Steel Ball Slide Rail includes the entire process of receiving logistics, warehousing, production process, packaging, delivery, and after-sales. High quality Initial, and Buyer Supreme is our guideline to offer the ideal assistance to our shoppers. And we are able to enable on the lookout for any products with the customers' needs. We rely on technological innovation and humanistic spirit as the connotation to implement the green development strategy. We enjoy a high status among consumers and have established long-term and stable cooperation with many retailers and agents.
|
Type |
Clip-on Special-angel Hydraulic Damping Hinge |
|
Opening angle |
165° |
|
Diameter of hinge cup |
35mm |
|
Scope |
Cabinets, wood |
|
Finish |
Nickel plated |
|
Main material |
Cold-rolled steel |
|
Cover space adjustment |
0-5mm |
|
The depth adjustment |
-2mm/ +3.5mm |
|
Base adjustment (up/down) |
-2mm/ +2mm |
|
Articulation cup altitude |
11.3mm |
|
Door drilling size |
3-7mm |
|
Door thickness |
14-20mm |
PRODUCT DETAILS
|
|
TWO-DIMENSIONAL SCREW The adjustable screw is used for distance adjustment,so that both sides of the cabinet door can be more suitable. |
|
CLIP-ON HINGE Gently pressing the button then will remove the base,avoiding damage the cabinet doors by multiple installation and remove.Clip can be more easier to install and clean. |
|
|
|
SUPERIOR CONNECTOR Adopting with high quality metal connector,not easy to damage. |
|
HYDRAULIC CYLINDER Hydraulic buffer makes a better effect of a quiet environment. |
|
INSTALLATION
|
|
||
|
According to the installation data, drilling at the proper position of the door panel. |
Installing the hinge cup. |
|
|
|
||
|
According to the installation data, mounting base to connect the cabinet door. |
Adjust back screw to adapt door gap, check opening and closing. |
Opening hole in cabinet panel, drilling hole according to the drawing.
|
|
WHO ARE WE? AOSITE always adheres to the philosophy of "Artistic Creations, Intelligence in Home Making". It is dedicated to manufacturing excellent quality hardware with originality and creating comfortable homes with wisdom, letting countless of families enjoy the convenience, comfort, and joy brought by household hardware. |
European Iron Hinge Double-Sided Hinge Screen Hinge Double Axis Double Hinge Hinge 360 Degree Screen Hinge are well received by customers for their leading design and exquisite workmanship with innovative design concept, excellent manufacturing technology and strict quality inspection process. Our company is equipped with strong R&D strength and a positive innovation atmosphere. 'Strict product quality, beyond customer expectations' is our eternal purpose and pursuit. We believe that to create value for our peers is to achieve our own career.
