High-Quality European Hinges for Cupboards - Direct from Furniture Hardware Manufacturers

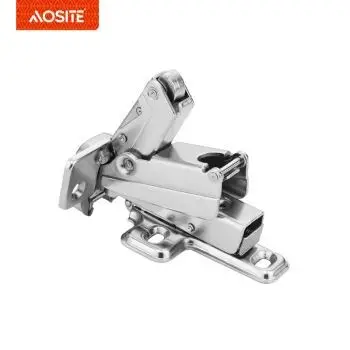

Type: Clip-on Special-angel Hydraulic Damping Hinge
Opening angle: 165°
Diameter of hinge cup: 35mm
Scope: Cabinets, wood
Finish: Nickel plated
Main material: Cold-rolled steel
With our professional knowledge and commitment to the market, we position ourselves as a trusted business partner of our customers to meet customer needs by providing reliable and innovative Furniture Tatami Elevator, Furniture Damping Hinge, Furniture Gas Lift. We're confident that we are going to possess a vibrant prospect and to be distributed all over the world within the years to come. We will then deliver our greatest price ranges to you. We need to add new talents to provide us with good ideas and help us make changes, thus further grow our company.
|
Type |
Clip-on Special-angel Hydraulic Damping Hinge |
|
Opening angle |
165° |
|
Diameter of hinge cup |
35mm |
|
Scope |
Cabinets, wood |
|
Finish |
Nickel plated |
|
Main material |
Cold-rolled steel |
|
Cover space adjustment |
0-5mm |
|
The depth adjustment |
-2mm/ +3.5mm |
|
Base adjustment (up/down) |
-2mm/ +2mm |
|
Articulation cup altitude |
11.3mm |
|
Door drilling size |
3-7mm |
|
Door thickness |
14-20mm |
PRODUCT DETAILS
|
|
TWO-DIMENSIONAL SCREW The adjustable screw is used for distance adjustment,so that both sides of the cabinet door can be more suitable. |
|
CLIP-ON HINGE Gently pressing the button then will remove the base,avoiding damage the cabinet doors by multiple installation and remove.Clip can be more easier to install and clean. |
|
|
|
SUPERIOR CONNECTOR Adopting with high quality metal connector,not easy to damage. |
|
HYDRAULIC CYLINDER Hydraulic buffer makes a better effect of a quiet environment. |
|
INSTALLATION
|
|
||
|
According to the installation data, drilling at the proper position of the door panel. |
Installing the hinge cup. |
|
|
|
||
|
According to the installation data, mounting base to connect the cabinet door. |
Adjust back screw to adapt door gap, check opening and closing. |
Opening hole in cabinet panel, drilling hole according to the drawing.
|
|
WHO ARE WE? AOSITE always adheres to the philosophy of "Artistic Creations, Intelligence in Home Making". It is dedicated to manufacturing excellent quality hardware with originality and creating comfortable homes with wisdom, letting countless of families enjoy the convenience, comfort, and joy brought by household hardware. |
Through our continuous efforts, our European Style Flat Head Hinges, Cupboard Furniture Hinges breaks through the technical limitations of the industry and become a new benchmark for innovation. We pay attention to the interests of customers and try to create all sorts of opportunities to get their greatest satisfaction. It really is our obligation to satisfy your requirements and efficiently serve you.
